QFA3171D | Outside Air RH & T Sensor, 2 percent, RH: 4-20 mA T: 4-20 mA, Display | Siemens

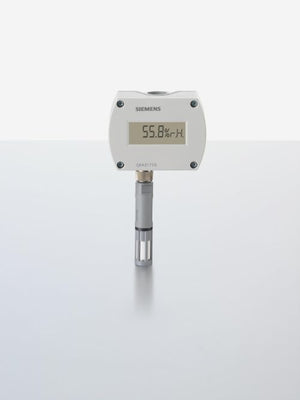

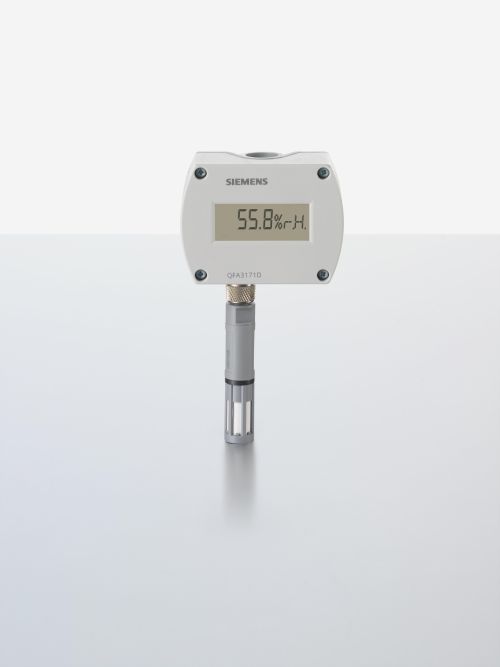

Siemens | QFA3171D
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QFA3171D
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens QFA3171D Documents

Datasheet(Room_sensor QFA31..)Datasheet(QFA3100_4100 Series RH Sensors for Critical Environments or Outdoor Use Technical Specification Sheet)Declaration of conformity(EU Declaration of Conformity QFA31xx/AQF31xx)Declaration of conformity(RCM Supplier's Declaration QPA../QPM../QFA..)Declaration of conformity(KC Certificate QFA3101. 3171. 3171D)Declaration of conformity(UK Declaration of conformity for QFA31xx/AQF31xx)Declaration of conformity(Test report MTBF for QFM... QFA..)Environmental Declaration(Room sensor for relative humidity and temperature)Mounting instruction(Room sensors for rel. Humidity / temperature for demanding requirements QFA31.. + AQF3100) More Info

Overview

Details for QFA3171D

Outside Air RH & T Sensor, 2 percent, RH: 4-20 mA T: 4-20 mA, Display

Specifications

Measurement range humidity
0…100 % r.h.
Measuring range, temperature
0…50 °C, -35…35 °C, -40…70 °C
Sensing element, temperature
Pt1000
Time constant
Humidity: 20 s, Temperature: 510 s
Signal output humidity
DC 4...20 mA
Signal output temperature
DC 4...20 mA
Operating voltage
13.5…35 VDC
Analog outputs
4-20 mA
Measuring range
Temperature: -40 to 158°F; Humidity: 0 to 100% RH
Measurement accuracy
At 15…35 °C: ±0.6 K, 23 % r.h., 0…100 % r.h.: ±2 % r.h.
Display
LCD
Dimensions (W x H x D)
80 x 144 x 39 mm
