QAP2012.150 | Cable Temperature Sensor, Platinum 1K Ohm (385 Alpha) | Siemens

Siemens | QAP2012.150

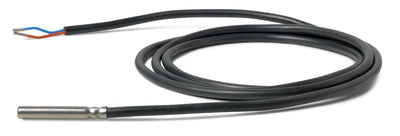

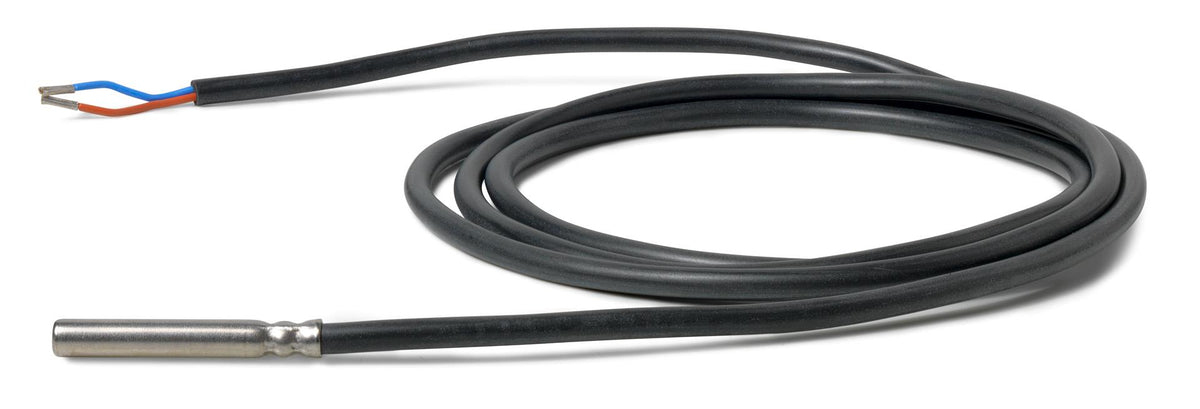

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QAP2012.150
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens QAP2012.150 Documents

Datasheet(Cable temperature sensor QAP22)Datasheet(Surface Mount Temperature Sensors Technical Specification Sheet)Declaration of conformity(EU Declaration of Conformity QAxxx (passive senors))Declaration of conformity(UKCA Declaration of Conformity Passive temperature sensors QAxxx)Declaration of conformity(Test report MTBF for QA..)Environmental Declaration(Sensors. passive QA... FGT-PT1000)Mounting instruction(Cable temperature sensor / Kabeltemperaturfühler QAP..)Other datasheet(Cable temperature sensor QAP21.2) More Info

Overview

Details for QAP2012.150

Cable Temperature Sensor, Platinum 1K Ohm (385 Alpha)

Cable Temperature Sensor with Platinum 1K Ohm (385 alpha) sensing element. The sensor cable measures five feet.

Specifications

Material, protection pocket
Stainless steel
Protection pocket
40.5 mm; 6 mm
Type of fixing
Cable tie or with accessories
Analog outputs
Pt RTD, 1k Ohm, 385a
Measuring range
-22 to 266 °F
Sensor
RTD with 5 foot cable
Measuring range, temperature
-30…130 °C
Sensing element, temperature
Pt1000
Sensing element
Pt1000
Measurement accuracy
+/-0.72°F @ 32 °F
Time constant
Without protection pocket: 20 s
Material, protection pocket
Stainless steel
Connection cable
Silicone
Cable length
1.5 m
