GKD221.1U | Damper Actuator | Spring Return | 120 VAC | On/Off | 80 lb-in | Siemens
Fire and Smoke Damper Actuator 80 lb-in 2-position control , Spring Return, 120 VAC compatible with built in Electronic Fuse Link capability. For use on UL-listed smoke control dampers and combination fire/smoke rated dampers. Designed to meet UL555S.

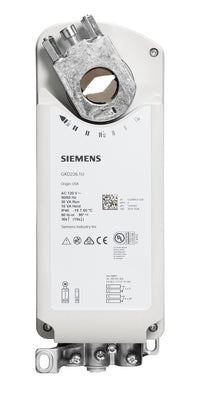

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GKD221.1U
Documents and manuals
Siemens GKD221.1U Documents
Datasheet(OpenAir GVD/GKD Electronic Damper Actuator US Listed Fire/Smoke Technical Instructions)Environmental Declaration(Damper Actuator GAP GVD Environmental Product Description)Installation instruction(OpenAir GVD_GKD Series Electronic Damper Actuator for UL Listed Fire_Smoke and Smoke Control Dampers Installation Instructions) More Info
Overview
Details for GKD221.1U
Damper Actuator | Spring Return | 120 VAC | On/Off | 80 lb-in
Specifications
- Actuator Type
- Electronic Fire and Smoke
- Actuation Style
- Rotary
- Control or Fire/Smoke Type
- Fire/Smoke Control Damper
- Electronic Fusible Link (EFL)
- YES
- Plenum or Standard Rating
- Standard
- Torque
- 80 lb-in
- Fail Safe
- Yes
- Spring return function
- Spring return function
- Control Signal
- 2-position
- Positioning time
- Run time for 90° 30s nominal, Spring return 15 s max
- Power consumption
- Running / Holding: 26 VA / 8 VA
- Ambient temperature, operation
- 0…140 ºF
- Ambient humidity, operation
- 95 % r.h.
- Angular rotation
- 95°
- Supply Voltage
- 120 VAC
- Frequency
- 50/60
- Auxiliary switch
- 0
- Cable length
- 3 ft
- Dimensions (W x H x D)
- 3.8 x 10.75 x 3.4 in
- Material, housing
- NEMA 1 / IP40, plenum-rated plastic, high temperature polymer
- Standard
- UL60730; cUL CSA 60730; CE conformity for Residential, Commercial, and Industrial environments
