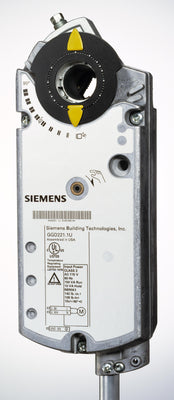

GGD226.1U | Damper Actuator | Spring Return | 120 VAC | On/Off | 142 lb-in | SW | Siemens (OBSOLETE)

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GGD226.1U

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens GGD226.1U Documents

Datasheet Installation Instructions

Overview

Details for GGD226.1U

OpenAir™ GGD Series Electric Damper Actuator, rotary, spring return, 142 lb-in (16 Nm), 120 Vac, 2-position control, 15 sec run time, auxiliary switches, Fire/Smoke

Description

The OpenAir direct-coupled, 2-position, spring return electronic damper actuators are UL listed for smoke control dampers or for combination fire/smoke rated dampers. Actuators are designed to operate reliably in smoke control systems requiring Underwriter’s Laboratories, Inc. UL555S rating up to 350°F (177°C).

Features

High-temperature rated drive system
Reversible fail-safe spring return
All metal housing
Precabled Teflon® insulated lead wires
Mechanical range adjustment
Multiple shaft couplings available; will accommodate up to 1.05-inch (26.6 mm) shafts
Fifteen second nominal open time; 15 second maximum spring return time
Models available for 24, 115, and 230 Vac
Fixed Dual End Switches models: 24 Vac to 250 Vac,24 Vdc, 6A resistive 2FLA/12 LRA SPST Fixed 5° and 85°

Specifications

Item Number	GGD226.1U
Brand	Siemens
Actuator Type	Damper
Control Input	On/Off
End Switch	Yes
Spring Return	Spring Return
Torque	142 lb-in
Type	Damper Actuator
Voltage	120 VAC
