GEB146.1U | Damper Actuator | Non-Spring Return | 24 VAC | On/Off/Floating Point | 177 lb-in | SW | Siemens

Damper actuator non-spring return, 177 lb-in, 2-position/Floating control. 24VAC/DC and dual adjustable built-in auxiliary switches . For use on control dampers

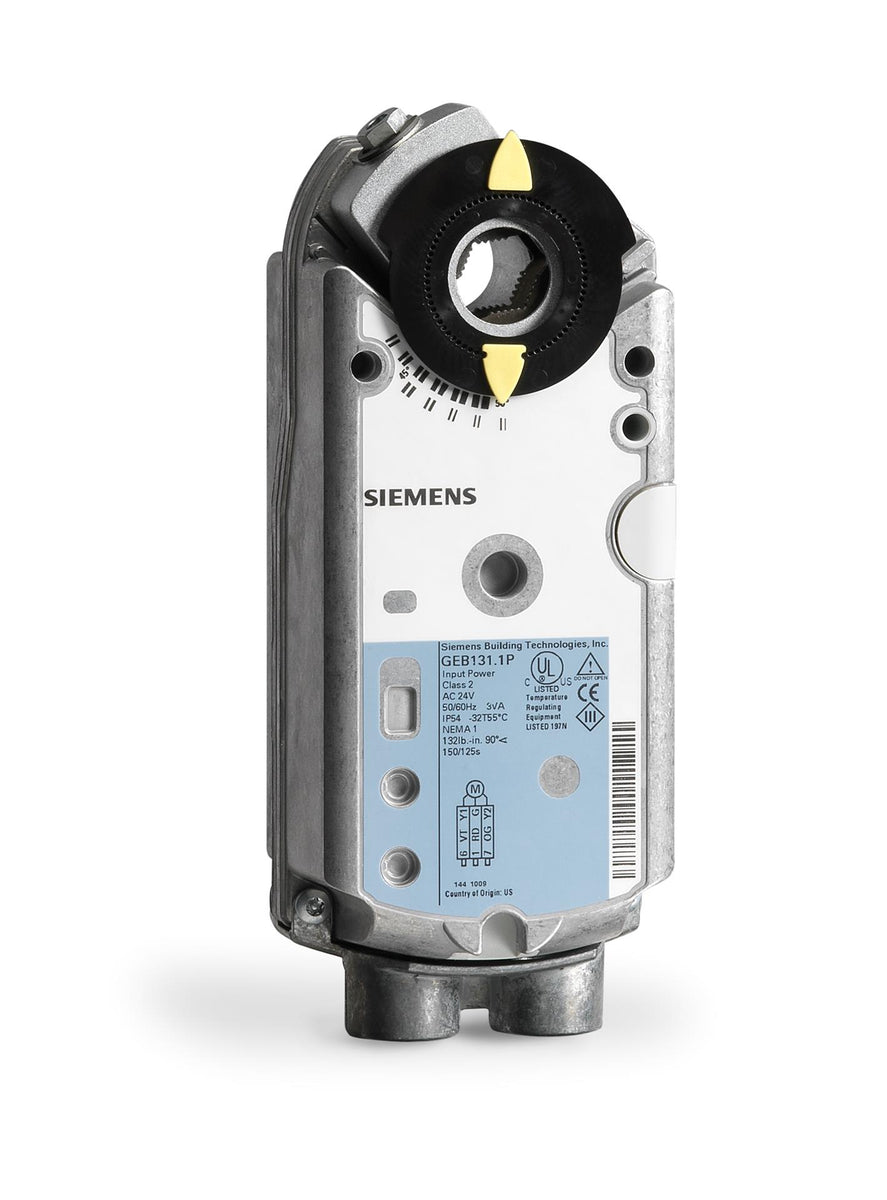

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GEB146.1U

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens GEB146.1U Documents

Datasheet(OpenAir GEB Series Enhanced Rotary NSR Damper Actuators Technical Instructions)Datasheet(OpenAir GEB Enhanced Series NSR 177 lb-in Direct Coupled Electronic Damper Actuators Submittal Sheet)Declaration of conformity(RCM Suplier's Declaration GEB…)Declaration of conformity(CE Declaration GEB...)Environmental Declaration(Damper Actuator GAP Small MK3 / OpenAirTm. GEB..1..)Other datasheet(Accessories and spare parts for air damper actuators ASC... ASK..) Installation Instructions More Info

Overview

Details for GEB146.1U

Damper actuator non-spring return, 177 lb-in, 2-position/Floating control. 24VAC/DC and dual adjustable built-in auxiliary switches . For use on control dampers

Specifications

Control or Fire/Smoke Type: Control Damper
Torque: 177 lb-in
Positioning time: 50 Hz:150 s, 60 Hz:125 s
Ambient humidity, operation: 95 % r.h.
Angular rotation: 90°
Operating voltage: 24 VAC
Frequency: 50/60 Hz
Auxiliary switch: 2
Cable length: 3 ft
Dimensions (W x H x D): Actuator: 3-1/4 W x 8-3/8 H x 2-3/8 D in. Shaft Diameter: 1/4 to 3/4 in. round, 1/4 to 1/2 in. square; Shaft Length Min: 3/4 in
