GDE146.1P | Damper Actuator | Non-Spring Return | 24 VAC/DC | On/Off/Floating Point | 44 lb-in | SW | Siemens
$137.00
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: SiemensSKU: GDE146.1P
List Price
$360.52
$137.00
Availability: IN STOCK
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

Email

GDE146.1P | Damper Actuator | Non-Spring Return | 24 VAC/DC | On/Off/Floating Point | 44 lb-in | SW | Siemens

Damper Actuator 44 lb-in 2-position/floating control signal, non-spring return, built in auxiliary switches, plenum rated for low torque VAV applications and small dampers.

Siemens | GDE146.1P

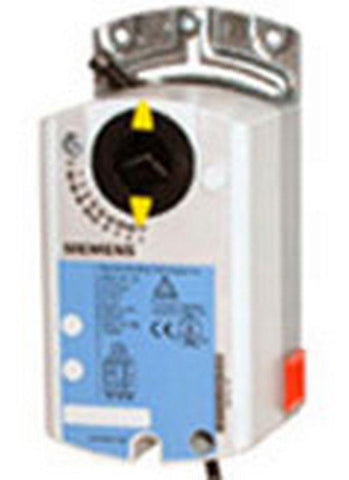

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GDE146.1P
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens GDE146.1P Documents

Datasheet(GDEGLB OpenAir Electronic Damper Actuators GDE Series Enhanced Non-spring Return Rotary Technical Instructions)Datasheet(GDEGLB OpenAir GDE Series. Enhanced Non-spring Return. 44 lb-in. Direct Coupled. Electronic Damper Actuators Submittal Sheet)Environmental Declaration(Damper actuator)Installation instruction(GDEGLB OpenAir Electronic Damper Actuators GDE/GLB Enhanced Rotary Non-spring Return Installation Instructions) Installation Instructions More Info

Overview

Details for GDE146.1P

Damper Actuator | Non-Spring Return | 24 VAC/DC | On/Off/Floating Point | 44 lb-in | SW

Damper Actuator 44 lb-in 2-position/floating control signal, non-spring return, built in auxiliary switches, plenum rated for low torque VAV applications and small dampers.

Specifications

Control or Fire/Smoke Type
Control Damper
Torque
44 lb-in
Positioning time
50 Hz:108 s, 60 Hz:90 s
Position feedback
No
Power consumption
2.0 VA, 1.0 W
Ambient humidity, operation
95 % r.h.
Angular rotation
90°
Operating voltage
19.2…28.8 V24 V#AC/DC
Frequency
50/60 Hz
Auxiliary switch
2
Cable length
3 ft
Dimensions (W x H x D)
2.7 x 6.6 x 2.4 in
Material, housing
NEMA 2, IP54 per EN60529, durable plastic
Degree of protection
IP54
