599-03611 | Rack and Pinion Valve Actuator, Spring Return, 24 Vac, Two-Position Control | Siemens
This Flowrite Rack and Pinion Valve Actuator is used with 1/2 to 2-inch Flowrite 2-way and 3-way valves with a 3/4-inch stroke. This electronic rack and pinion actuator has an operating voltage of 24 Vac, two-positiion control, and bi-directional fail-safe spring return. Other features of this rack and pinion include all metal housing, and brushless DC motor technology with stall protection.

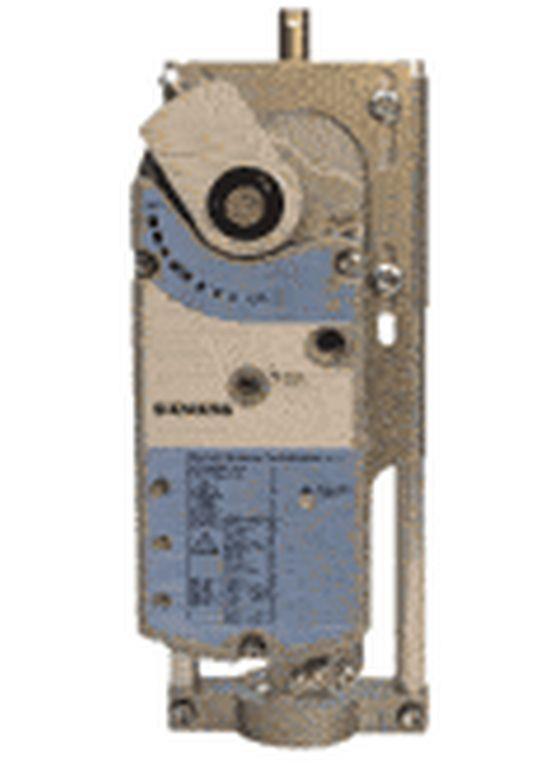

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-03611
Documents and manuals
Overview
Details for 599-03611
Rack and Pinion Valve Actuator, Spring Return, 24 Vac, Two-Position Control
Specifications
- Actuator Type
- Electronic
- Fail Safe
- Yes
- Spring return function
- Spring return functionality
- Control Signal
- 0...10 Vdc
- Positioning signal
- 2-position
- Power consumption
- 8VA running, 3 VA holding
- Mounting position
- NEMA 2 in vertical to horizontal 90 degrees
- Ambient temperature, operation
- -25 to 130°F, -32 to 55 °C
- Ambient humidity, operation
- 95% RH
- Operating voltage
- 24 Vac
- Supply Voltage
- 24 VAC
- Stroke
- 3/4 in., 20 mm
