HU367R | Safety switch, heavy duty, non fusible, 800A, 3 wire, 3 poles, 500hp, 600VAC/DC, Type 3R | Square D

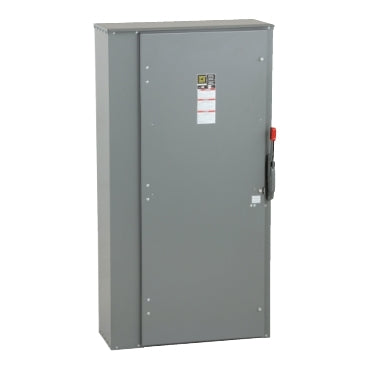

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HU367R
Overview
Details for HU367R
Safety switch, heavy duty, non fusible, 800A, 3 wire, 3 poles, 500hp, 600VAC/DC, Type 3R
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.Specifications
- Product
- Single Throw Safety Switch
- Duty Rating
- Heavy duty
- Device Application
- Heavy application
- Disconnect Type
- Non-fusible disconnect
- Factory Installed Neutral
- None
- Phase
- 3 phase
- Number of Poles
- 3
- Current Rating
- 800 A
- Voltage Rating
- 600 V AC/DC
- Enclosure Rating
- NEMA 3R galvannealed steel
- Motor power hp
- 500 hp at 480 V AC 50-60 Hz for 3 phase motors;50 hp at 600 V AC 50-60 Hz for 1 phase motors;500 hp at 600 V AC 50-60 Hz for 3 phase motors;50 hp at 600 V DC
- Mounting Type
- Surface
- Electrical Connection
- Lugs
- wiring configuration
- 3-wire
- Wire Size
- AWG 3/0...750 kcmil copper or aluminium
- tightening torque
- 375 lbf.in (42.37 N.m) 0.13…0.59 in² (85.01…380 mm²) (AWG 3/0...750 kcmil)
- Depth
- 17.75 in (450.85 mm)
- Width
- 36.62 in (930.15 mm)
- Height
- 69.13 in (1755.90 mm)
- Net Weight
- 367.95 lb(US) (166.9 kg)
- Certifications
- UL listed file E2875
- Category
- 00054-H&HU SW;NEMA3R;400-1200A
- Discount Schedule
- DE1
- GTIN
- 785901442448
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 73.82 in (187.5 cm)
- Package 1 Width
- 29.88 in (75.9 cm)
- Package 1 Length
- 37.80 in (96.0 cm)
- Package 1 Weight
- 342.00 lb(US) (155.129 kg)
- Warranty
- 18 months
