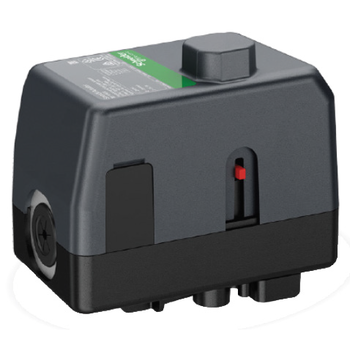

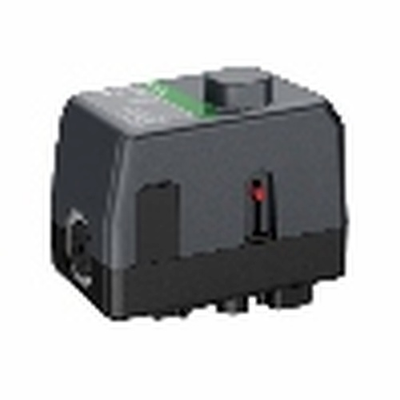

M323A01 | SmartX, Ball Valve Actuator, Proportional, Spring Return Close, 24 VAC, 10FT Plenum Cable, NEMA 2 | Schneider Electric

SmartX, Ball Valve Actuator, Proportional, Spring Return Close, 24 VAC, 10FT Plenum Cable, NEMA 2

Actuator: (M323A01):

• Actuator Type: Electric
• Control Signal: Proportional
• Control Signal Range: 0 to 10 VDC, 0 to 5 VDC, 4 to 20 mAdc, 5 to 10 VDC
• Loss of Power Type: Spring Return
• Power Input Voltage: 24 VAC
• Leads and Connections: 10 ft Plenum
• Mechanical Movement: Rotary
• Protection Rating: NEMA 2
• Product Line: Schneider Electric
• Product Range: SmartX Actuator
• Product Series: M323
• Actuator Use: Ball Valves

The VBB and VBS Series valves with SmartX Actuators are 2-Way or 3-Way, 1/2" or 3/4", characterized ball valves. The M3 and M2 SmartX Actuators are direct coupled to the VBB/VBS Series valves and accept two-position, floating or proportional control signals from a DDC system, controller, or thermostat for control of hot or chilled water, or solutions of up to 60% glycol. Typical applications include VAV reheat, fan coil units, hot and chilled water coils in air handling units, heat pumps and unit ventilators.
