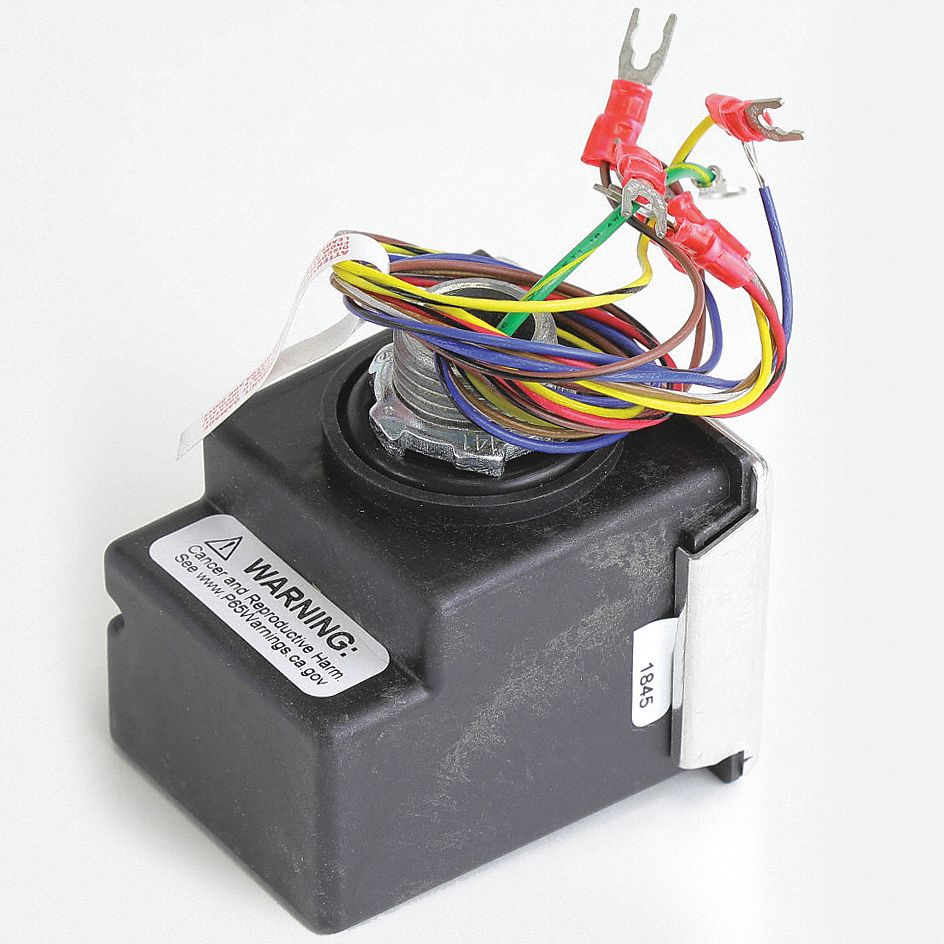

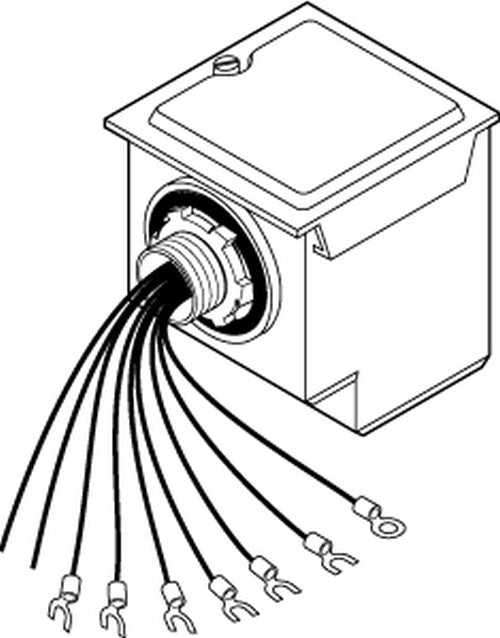

CP-9302-702 | Act Drive: 24/120/240 VAC, 5% of Input Span, 4-20 mAdc, OR Input, Adj Span | Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CP-9302-702

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric CP-9302-702 Documents

Datasheet More Info

Overview

Details for CP-9302-702

Act Drive: 24/120/240 VAC, 5% of Input Span, 4-20 mAdc, OR Input, Adj Span

Actuator Drive:

24/120/240 VAC
5% of Input Span
Factory Preset 4-20 mAdc
Adjustable Span
Optional Override Input

The CP-9301 and CP-9302 electronic actuator drives process a variable input signal from a controller to provide proportional control of an electric gear train actuator. The CP-9301 is preset at the factory for voltage input. The CP-9302 is factory preset for current input and has additional wiring for connection to an override switch, for those applications requiring an external override of the input signal. These drives are equipped with built-in jumpers and adjustable potentiometers, so that the type of input signal, deadband, input span, and start point may be reset in the field when necessary.
