Details for 2601AW2

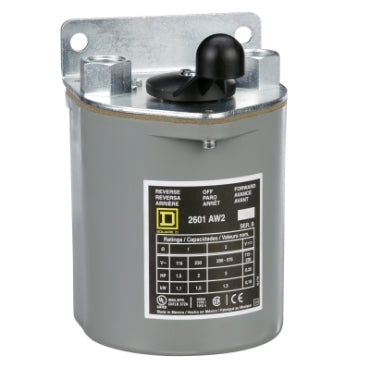

Reversing Drum Switch, NEMA 4, 600V AC, 250V DC, 3-Poles, Screw Clamp Terminals

Reversing Drum Switch

Degree of Protection: NEMA 4
System Voltage: 600V AC, 250V DC
Poles Description: 3-Poles
Electrical Connection: Screw Clamp Terminals

2601 reversing drum switches are designed to start and reverse motors by connecting them directly across the line. The devices can be used with squirrel cage and single-phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. A variety of enclosures are available. This device has a NEMA 4 watertight enclosure. Drum switches are UL listed and CSA certified for global applications.

Specifications

Product: Reversing Drum Switch
Enclosure Rating: NEMA 4
Horsepower: 1.5 hp 115 V AC;1 phase;2 hp 230 V AC;1 phase;2 hp 200 V AC;3 phase;2 hp 230 V AC;3 phase;2 hp 460 V AC;3 phase;2 hp 575 V AC;3 phase;0.25 hp 115 V DC;0.25 hp 230 V DC
Maximum Rated Voltage: 600 V AC;250 V DC
Number of Poles: 3P
Certifications: CSA;UL Listed
Electrical Connection: Screw-clamp terminals
Type: A
Category: 21116-2601
Discount Schedule: CP1
GTIN: 785901784432
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.80 in (12.2 cm)
Package 1 Width: 5.39 in (13.7 cm)
Package 1 Length: 7.99 in (20.3 cm)
Package 1 Weight: 2.62 lb(US) (1.19 kg)
Warranty: 18 months
