SCE-N12FA66LG | NEMA IS24 | Fan Assembly (115v), 10H x 10W x 5D | Saginaw

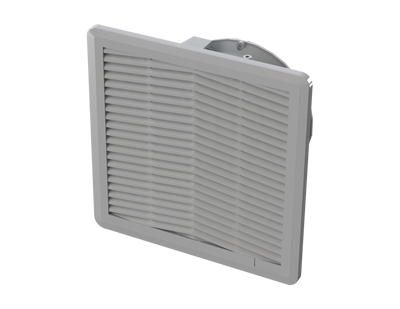

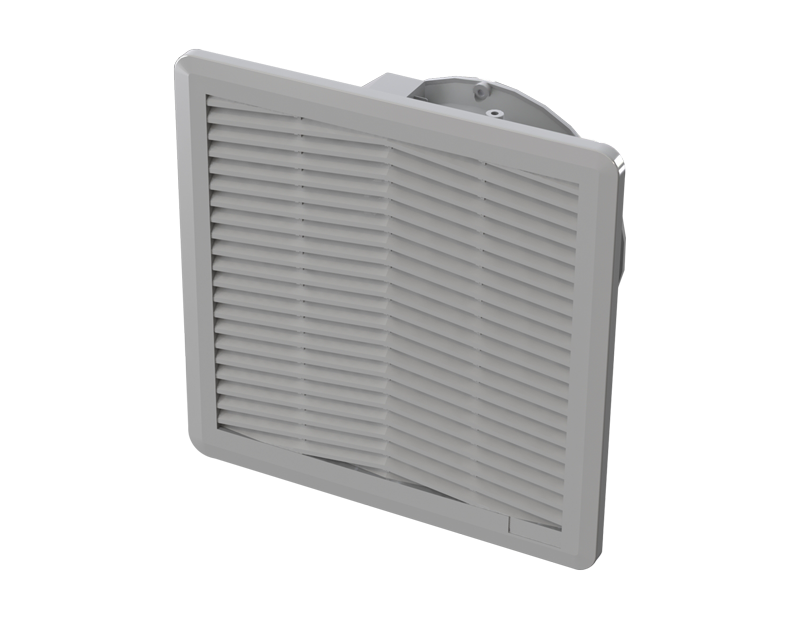

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCE-N12FA66LG

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Saginaw SCE-N12FA66LG Documents

FREIGHT DAMAGE POLICY CAD Package Type 12 Fan / Filter Package Type 12 Fan / Filter Package Thermal Management Chart More Info

Overview

Details for SCE-N12FA66LG

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

Application

Easy to install snap fit design for use in enclosures that require cooling but have limited space in NEMA 1 and 12 applications. Housing and grille are made of light gray heat resistant (ABS-FR), self-extinguishing material. Fans are available in 115 volt AC, 60/50 Hertz (HZ) single phase or 24 volt DC.

Industry Standards - (IS24)

UL Component Recognized

Notes

Type 12
cULus File Component Recognized SA32278
cULus Listed E498756
Motor w/ Thermal Protection

Specifications

Item Number	SCE-N12FA66LG
Brand	Saginaw
Enclosure Depth (IN)	5
Enclosure Height (IN)	10
Enclosure Type	Fan Assembly (115v)
Enclosure Width (IN)	10
IS21 Enclosure Rating	NEMA 4
