RS9110 | Thermostat, Programmable, 7-Day, 5-1-1, NP, 1H/1C | Robertshaw

Contractors and Home Owners can now have easy, yet powerful and reliable Single-stage heating and cooling control in a simple, modern design with the Robertshaw model RS9110 programmable 7-day wall thermostat backed by industry leading 6-year warranty. A large easy-to-read 4.6 square-inch clear digital LCD backlit display. Quick-access menu buttons allow for very easy programming. A filter change reminder to help you remember to change your furnace filter. Factory pre-set energy efficiency program. Battery change indicator alert makes changing batteries a breeze with our front load access battery compartment, no need to remove thermostat from base. Used for Single-Stage - Up to 1 Heat / 1 Cool HVAC systems. For use with 24 Vac systems: Central gas, electric or oil furnaces, heat pump systems without auxillary or emergency heat, 750 Millivolt. Does not work with 120/240v electric baseboard.

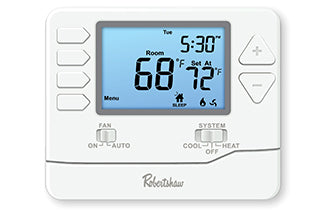

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RS9110

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Robertshaw RS9110 Documents

RS9110 Sell Sheet Robertshaw RS9110 Sell Sheet Spanish Robertshaw RS9110 Sell Sheet French RS9110 Install Manual RS9110 Operation Manual RS9110 Manual de instalación RS9110 Manual de funcionamiento RS9110 Manuel d’installation RS9110 Manuel d’utilisation Robertshaw Thermostat Brochure Robertshaw Thermostat Product Overview Robertshaw Thermostat Hang Card / Cross Reference Folleto de Robertshaw Termostatos de Pared Robertshaw Contractor Labeling Program More Info

Overview

Details for RS9110

RS9000 Pro-Series Programmable Wall Thermostat

Contractors can offer owners easy, yet powerful and reliable single-stage heating and cooling control in a simple, modern design with the RS9110 programmable wall thermostat.Single Stage - 1 Heat / 1 Cool• Large terminal blocks for easy installation• Universal sub-base• Quick-access menu button• Contractor/technician setup menu• Easy-to-understand programming menus• Intuitive wake, leave, return, sleep programming icons• 24V AC Powered OR Battery Operation (Included)• 6Year Limited Warranty• Factory pre-set energy efficiency program Simple, yet powerful control.• Large, easy-to-read 4.6-square-inch blue backlit display• Easy-access front-load battery compartment• Adjustable temperature differential (swing) for energy optimization and maximum system life• Adjustable room temperature calibration• Adjustable setpoint limits• Five-minute selectable on/off compressor delay protection for short-cycling prevention• Separate O and B terminals• Filter change reminder

• UPC 662013228217

Specifications

Item Number	RS9110
Brand	Robertshaw
0960-1	MAPLE CHASE
0960T-1	MAPLE CHASE
0960T	MAPLE CHASE
0970-1	MAPLE CHASE
100-01460-00	Invensys Climate Controls
1000NC	BRAEBURN
100	HUNTER TECHNOLOGIES
1020	BRAEBURN
1020NC	BRAEBURN
1F78-151	WHITE-RODGERS
1F80-0471	WHITE-RODGERS
1F86-0471	WHITE-RODGERS
1F97-0671	WHITE-RODGERS
1F97-1277	WHITE-RODGERS
2000	BRAEBURN
2000NC	BRAEBURN
2010	BRAEBURN
2020	BRAEBURN
2020NC	BRAEBURN
300-201	ROBERTSHAW CLIMATE
300-204	ROBERTSHAW CLIMATE
300-205	ROBERTSHAW CLIMATE
300-206	ROBERTSHAW CLIMATE
300-207	ROBERTSHAW CLIMATE
300-224	ROBERTSHAW CLIMATE
300-225	ROBERTSHAW CLIMATE
300-252	ROBERTSHAW CLIMATE
300-318;490-300	ROBERTSHAW CLIMATE
300-318	ROBERTSHAW CLIMATE
300-625	ROBERTSHAW CLIMATE
3020	BRAEBURN
5000	BRAEBURN
5020	BRAEBURN
5050	BRAEBURN
5310	BRAEBURN
6100	BRAEBURN
6255-1F78-151	EMERSON
6718-1F97-1271	EMERSON
6852-1F97-1277	EMERSON
8600	ROBERTSHAW CLIMATE
8601	ROBERTSHAW CLIMATE
9600	ROBERTSHAW CLIMATE
960	MAPLE CHASE
9610	ROBERTSHAW CLIMATE
9700	ROBERTSHAW CLIMATE
9700i	ROBERTSHAW CLIMATE
9701i2	ROBERTSHAW CLIMATE
9701i	ROBERTSHAW CLIMATE
970	MAPLE CHASE
9801I2	ROBERTSHAW
9801i	ROBERTSHAW CLIMATE
9851i	ROBERTSHAW CLIMATE
9901i	ROBERTSHAW CLIMATE
CTC200	COLUMBUS ELEC/CEMCO
CTC300	COLUMBUS ELEC/CEMCO
Dimensions	4.7 x3.8 x 1in (119.6 x 97.6 x 26mm)
DMH110	LUX
DSL-100	ENERSTAT/VALERA
DSL-150	ENERSTAT/VALERA
DSL-200	ENERSTAT/VALERA
DSL-205	ENERSTAT/VALERA
DSL-300	ENERSTAT/VALERA
DSL-345	ENERSTAT/VALERA
DSL-400	ENERSTAT/VALERA
DSL100	ENERSTAT/VALERA
DSL150	ENERSTAT/VALERA
DSL200	ENERSTAT/VALERA
DSL300	ENERSTAT/VALERA
DSL345	ENERSTAT/VALERA
DSL400	ENERSTAT/VALERA
E16574	ROBERTSHAW CLIMATE
ET-52	ENERSTAT/VALERA
ET52	ENERSTAT/VALERA
Factory Part Number	RS9110
L38-396	JOHNSTONE SUPPLY
L38-399	JOHNSTONE SUPPLY
L38-400	JOHNSTONE SUPPLY
L39-620	JOHNSTONE SUPPLY
L39-621	JOHNSTONE SUPPLY
L39-623	JOHNSTONE SUPPLY
L40-472	JOHNSTONE SUPPLY
L44-188	JOHNSTONE SUPPLY
L44-192	JOHNSTONE SUPPLY
L44-194	JOHNSTONE SUPPLY
L44-196	JOHNSTONE SUPPLY
L44-198	JOHNSTONE SUPPLY
Mounting Type	Wall or junction box
MT-2	COLUMBUS ELEC/CEMCO
MT110	COLUMBUS ELEC/CEMCO
MT2	COLUMBUS ELEC/CEMCO
MT301	COLUMBUS ELEC/CEMCO
MT411	COLUMBUS ELEC/CEMCO
MT511	COLUMBUS ELEC/CEMCO
P274-1100	CARRIER
P274-1100	CARRIER/AIR COND.CO.
P374-0100	CARRIER/AIR COND.CO.
P374-0200	CARRIER/AIR COND.CO.
P374-1100	CARRIER
P374-1100	CARRIER/AIR COND.CO.
P374-1600	CARRIER/AIR COND.CO.
P374-2300	CARRIER
P374-2300	CARRIER/AIR COND.CO.
P474-0100	CARRIER/AIR COND.CO.
P474-1100	CARRIER
PC8900	HONEYWELL
PDS111	LUX
Power Source	24V AC (18 to 30V AC); 50/60 Hz for hardwire (common wire or 2 AAA 1.5V alkaline batteries (included)
PS3110	PERFECT SENSE
PS4000	PERFECT SENSE
PSP500	LUX
PSP600	LUX
PSP700	LUX
PSPA711	LUX
R-100	AMERICAN STABILIS
R-100H	AMERICAN STABILIS
R-105	AMERICAN STABILIS
R-105H	AMERICAN STABILIS
R-106	AMERICAN STABILIS
R-106H	AMERICAN STABILIS
R-90	AMERICAN STABILIS
R100	COLUMBUS ELEC/CEMCO
R100H	COLUMBUS ELEC/CEMCO
R105	COLUMBUS ELEC/CEMCO
R105H	COLUMBUS ELEC/CEMCO
R106	COLUMBUS ELEC/CEMCO
R106H	COLUMBUS ELEC/CEMCO
R110	AMERICAN STABILIS
R110	COLUMBUS ELEC/CEMCO
R111	AMERICAN STABILIS
R111	COLUMBUS ELEC/CEMCO
R90	COLUMBUS ELEC/CEMCO
RS3110	ROBERTSHAW CLIMATE
RS4110	ROBERTSHAW CLIMATE
RS5110	ROBERTSHAW CLIMATE
RS6110	ROBERTSHAW CLIMATE
SC-1	ENERSTAT/VALERA
SC2000	ICM
Series Application	Single-Stage 1 Heat / 1 Cool Programmable
SHC-7	ENERSTAT/VALERA
SHC7	ENERSTAT/VALERA
SK-3	ENERSTAT/VALERA
SK3	ENERSTAT/VALERA
SMART 1000	SMART SENSE
SMART 2000	SMART SENSE
SP20	CARRIER/AIR COND.CO.
SP21	CARRIER/AIR COND.CO.
SP30	CARRIER/AIR COND.CO.
SS10	CARRIER/AIR COND.CO.
SS11	CARRIER/AIR COND.CO.
T500HCN-1	JOHNSON CONTROLS
T500HCP-1	JOHNSON CONTROLS
T7100D	HONEYWELL
T7200	HONEYWELL
T7300D	HONEYWELL
T8000C1002	HONEYWELL
T8000C1010	HONEYWELL
T8000C1019	HONEYWELL
T8001C1001	HONEYWELL
T8002C1000	HONEYWELL
T8090A1007;Q682A1011	HONEYWELL
T8090A1007;Q682A1012	HONEYWELL
T8090A1007;Q682D1001	HONEYWELL
T8090A1007	HONEYWELL
T8090A1015;Q682A1011	HONEYWELL
T8090A1015;Q682A1012	HONEYWELL
T8090A1015;Q682D1001	HONEYWELL
T8090A1015	HONEYWELL
T8090A1023	HONEYWELL
T8090A1056;Q682A1011	HONEYWELL
T8090A1056;Q682A1012	HONEYWELL
T8090A1056;Q682D1001	HONEYWELL
T8090A1056	HONEYWELL
T8095A1010	HONEYWELL
T8112C1031	HONEYWELL
T8112D1005	HONEYWELL
T8112D1013	HONEYWELL
T8131C1004	HONEYWELL
T8131C1012	HONEYWELL
T8132	HONEYWELL
T8132C1003	HONEYWELL
T8132C1011	HONEYWELL
T8190A1006;Q682A1011	HONEYWELL
T8190A1006;Q682A1012	HONEYWELL
T8190A1006;Q682D1001	HONEYWELL
T8190A1006	HONEYWELL
T8195A1001	HONEYWELL
T8195A1006;Q682D1019	HONEYWELL
T8195A1006	HONEYWELL
T8400B1018	HONEYWELL
T8400C1008	HONEYWELL
T8400C1016	HONEYWELL
T8400C1024	HONEYWELL
T8400C1032	HONEYWELL
T8400C1040	HONEYWELL
T8400C1057	HONEYWELL
T8400C1099	HONEYWELL
T8401C1007	HONEYWELL
T8401C1015	HONEYWELL
T8401C1023	HONEYWELL
T8401C1064	HONEYWELL
T8401C1072	HONEYWELL
T8500	HONEYWELL
T8600	HONEYWELL
T874H1005	HONEYWELL
T8775C1005	HONEYWELL
T8775C1013	HONEYWELL
TC-PAC	CARRIER
TC-PHP	CARRIER
Temperature Range	41°F to 95°F (5°C to 35°C)
Terminals	Rh; Rc; C; Y; W; G; O; B
TH1110D1000	HONEYWELL
TH2110D1009	HONEYWELL
TH2110D	HONEYWELL
TH3110D1008	HONEYWELL
TH4110D1007	HONEYWELL
TH5110D1006	HONEYWELL
TH5110D1021	HONEYWELL
TH5110D1022	HONEYWELL
TH6110D1005	HONEYWELL
TH6110D1021	HONEYWELL
TS8095A1010	HONEYWELL
TX1500	LUX
TX1501	LUX
TX500	LUX
TX500E	LUX
TX505	LUX
TX9000	LUX
TX9009	LUX
XL110	COLUMBUS ELEC/CEMCO
XL301	COLUMBUS ELEC/CEMCO
XL411	COLUMBUS ELEC/CEMCO
XL411RS	COLUMBUS ELEC/CEMCO
XL511	COLUMBUS ELEC/CEMCO
Y594H1012	HONEYWELL
Y8095A1007	HONEYWELL
Y8195A1006	HONEYWELL
Y8195B1004	HONEYWELL
Y8224A1019	HONEYWELL
ZP1P	CARRIER/AIR COND.CO.
