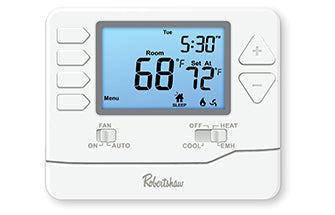

RS8210 | Thermostat, Non-Programmable 2H/1C; EmH setting | Robertshaw
Contractors and Home Owners can now have easy, yet powerful and reliable Multi-stage heating and cooling control in a simple, modern design with the Robertshaw model RS8210 non-programmable wall thermostat backed by industry leading 6-year warranty. A large easy-to-read 4.6 square-inch clear digital LCD backlit display. Quick-access menu buttons allow for very easy adjustments. Filter change reminder to help you remember to change your furnace filter. Battery change indicator alert makes changing batteries a breeze with our front load access battery compartment, no need to remove thermostat from base. Used for Multi-Stage - Up to 2 Heat / 1 Cool Heat Pump Or up to 1 Heat / 1 Cool Conventional HVAC systems. For use with 24 Vac systems: Central gas, electric or oil furnaces, heat pump systems with or without auxillary or emergency heat, 750 Millivolt. Does not work with 120/240v electric baseboard.
Documents and manuals
Robertshaw RS8210 Documents
Overview
Details for RS8210
RS8000 Pro-Series Non-Programmable Wall Thermostat
Contractors can offer owners easy, yet powerful and reliable two-stage heating and one-stage cooling control in a simple, modern design with the RS8210 non-programmable wall thermostat.Multi-Stage - 2 Heat / 1 Cool• Large terminal blocks for easy installation• Universal sub-base• Quick access menu button• Contractor/technician setup menu Simple, yet powerful control.• Large, easy-to-read 4.6-square-inch blue backlit display• 24V AC Powered OR Battery Operation (Included)• 6Year Limited Warranty• Easy-access front-load battery compartment• Adjustable temperature differential (swing) for energy optimization and maximum system life• Adjustable room temperature calibration• Adjustable setpoint limits• Filter change reminder• Five-minute selectable on/off compressor delay protection for short-cycling prevention• Separate O and B terminals
• UPC 662013228200
Specifications
Item Number | RS8210 |
Brand | Robertshaw |
1200NC | BRAEBURN |
1220 | BRAEBURN |
1220NC | BRAEBURN |
300-202 | ROBERTSHAW CLIMATE |
300-203 | ROBERTSHAW CLIMATE |
300-208 | ROBERTSHAW CLIMATE |
3220 | BRAEBURN |
8425 | ROBERTSHAW CLIMATE |
9415 | ROBERTSHAW CLIMATE |
9420 | ROBERTSHAW CLIMATE |
9515 | ROBERTSHAW CLIMATE |
9520 | ROBERTSHAW CLIMATE |
9555 | ROBERTSHAW CLIMATE |
9560 | ROBERTSHAW CLIMATE |
Dimensions | 4.7 x3.8 x 1in (119.6 x 97.6 x 26mm) |
Factory Part Number | RS8210 |
Mounting Type | Wall or junction box |
Power Source | 24V AC (18 to 30V AC); 50/60 Hz for hardwire common wire or 2 AAA 1.5V alkaline batteries (included) |
RS2210 | ROBERTSHAW CLIMATE |
RS321N | ROBERTSHAW CLIMATE |
RS4220 | ROBERTSHAW CLIMATE |
Series Application | Multi-Stage 2 Heat / 1 Cool Non-Programmable |
Temperature Range | 41°F to 95°F (5°C to 35°C) |
Terminals | R; C; Y; W2; W/E; G; O; B |
