O16-108 | PRESSURE CONTROL | Ranco / Robertshaw

The Ranco® O Series Single High Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

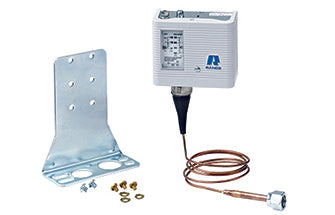

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to O16-108

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Robertshaw O16-108 Documents

O10/O11/O16/O20 Single Pressure Control Manual 150-2598 Ranco O Controls EMEA O Series Pressure Controls in Portuguese O Series Pressure Controls in Spanish 150-2598 Ranco O Controls EMEA Robertshaw Commercial Catalog 150-2634 2019 Uni-Line Product Catalog in English 2019 Uni-Line Product Catalog in Spanish 2018 Uni-Line Product Catalog in Portuguese 2019 Uni-Line Product Catalog in French 2018 Uni-Line Product Catalog in German 2018 Uni-Line Product Catalog in Italian Robertshaw Comprehensive Global Solutions Robertshaw Soluciones Integrales Globales Robertshaw Soluções globais abrangentes More Info

Overview

Details for O16-108

O Series Pressure Controls

The Ranco® O Series Single High Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

Features and Benefits

NEMA 1 enclosure with non-conductive cover
Front-located captive cover screw
Large, easy-to-read scale plate
Super Cap® capillary protection system
Universal mounting and compact design
Screw terminals are raised and fully accessible foreasy wiring
Laser-welded bellows for extended life
Heavy-duty plated steel frame
Cap included on all Australia temperature controls. Optional for all other regions.

Specifications

Item Number	O16-108
Brand	Robertshaw
010-1029	RANCO
010-1060	RANCO
010-1079	RANCO
010-1092	RANCO
010-1211	RANCO
010-1956	RANCO
010-2005	RANCO
010-2014	RANCO
010-2054	RANCO
010-2057	RANCO
010-2072	RANCO
010-2123	RANCO
010-2145	RANCO
010-2155	RANCO
010-2169	RANCO
010-2173	RANCO
010-2175	RANCO
010-2186	RANCO
010-2193	RANCO
010-2219	RANCO
011-1711	RANCO
011-1792	RANCO
011-3104	RANCO
011-3113	RANCO
011-3114	RANCO
011-3115	RANCO
011-3133	RANCO
011-3136	RANCO
011-33000	RANCO
011-3383	RANCO
011-3404	RANCO
012-1537	RANCO
016-106	RANCO
016-108-070	RANCO
016-108	RANCO
016-1502	RANCO
016-178	RANCO
016-503	RANCO
016-508	RANCO
016-519	RANCO
016-523	RANCO
016-558	RANCO
016-570	RANCO
016-577	RANCO
016-603	RANCO
016-604	RANCO
016-6750	RANCO
016108	RANCO
016917	BALLEY CASE & COOLER
02-02-01	UNIVERSAL-NOLIN
021-6406	RANCO
021-7406	RANCO
023-107	RANCO
023-114	RANCO
058553	HUSSMAN
058554	HUSSMAN
060-117166	DANFOSS
060-1171	DANFOSS
060-117966	DANFOSS
060-205391	DANFOSS
085-0080-00-1	COPELAND
085-0098-08	COPELAND
1082A32-G14	THERMO-KING
124538	TYLER REFRIGERATION
128-51	ZERO MFG CO
1315	WEBSTER ENGINEERING
1456-934	WESTINGHOUSE
19A-0222-0	UNIVERSAL-NOLIN
20406-1072	VOLLRATH REFRIG.
2348	JOHNSON CONTROLS
2351	ROBERTSHAW
2358	JOHNSON CONTROLS
25-4615PL	BORG-WARNER (YORK)
25-6993PL	BORG-WARNER (YORK)
258217	HUSSMAN
258218	HUSSMAN
261291	HUSSMAN
270AP10-2348	JOHNSON CONTROLS
270AP10-2351	JOHNSON CONTROLS
270AP10-2358	JOHNSON CONTROLS
2E984	W.W. GRAINGER
2P6	JOHNSON CONTROLS
313977	HUSSMAN
313979	HOBART CORP
316400	HUSSMAN
316401	HUSSMAN
316405	HOBART CORP
350A016H27	MCQUAY
350A016H45	MCQUAY
37E08	LENNOX INDUSTRIES
3X719	W.W. GRAINGER
406-544	KRAMER-TRANTON CO.
4130-142-5	HANKINSON
425-0289	TRANE
4EMB-4130	AMERICAN AIR FILTER
4P12	JOHNSON CONTROLS
4P12A	JOHNSON CONTROLS
4P9B	JOHNSON CONTROLS
55-00802	FRIGIKAR CORPORATION
557294	WHIRLPOOL
5700M	BOHN HEAT TRANSFER
5802D	BOHN HEAT TRANSFER
5802O	BOHN HEAT TRANSFER
58553	HUSSMAN
58554	HUSSMAN
59863	HUSSMAN
60006	KELLOGG-AMERICAN INC
66201392268	UNI-LINE
778A124DF-3	G.E. (General Electric)
8025-A-7233	MCCRAY REFRIG.CO.
81057	BABSON BROTHERS CO.
81323	BABSON BROTHERS CO.
8404-17	ADDISON(HEAT CONTROL
844-15	WEATHERKING(ADDISON)
860-326400B00	MCQUAY
860-326400B	MCQUAY
8A12-18	WARREN CO.(THE)
92268	UNI-LINE
968A817-4	G.E. (General Electric)
97879	SJC CORP.
97B79	JANITROL (GOODMAN)
9997-235	UNI-LINE
A47F40	JANITROL (GOODMAN)
A53570	KECO
AP21-1075	ROBERTSHAW
AP21-4029	ROBERTSHAW
B10-587	JOHNSTONE SUPPLY
Capillary Length	36" (0.9m)
CNT-85	DUNHAM BUSH
CNT-96	DUNHAM BUSH
Comments	IP44 part number: 206-00232-002
Differential	40 to 150 PSI (3 to 10 bar)
E218526	DUNHAM BUSH
HK02RA-049	CARRIER/AIR COND.CO.
HK02RB-190	CARRIER/AIR COND.CO.
O10-1029	RANCO
O10-1060	RANCO
O10-1079	RANCO
O10-1092	RANCO
O10-1211	RANCO
O10-1956	RANCO
O10-2005	RANCO
O10-2014	RANCO
O10-2054	Ranco
O10-2057	RANCO
O10-2072	RANCO
O10-2123	RANCO
O10-2145	RANCO
O10-2155	RANCO
O10-2169	RANCO
O10-2173	RANCO
O10-2175	RANCO
O10-2186	RANCO
O10-2193	RANCO
O10-2219	RANCO
O11-1711	Ranco
O11-1792	RANCO
O11-3104	RANCO
O11-3113	RANCO
O11-3114	RANCO
O11-3115	RANCO
O11-3133	RANCO
O11-3136	RANCO
O11-33000	RANCO
O11-3383	RANCO
O11-3404	RANCO
O12-1537	RANCO
O16-106	RANCO
O16-108-070	Invensys Climate Controls
O16-1502	RANCO
O16-178	RANCO
O16-503	Ranco
O16-508	RANCO
O16-519	RANCO
O16-523	RANCO
O16-558	RANCO
O16-570	Ranco
O16-577	RANCO
O16-593	COPELAND
O16-603	RANCO
O16-604	RANCO
O16-6750	RANCO
O16108	RANCO
O21-6406	RANCO
O21-7406	RANCO
O23-107	RANCO
O23-114	RANCO
O25-04615	BORG-WARNER (YORK)
O25-17029	BORG-WARNER (YORK)
P-8	DUNHAM BUSH
P05-135A	LIEBERT CORP.
P70AA-1118C	PENN/BASO
P70AA-118	JOHNSON CONTROLS
P70AA-143	JOHNSON CONTROLS
P70AA-144	JOHNSON CONTROLS
P70AA-156	JOHNSON CONTROLS
P70AA-158	JOHNSON CONTROLS
P70AA-18	JOHNSON CONTROLS
P70AA-20	JOHNSON CONTROLS
P70AA-26	JOHNSON CONTROLS
P70AA-3	JOHNSON CONTROLS
P70AA-48	JOHNSON CONTROLS
P70AA-53	JOHNSON CONTROLS
P70AA-56	JOHNSON CONTROLS
P70AA-62	JOHNSON CONTROLS
P70AA-68	JOHNSON CONTROLS
P70AA-78	JOHNSON CONTROLS
P70AA-83	JOHNSON CONTROLS
P70AA-91	JOHNSON CONTROLS
P70AA-92	JOHNSON CONTROLS
P70AC-1	JOHNSON CONTROLS
P70AC-8	JOHNSON CONTROLS
P70CA-111	JOHNSON CONTROLS
P70CA-17	JOHNSON CONTROLS
P70CA-3	JOHNSON CONTROLS
P70CA-46	JOHNSON CONTROLS
P70CA-50	JOHNSON CONTROLS
P70CA-76	JOHNSON CONTROLS
P70CA-77	JOHNSON CONTROLS
P70EA-6	JOHNSON CONTROLS
PP-11927-A	HILL REFRIGERATION
PP-14622-E	HILL REFRIGERATION
PP-14739-G	HILL REFRIGERATION
PP-24206-E	HILL REFRIGERATION
PP-28127X	HILL REFRIGERATION
Pressure Connection	1/4" SAE Flare Nut
Pressure Range	100 to 400 PSI (7 to 27 bar)
PS1-X5K	EMERSON
Region	NA
Reset	Auto
RT-9143	LIQUID CARBONIC CORP
Series Application	High Pressure Controls
Switch	SPDT
WY23X87	G.E. (General Electric)
ZVW-217-530	DELANAIR ENGINEERING
