RS10420T | Thermostat, Programmable, 7-Day, 5-1-1, NP, Touchscreen, WIFI, 4H/2C | Robertshaw
Contractors and Home Owners can now have a simple, easy Wi-Fi connected thermostat with smartphone using Robertshaw app for IOS or Android. Has powerful and reliable Multi-Stage heating and cooling control in a simple, modern design with the Robertshaw model RS10420T 7-day programmable touchscreen wall thermostat backed by industry leading 6-year warranty. A large easy-to-read 8.8 square-inch clear digital LCD backlit display. Quick-access menu buttons allow for very easy programming. Factory pre-set energy-efficiency program. Auto changeover. Keypad lockout. A filter change reminder to help you remember to change your furnace filter. C-wire (common wire) required for power, does not use batteries. Used for up to 4 Heat / 2 Cool Heat Pump or up to 2 Heat / 2 Cool Multi-Stage Conventional systems. For use with 24 Vac systems: Central gas, electric or oil furnaces, heat pump systems with or without auxillary or emergency heat, 750 Millivolt. Does not work with 120/240v electric baseboard.
Documents and manuals
Robertshaw RS10420T Documents
Overview
Details for RS10420T

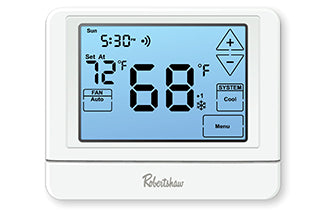

Pro-Series WIFI Programmable Touchscreen Wall Thermostat
Contractors can offer owners easy, yet powerful and reliable multi-stage temperature control in a simple, modern design with the RS10420T WIFI programmable Touchscreen wall thermostat.Multi-Stage - 4 Heat / 2 Cool• Large terminal blocks for easy installation• Universal sub-base• Quick-access menu button• Contractor/technician setup menu• Easy-to-understand programming menus• Intuitive wake, leave, return, sleep programming icons• Factory pre-set energy efficiency program• 24V AC Powered (C-wire required)• 6Year Limited Warranty• Large, easy-to-read 8.8-square-inch blue backlit touchscreen display• Compatible with universal WiFi standards• Compatible with Alexa and Robertshaw app (iOS or Android)• Adjustable temperature differential (swing) for energy optimization and maximum system life• Adjustable room temperature calibration• Adjustable setpoint limits• Compressor delay protection for short-cycling prevention• Filter change reminder• Keypad lockout• Dual fuel compatible• Auto changeover
• UPC 662013228262
Specifications
Item Number | RS10420T |
Brand | Robertshaw |
5320 | BRAEBURN |
6300 | BRAEBURN |
6400 | BRAEBURN |
6425 | BRAEBURN |
7300 | BRAEBURN |
7320 | BRAEBURN |
7500 | BRAEBURN |
Dimensions | 4.7 x 3.8 x 1in (119.6 x 97.6 x 26mm) |
Factory Part Number | RS10420T |
Mounting Type | Wall or junction box |
Power Source | 24V AC (18 to 30V AC); 50/60 Hz for hardwire common wire (C-Wire) required |
RS7210 | ROBERTSHAW CLIMATE |
RTH9585WF | HONEYWELL |
Series Application | Multi-Stage 4 Heat / 2 Cool Programmable Touchscreen |
Temperature Range | 32°F to 99°F (1°C to 40°C) |
Terminals | Rh; Rc; C; Y; Y2; W/E; W2; G; O; B |
TH8320R1003 | HONEYWELL |
