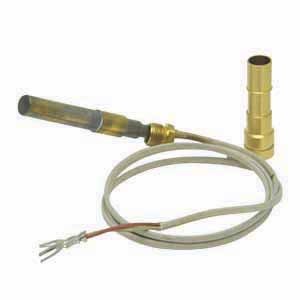

1950-001 | PILOT,THERMO-COUPLE/PILE 36'' 2-LEAD THERMO-PILE | Robertshaw

1950 & 1951 Thermopiles

The Robertshaw® 1950 and 1951 Series Thermopiles lead the industry for gas appliance applications. Their primary function is to ensure a standing pilot light is operative so that on a call for heat, the main burner gas will be properly ignited. Thermopiles are placed in gas applications to detect the existence of a flame for safety purposes by shutting off the potential gas flow to a burner. A thermopile is the assembly of many thermocouples to increase the millivolt output.

Robertshaw thermopiles have two types of connections: coaxial and two-wire spade connectors. The 1950 Series Thermopiles, also known as TP-75, are two-wire spade connectors. The 1951 Series Thermopiles, also known as CP-2 (250 to 750 millivolts), are coaxial connectors. The 1950 and 1951 Series Thermopiles (pilot generators) are designed for use on self-powered gas control systems. They can be used to replace similar competitive devices. It includes PG9 Pilot Adaptor.Features and Benefits

• Easy burner installation with attached threaded nut
• Stainless steel outer jacket for long life and resistance to heat blistering
• Combination of copper and nickel alloys for good electrical conductivity
• Mica washer to insulate from shorting conditions
• Tinnerman clip included
• Various lengths available for multiple applications
