1830-716 | PILOT,THERMO-COUPLE/PILE 5SHL-1 PILOT | Robertshaw

The 1830-700 Series Pilot Uni-Kits® are designed for use with the OEM-style Pilot Ignition systems. The electrode is permanently riveted to the pilot frame and the spark gap is fixed at 1/8”. These pilots can be used to replace existing pilot assemblies or for retrofitting standing pilot applications when an exact replacement is desired. Each Uni-Kit comes with a natural gas orifice installed and a separate L.P. gas orifice. Pilot tubing size is 1/4".

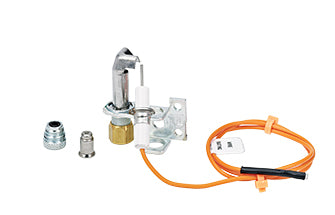

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1830-716

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Robertshaw 1830-716 Documents

Robertshaw 2024 HVAC Heating Catalog Pilot Photos and Electrode Identification 150-2377 Pilots S & C Series / 1820 / 1830 Series Pilots and Ignitors Sell Sheet More Info

Overview

Details for 1830-716

1830-700 Pilot Series

Features and Benefits

Many flame pattern types available
Thermocouple or thermopile options
Spark electrode available
Horizontal or vertical gas inlet
Several mounting bracket types available
Aerated pilots with non-linting characteristics

Specifications

Item Number	1830-716
Brand	Robertshaw
1830-720	UNI-LINE
63095	UNI-LINE
63115	UNI-LINE
76752	ROBERTSHAW
Comments	Piezo Receptacle fits .093 diameter pin terminal
Factory Part Number	5SHL-1
Flame Pattern Type	90° Left
Lead Length	24"
Series Application	Pilot Electrode Series
