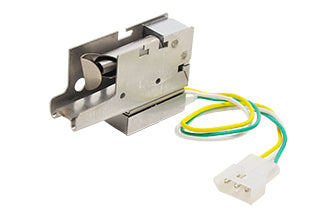

1830-620 | 3 Wire Pilot Burner Assembly | Robertshaw
The Robertshaw® 1830 Series Pilot Burner Safety Switch is an ignition control with an embedded safety switch. The control's sensing technology automatically detects when a flame is not present and shuts off gas flow to help prevent an unsafe condition. This hard-to-find part is a key replacement component for over 1,700 Carrier, Payne, and Bryant and Daynight (BPD) furnace models.
Documents and manuals
Overview
Details for 1830-620
1830 Series
The Robertshaw® 1830 Series Pilot Burner Safety Switch is an ignition control with an embedded safety switch. The control's sensing technology automatically detects when a flame is not present and shuts off gas flow to help prevent an unsafe condition. This hard-to-find part is a key replacement component for over 1,700 Carrier, Payne, and Bryant and Daynight (BPD) furnace models.
Features and Benefits
- Differential expansion pilot with a 3-lead SPDT switch for use with a hot surface ignitor or spark ignition
- Yellow, white and green wires with Molex plug adaptor
- Pilot includes flame sensing, heat activated relay at base of pilot module
Specifications
| Item Number | 1830-620 |
| Brand | Robertshaw |
| Application | Furnaces |
| Dimensions | 4.7"L x 3"W x .7"H |
| Electrical Rating | 30V AC; 60 Hz; 1 Amp |
| Inlet Pressure | 7.0" W.C. |
| Orifice Size | .017 |
| Series Application | Electronic Pilot Burner with Safety Switch |
| Switch | SPDT |
