1101B | TORK 24 HOUR TIMER SPST 120V METAL COVER | Tork / Robertshaw

The Tork® 1100 Series Electric Timers offer 24 hour time switches with automatic On-Off control when operation is required at the same time every day, seven days a week. Applications include On-Off control of heating, air conditioning, display lighting, ventilating, pumps and fans. Tork Electric Timers are sold exclusively through Robertshaw® to HVACR wholesalers.

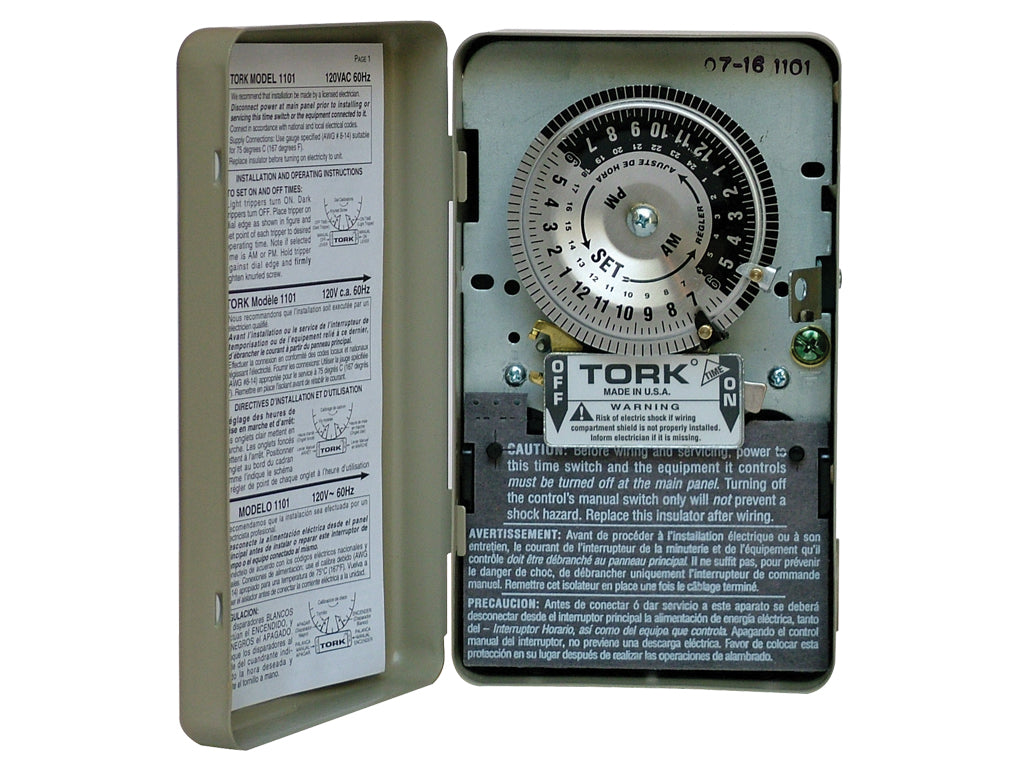

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1101B

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Robertshaw 1101B Documents

Tork 1100 Instruction Manual Tork 1100 Series 24 Hour Time Switch Sell Sheet 2019 Uni-Line Product Catalog in English 2019 Uni-Line Product Catalog in Spanish 2018 Uni-Line Product Catalog in Portuguese 2019 Uni-Line Product Catalog in French 2018 Uni-Line Product Catalog in German 2018 Uni-Line Product Catalog in Italian Robertshaw Comprehensive Global Solutions Robertshaw Soluciones Integrales Globales Robertshaw Soluções globais abrangentes More Info

Overview

Details for 1101B

Electric Timers Series

Heavy-duty synchronous, self-starting high torque timing motor
Power consumption: 3 Watts maximum
Automatic operation for 24 hour timers with one pair of On-Off trippers supplied - accommodates up to 12 pairs
Multilingual dial markings - English, French and Spanish
Temporary manual override
General purpose (NEMA 1) metal enclosure of deep-drawn steel, enamel coated and lockable hasp
Combination 1/2” and 3/4” knockouts on both sides, bottom and back

Specifications

Item Number	1101B
Brand	Robertshaw
4001-00	PARAGON
Automatic Operation	Minimum ON 20 minutes OFF 75 minutes
Contact Ratings	40 Amps Resistive; 20 Amps Inductive; 1000 VA Pilot Duty; 2HP (24 FLA) 120V AC
Electrical Rating	120V AC
Enclosure	Metal
Series Application	24 Hour Electromechanical Timer
Switch	SPST
Temperature Range	-40°F to 165°F (-40°C to 74°C)
Timing	Heavy duty synchronous; 3 Watts
