ZP6-ESP-KIT | Six Zone (4H/2C) zone panel with ESP Kit | iO HVAC Controls

ZP6-ESP-KIT 6 Zone 4H/2C Heat Pump by iO HVAC Controls iO HVAC Controls' ZP6-ESP-KIT is a cutting-edge HVAC control solution designed for industrial and commercial applications. This 6 Zone 4H/2C Heat Pump features advanced technology and robust construction, making it ideal for managing and optimizing heating and cooling systems in various facilities. Features: - 6 zones with independent temperature control for precise room comfort - 4H/2C heat pump capability for flexible heating and cooling options - User-friendly interface with clear display and intuitive controls - Compatible with a range of sensors and devices for comprehensive system monitoring - Energy-efficient design helps reduce operating costs Benefits: - Enhances occupant comfort with precise temperature control - Optimizes energy consumption and reduces operating expenses - Streamlines system management with centralized control and monitoring - Ensures reliable performance and extended service life with its durable construction Applications: - Industrial facilities and warehouses - Commercial buildings and offices - Schools and universities - Hospitals and healthcare facilities Our HVAC supply store is your trusted source for industrial HVAC solutions. Our knowledgeable team can assist you with product selection, installation, and ongoing support. Contact us today to learn more about the ZP6-ESP-KIT and how it can benefit your facility.

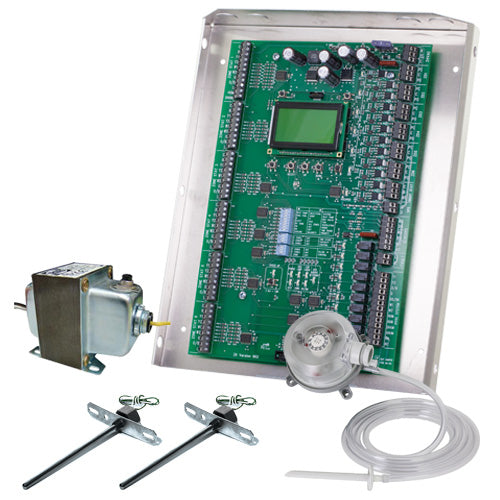

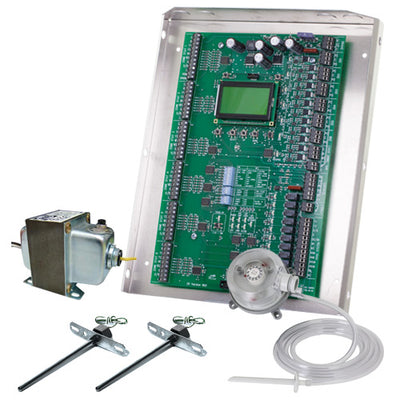

The ZP6-ESP is a 6 zone panel that integrates our award winning ESP technology to completely eliminate the need to install a bypass damper. This 4H/2C zone panel comes with a static pressure sensor. The system works like any standard zone control system with one exception; a static pressure sensor continuously monitors the system static pressure. If the static pressure goes above setpoint, the ESP panel will power the non-calling zone dampers open just enough to relieve the excess pressure. Tests indicate that bleeding a small amount of conditioned air for a short time into non-calling zones has little to no impact on the zone temperature.

The panel can be used with single-stage, multi-stage, heat pump and dual fuel equipment. Programmable LCD and slide switch configuration makes setup quick and easy. A wide range of control options provide ultimate application flexibility including adjustable high/low limits, adjustable high/low balance point, stage timing, capacity control and priority cooling control.

Features and Benefits:

•  6 zones expandable up to 12
• Auto changeover
• Cooling priority or majority wins
• Twenty minute time share option
• Optional night thermostat
• Humidification/Dehumidification pass-throughs
• Staging by zone thermostat or stage timer
• Purge cycle option
• DK and BK terminals work with most variable speed blowers
• For use with 3 wire dampers  Adjustable high and low limit
• Adjustable high and low balance point
• Equipment fault pass-through indicator
• LCD displays: Discharge air temperature, return air temperature and outdoor temperature

Warranty: 10 years
