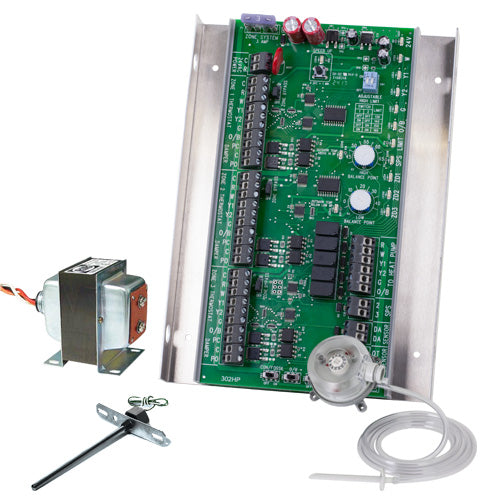

ZP3-HPS-ESP-KIT | Three Zone (3H/2C) Panel with ESP Kit | iO HVAC Controls

Introducing the ZP3-HPS-ESP-KIT from iO HVAC Controls - an advanced solution for your HVAC control needs. This 3 Zone 3H/2C Heat Pump Kit provides precise temperature management for industrial and commercial settings. Its intuitive interface and robust construction make it an ideal choice for demanding applications. The ZP3-HPS-ESP-KIT features a user-friendly touchscreen display for easy programming and monitoring. Its programmable logic controller ensures efficient operation, while the ESP communication protocol enables integration with your existing building management system. Engineered for durability, this kit boasts a heavy-duty enclosure that protects its internal components from harsh environments. Its compact design allows for convenient installation in tight spaces. Maximize energy efficiency and enhance comfort levels with the ZP3-HPS-ESP-KIT. Trust our HVAC supply store for the best prices and fast shipping on all your HVAC control needs. Shop now!

Our ESP zone panels integrate our 2 and 3 zone panels with our award-winning ESP, Electronic Static Pressure, technology. Each panel comes with a static pressure sensor. As zone dampers open and close, the static pressure sensor continuously monitors the system static pressure. If the static pressure goes above the static pressure setpoint, the panel will send a signal to all non-calling zone dampers to begin opening to a point where the static pressure setpoint is maintained. This eliminates the need for a conventional bypass damper.

The ZP2-HC-ESP is a single-stage heat/cool zone panel designed to control 2 zones in residential and light commercial applications. The ZP3-HPS-ESP model is designed to fit 3 zone applications for heat pump and dual fuel systems in residential and light commercial applications. The ZP3-HCMS-ESP model is designed to fit 3 zone applications for multi-stage heating and cooling in residential and light commercial applications.

Features and Benefits:

• Built-in static pressure monitoring eliminates the need for a bypass damper
• Auto changeover
• First call priority with time share
• LED status indication
• Independent fan control by zone
• Short cycle protection
• Competitively priced
• For use with 2 or 3 wire dampers*
• Adjustable high and low limit
• Adjustable high and low balance point (HPS)

Warranty: 10 years
