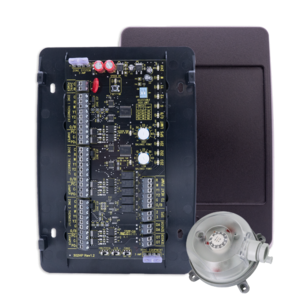

ZP3-HPS-ESP | Three Zone (3H/2C) Zone Panel with ESP | iO HVAC Controls

iO HVAC Controls' ZP3-HPS-ESP provides precise HVAC control for up to three zones with up to 3H/2C capacity. This device features advanced technology, delivering efficient and reliable performance. The ZP3-HPS-ESP offers flexibility with its compatibility with various systems, including heat pumps, conventional systems, and boilers. Its sophisticated algorithms optimize energy usage, reducing operating costs while maintaining comfort levels. Additional features include programmable setback schedules, customizable temperature settings, and remote monitoring capabilities, enabling convenient control and energy savings. Trust the ZP3-HPS-ESP for exceptional HVAC performance in commercial and industrial applications. Our HVAC supply store offers competitive prices and swift shipping for your HVAC needs.

Our ESP zone panels integrate our 2 and 3 zone panels with our award-winning ESP, Electronic Static Pressure, technology. Each panel comes with a static pressure sensor. As zone dampers open and close, the static pressure sensor continuously monitors the system static pressure. If the static pressure goes above the static pressure setpoint, the panel will send a signal to all non-calling zone dampers to begin opening to a point where the static pressure setpoint is maintained. This eliminates the need for a conventional bypass damper.

The ZP2-HC-ESP is a single-stage heat/cool zone panel designed to control 2 zones in residential and light commercial applications. The ZP3-HPS-ESP model is designed to fit 3 zone applications for heat pump and dual fuel systems in residential and light commercial applications. The ZP3-HCMS-ESP model is designed to fit 3 zone applications for multi-stage heating and cooling in residential and light commercial applications.

Features and Benefits:

•  Built-in static pressure monitoring eliminates the need for a bypass damper
• Auto changeover
• First call priority with time share
• LED status indication
• Independent fan control by zone
• Short cycle protection
• Competitively priced
• For use with 2 or 3 wire dampers*
• Adjustable high and low limit
• Adjustable high and low balance point (HPS)

Warranty: 10 years
