XEC-3004 | Transducer: E/I-P, OVERRIDE | KMC Controls

E-P, I-P Transducer with Manual Auto Jump or Reset, XEC-3004 by KMC Controls The XEC-3004 transducer from KMC Controls is designed for precise data monitoring and control in various industrial applications. It features a manual auto jump or reset function, allowing for convenient and flexible operation. Crafted with high-quality components, this transducer offers exceptional reliability and accuracy. Its robust construction ensures durability and longevity, making it ideal for demanding industrial environments. The XEC-3004 transducer is compatible with various systems, providing versatility and ease of integration. Its intuitive design simplifies installation and maintenance, reducing downtime and maximizing efficiency. With its advanced features and proven performance, the XEC-3004 transducer is an essential tool for industrial engineers and maintenance professionals seeking reliable and efficient solutions. Our HVAC supply store offers competitive pricing and swift shipping on all KMC Controls products. Get yours today and experience the difference!

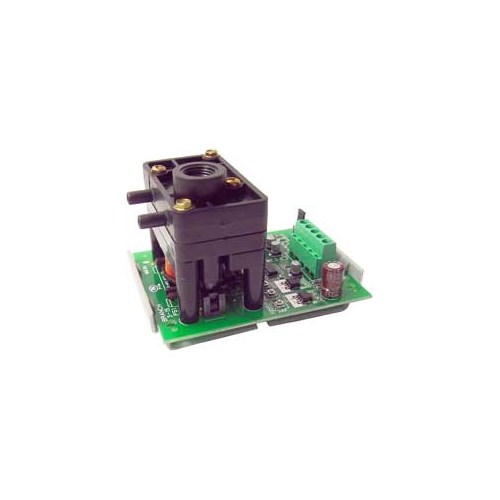

The KMC XEC-3001/3004 E/I-P Transducer converts an analog voltage (E) or current (I) signal into a linear pneumatic (P) output signal for accurate positioning of damper and valve actuators used in HVAC systems.

The transducer is not a position sensitive device. It provides a direct output feedback signal for branch line pressure.

 The unit can be powered by either 24 VAC or 24 VDC. Three selectable input ranges are available. The analog voltage signal may be either 1-5 VDC or 2-10 VDC; the analog current signal of 4-20 mA provides a 3-15 psi linear pneumatic output signal. A 1-5 VDC output feedback signal, proportional and linear to the 3-15 psi output signal, is provided. A gauge tap is also provided for pressure output indication. Standard 3.25″ Snap Track is supplied for mounting.

The XEC-3004 is the XEC-3001 module with a manual (H/O/A) override.

The discontinued XEC-3002 was the XEC-3001 module mounted in an enclosure. It is replaced by the XEC-3001 and an enclosure purchased elsewhere.

ApplicationThe XEC-3001/3004 E/I-P Transducer is used in HVAC systems to provide an accurate signal forpositioning damper and valve actuators based on branch line pressure.
