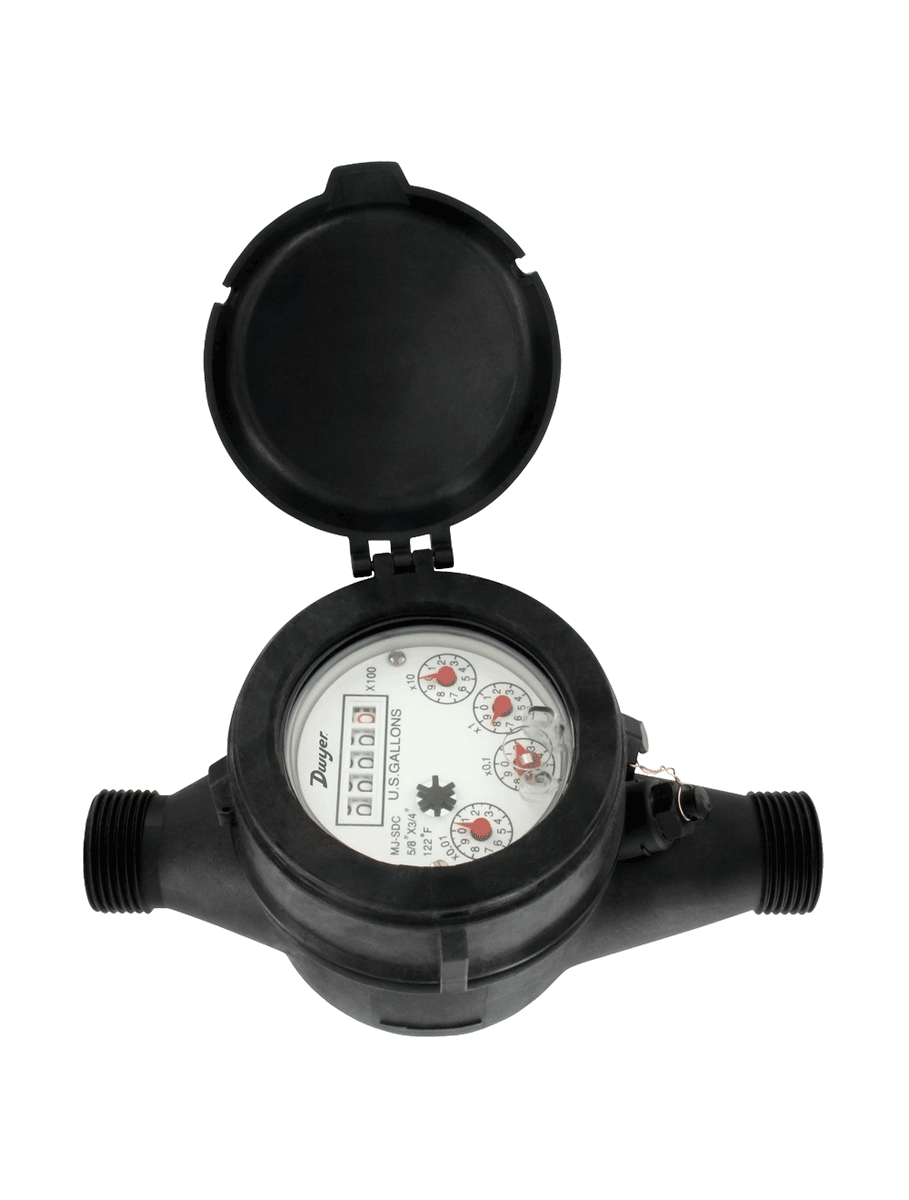

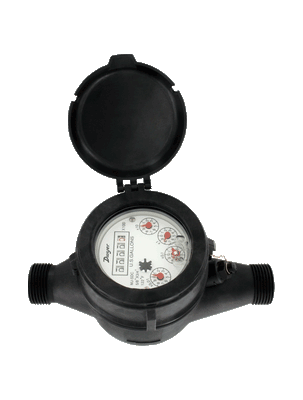

WPT-A-C-04-1 | Multi-Jet plastic water meter | 1" pipe size with 1 gal pulse output. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to WPT-A-C-04-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments WPT-A-C-04-1 Documents

Instruction Manual Series WPT Catalog Page WPT More Info

Overview

Details for WPT-A-C-04-1

WPT Multi-Jet Water Meter 1" [SKU: WPT-A-C-04-1]Dwyer Instruments WPT Multi-Jet Water Meter [SKU: WPT-A-C-04-1] is a highly accurate and reliable device designed to measure water flow rates in commercial and industrial applications. With its multi-jet design, this meter ensures minimal pressure loss while providing precise measurement. The robust construction and corrosion-resistant materials guarantee durability and longevity in demanding environments. Applications: Water flow measurement in commercial and industrial settings Flow monitoring in piping systems Process control and automation Features: Multi-jet design for low pressure loss Corrosion-resistant materials for durability Accuracy class of 3% Flow rate range of 5 GPM to 50 GPM 1" NPT connections [CTA] our HVAC supply store offers the best prices and fast shipping for your products!

SERIES WPT MULTI-JET PLASTIC WATER METER

Lead Free, Economical Plastic Body, Pulse Output

The Series WPT Plastic Multi-Jet Water Meters are a series of mechanical, water totalizing meters that display the total water usage in gallons with m3 options. They are available in a range of body sizes and include NPT or BSPT optional couplings. The plastic body water meters can be used in potable water applications, some corrosive environments, or where an economical water totalizer is desired.

Product Applications

Low cost residential water measurement
Agriculture (fertilizers, pesticides, and herbicides)
Irrigation
Remote water monitoring

Plastic body ideal for lead free requirements
Multi-jet design allows for simplicity and accuracy with wide flow ranges, even in low flow applications
Magnetically driven, hermetically sealed register does not leak or fog and is completely separated from the water
Designed for long service life and maintenance-free operation
Integral strainer that protects meter from particulate damage
Easy installation with included coupling adapters
Pulsed output proportional to flow allows for remote flow totalization

Specifications

Series: WPT MULTI-JET PLASTIC WATER METER
Category/Type: Flow
Type: Water Meters
Series: WPT MULTI-JET PLASTIC WATER METER
Service: Water.
Wetted Materials: Body: Nylon 66; Couplings: Nylon 66; 1-1/2" (40 mm) sizes lead free ECO BRASS® ; Measuring Chamber: ABS Plastic.
Flow Range: See model chart on catalog page.
Accuracy: WPT-A-X-XX: Transitional Flow: ±3%; Nominal Flow: ±1.5%.
Temperature Limit: 122°F (50°C).
Pressure Limit: 150 psi (10 bar).
Totalizing Display Maximum: See model chart on catalog page.
Output Signal: Pulse output with frequency proportional to flow rate.
Pulse Options: 0.1 gal; 1 gal; 10 gal; 100 gal per pulse (1 L; 10 L; 100 L; 1000 per pulse) See model chart. (Consult factory for m3; BSPT units or additional pulse output options)
Electrical Rating: 0.01 A @ 24 VAC/DC.
Electrical Connections: Color-coded lead wires; 4.5' (1.5 m) long.
Mounting Orientation: Horizontal with register facing up.
Weight: See dimension chart on catalog page.
