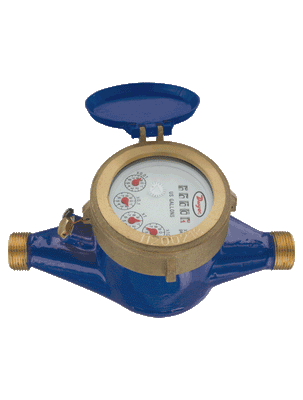

WMT2-B-C-10-1 | 3/4" BSPT (20mm)brass multi-jet water meter (m3/h) | with pulse output | 1 L/pulse. | Dwyer Instruments
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to WMT2-B-C-10-1
Documents and manuals
Dwyer Instruments WMT2-B-C-10-1 Documents
Overview
Details for WMT2-B-C-10-1
WMT2-B-C-10-1 Water Meter by Dwyer InstrumentsThis WTR METER, 20MM PIPE SIZE from Dwyer Instruments [sku] is a reliable and precise solution for measuring water flow. Engineered with a durable construction, it ensures exceptional longevity and accuracy in demanding industrial environments. Its compatibility with 20mm pipes makes it a versatile choice for various applications. Whether you're a maintenance professional or an industrial engineer, this water meter provides reliable data for effective flow monitoring and control. Our HVAC supply store offers the best prices and fast shipping on this essential tool. Order now for prompt delivery and exceptional customer support!
SERIES WM2 & WMT2 MULTI-JET WATER METER
Economical, Brass Body, Dry Dial
The Series WM2 Multi-Jet Water Meter is a series of mechanical, water totalizing meters that display the total water usage in gallons or m³. They are available in a range of body sizes and include NPT or BSPT couplings.
The Series WMT2 Multi-Jet Water Meter with Pulsed Output is a series of mechanical, water totalizing meters that display the total water usage in gallons or m³ and provide a reed switch output proportional to flow rate. They are available in a range of body sizes and include NPT or BSPT couplings.
Not for potable water use, brass contains lead in excess of low lead limits.
Product Applications
- Irrigation
- Cooling systems
- Filtration systems
- Water monitoring
- Multi-jet design allows for simplicity and accuracy with wide flow ranges, even in low flow applications
- Magnetically driven, hermetically sealed register does not leak or fog and is completely separated from the water
- Designed for long service live and maintenance-free operation, even under harsh conditions
- Integral strainer that protects meter from particulate damage
- Easy installation with included coupling adapters
Specifications
- Series
- WM2 & WMT2 MULTI-JET WATER METER
- Category/Type
- Flow
- Type
- Water Meters
- Series
- WM2 & WMT2 MULTI-JET WATER METER
- Service
- Water.
- Wetted Materials
- Body: Brass; polyethylene; Couplings: Brass; Measuring Chamber: Polyethylene; ABS plastic; ferrite; acetal.
- Flow Range
- See model chart on catalog page.
- Accuracy
- Transitional flow: ±5%; Nominal flow: ±2%.
- Temperature Limit
- 104°F (40°C).
- Pressure Limit
- 232 psi (16 bar).
- Totalizing Display Maximum
- See model chart on catalog page.
- Output Signal
- Pulse output with frequency proportional to flow rate (WMT2 only).
- Pulse Options
- 0.1 gal; 1 gal; 10 gal; 100 gal per pulse (1 L; 10 L; 100 L per pulse) (WMT2 only).
- Electrical Rating
- 0.01 A @ 24 VAC/DC (WMT2 only).
- Electrical Connections
- Color-coded lead wires; 4.5´ (1.5 m) long (WMT2 only).
- Mounting Orientation
- Horizontal with the register face pointing up.
- Weight
- See dimension chart on catalog page.
