WMT2-B-C-08-1 | 1/2" BSPT (15mm) brass multi-jet water meter (m3/h) | with pulse output | 1 L/pulse. | Dwyer Instruments

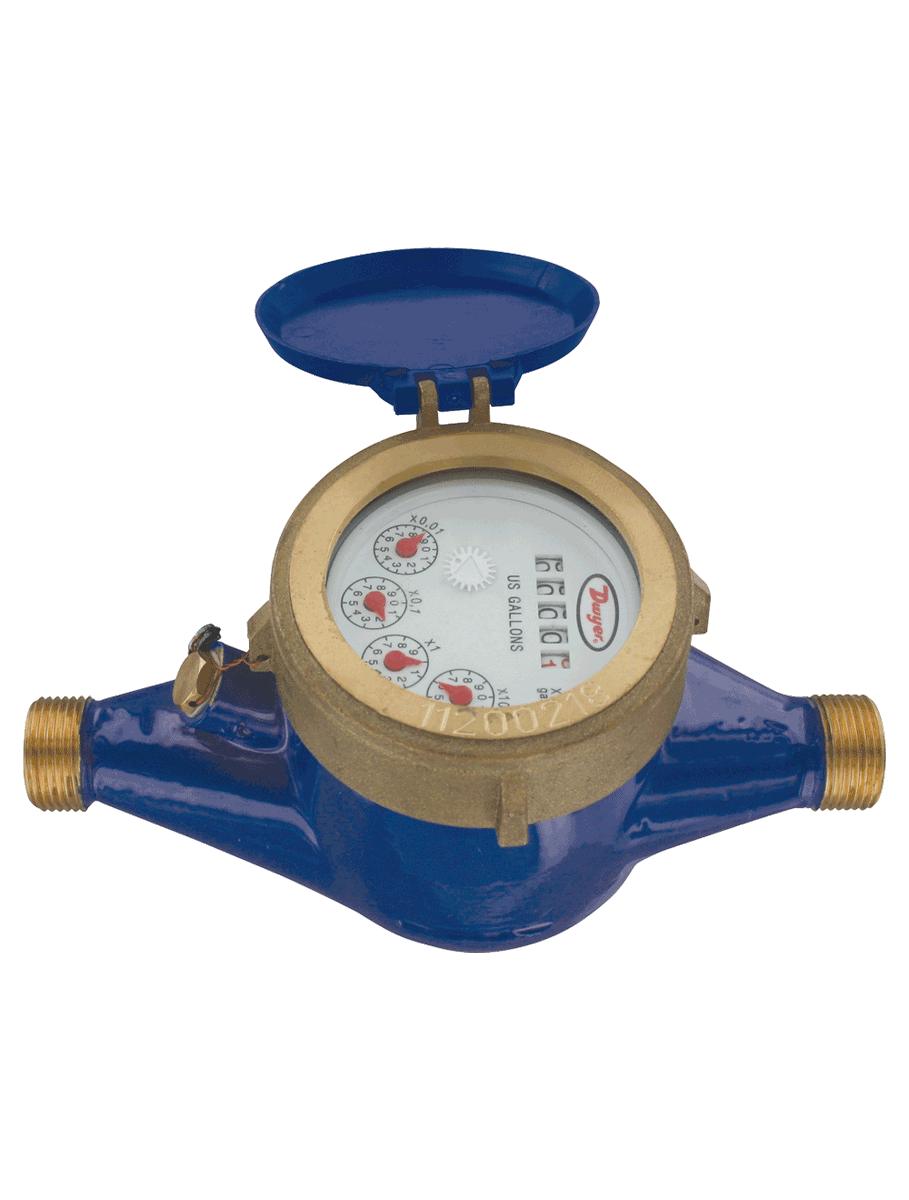

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to WMT2-B-C-08-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments WMT2-B-C-08-1 Documents

WM2 Instruction Manual WMT2 Instruction Manual Series WM2 & WMT2 Catalog Page More Info

Overview

Details for WMT2-B-C-08-1

Dwyer Instruments WMT2-B-C-08-1 Water Meter: Precision Liquid Measurement The WMT2-B-C-08-1 Water Meter from Dwyer Instruments is a highly accurate and dependable device designed specifically for measuring water flow in pipes with a 15mm diameter. This meter stands out with its exceptional accuracy, making it an ideal choice for applications where precise liquid measurement is critical. This water meter boasts a robust construction, ensuring durability and longevity in industrial settings. Its compact design allows for easy installation in tight spaces, while its simple operation makes it user-friendly. With the Dwyer Instruments WMT2-B-C-08-1 Water Meter, you'll benefit from accurate and reliable measurement of water flow. Its industrial-grade design ensures long-lasting performance, and its compact form makes it suitable for diverse applications. Shop our HVAC supply store for the best prices, fast shipping, and the highest quality industrial products. Trust us to fulfill your supply needs with efficiency and expertise.

SERIES WM2 & WMT2 MULTI-JET WATER METER

Economical, Brass Body, Dry Dial

The Series WM2 Multi-Jet Water Meter is a series of mechanical, water totalizing meters that display the total water usage in gallons or m³. They are available in a range of body sizes and include NPT or BSPT couplings.

The Series WMT2 Multi-Jet Water Meter with Pulsed Output is a series of mechanical, water totalizing meters that display the total water usage in gallons or m³ and provide a reed switch output proportional to flow rate. They are available in a range of body sizes and include NPT or BSPT couplings.

Not for potable water use, brass contains lead in excess of low lead limits.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Irrigation
Cooling systems
Filtration systems
Water monitoring

Multi-jet design allows for simplicity and accuracy with wide flow ranges, even in low flow applications
Magnetically driven, hermetically sealed register does not leak or fog and is completely separated from the water
Designed for long service live and maintenance-free operation, even under harsh conditions
Integral strainer that protects meter from particulate damage
Easy installation with included coupling adapters

Specifications

Series: WM2 & WMT2 MULTI-JET WATER METER
Category/Type: Flow
Type: Water Meters
Series: WM2 & WMT2 MULTI-JET WATER METER
Service: Water.
Wetted Materials: Body: Brass; polyethylene; Couplings: Brass; Measuring Chamber: Polyethylene; ABS plastic; ferrite; acetal.
Flow Range: See model chart on catalog page.
Accuracy: Transitional flow: ±5%; Nominal flow: ±2%.
Temperature Limit: 104°F (40°C).
Pressure Limit: 232 psi (16 bar).
Totalizing Display Maximum: See model chart on catalog page.
Output Signal: Pulse output with frequency proportional to flow rate (WMT2 only).
Pulse Options: 0.1 gal; 1 gal; 10 gal; 100 gal per pulse (1 L; 10 L; 100 L per pulse) (WMT2 only).
Electrical Rating: 0.01 A @ 24 VAC/DC (WMT2 only).
Electrical Connections: Color-coded lead wires; 4.5´ (1.5 m) long (WMT2 only).
Mounting Orientation: Horizontal with the register face pointing up.
Weight: See dimension chart on catalog page.
