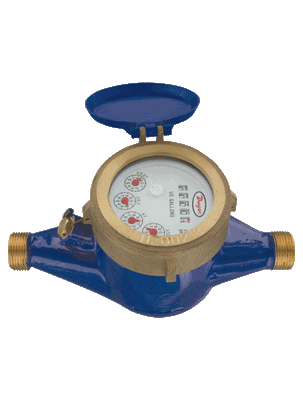

WMT2-A-C-03 | 3/4" brass multi-jet water meter (GPM) | with pulse output | 0.1 Gal/pulse. | Dwyer Instruments
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to WMT2-A-C-03
Documents and manuals
Dwyer Instruments WMT2-A-C-03 Documents
Overview
Details for WMT2-A-C-03
WTR METER, 3/4" SHORT PULSE from Dwyer Instruments
Dwyer Instruments' WMT2-A-C-03 is a water meter designed for commercial and industrial applications. This compact and versatile meter provides accurate measurement of water flow rate and total consumption. The short pulse output makes it easy to integrate with data loggers and other monitoring systems.
Featuring a robust design and corrosion-resistant materials, the WMT2-A-C-03 is built to withstand the demands of harsh environments. With a 3/4-inch connection size, it accommodates a wide range of pipe sizes. Its compact size makes it easy to install in tight spaces.
Additional features of the WMT2-A-C-03 include:
* Accuracy of ±2% over a wide flow range
* Pulse output of 1 pulse per gallon
* IP67 ingress protection rating
* Temperature rating of 14°F to 140°F
The WMT2-A-C-03 is ideal for monitoring water consumption, leak detection, and process control applications. Its reliability and accuracy make it a trusted choice for industrial engineers and maintenance professionals.
Shop now at our HVAC supply store for the best prices and fast shipping on the WMT2-A-C-03 Water Meter!
SERIES WM2 & WMT2 MULTI-JET WATER METER
Economical, Brass Body, Dry Dial
The Series WM2 Multi-Jet Water Meter is a series of mechanical, water totalizing meters that display the total water usage in gallons or m³. They are available in a range of body sizes and include NPT or BSPT couplings.
The Series WMT2 Multi-Jet Water Meter with Pulsed Output is a series of mechanical, water totalizing meters that display the total water usage in gallons or m³ and provide a reed switch output proportional to flow rate. They are available in a range of body sizes and include NPT or BSPT couplings.
Not for potable water use, brass contains lead in excess of low lead limits.
Product Applications
- Irrigation
- Cooling systems
- Filtration systems
- Water monitoring
- Multi-jet design allows for simplicity and accuracy with wide flow ranges, even in low flow applications
- Magnetically driven, hermetically sealed register does not leak or fog and is completely separated from the water
- Designed for long service live and maintenance-free operation, even under harsh conditions
- Integral strainer that protects meter from particulate damage
- Easy installation with included coupling adapters
Specifications
- Series
- WM2 & WMT2 MULTI-JET WATER METER
- Category/Type
- Flow
- Type
- Water Meters
- Series
- WM2 & WMT2 MULTI-JET WATER METER
- Service
- Water.
- Wetted Materials
- Body: Brass; polyethylene; Couplings: Brass; Measuring Chamber: Polyethylene; ABS plastic; ferrite; acetal.
- Flow Range
- See model chart on catalog page.
- Accuracy
- Transitional flow: ±5%; Nominal flow: ±2%.
- Temperature Limit
- 104°F (40°C).
- Pressure Limit
- 232 psi (16 bar).
- Totalizing Display Maximum
- See model chart on catalog page.
- Output Signal
- Pulse output with frequency proportional to flow rate (WMT2 only).
- Pulse Options
- 0.1 gal; 1 gal; 10 gal; 100 gal per pulse (1 L; 10 L; 100 L per pulse) (WMT2 only).
- Electrical Rating
- 0.01 A @ 24 VAC/DC (WMT2 only).
- Electrical Connections
- Color-coded lead wires; 4.5´ (1.5 m) long (WMT2 only).
- Mounting Orientation
- Horizontal with the register face pointing up.
- Weight
- See dimension chart on catalog page.
