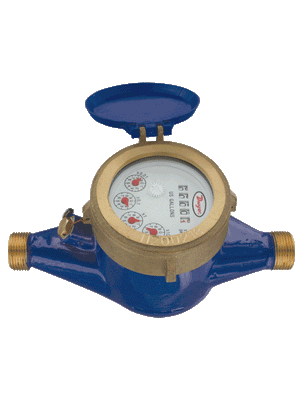

WMT2-A-C-02 | 5/8" x 3/4" brass multi-jet water meter (GPM) | with pulse output | 0.1 Gal/pulse. | Dwyer Instruments
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to WMT2-A-C-02
Documents and manuals
Dwyer Instruments WMT2-A-C-02 Documents
Overview
Details for WMT2-A-C-02
The Dwyer Instruments WMT2-A-C-02 is a water meter designed for measuring water flow in various industrial and commercial applications. This multi-jet water meter features a 5/8" inlet and 3/4" outlet, making it suitable for a wide range of flow rates.
Crafted from durable materials, the WMT2-A-C-02 ensures longevity and reliability in demanding environments. Its compact design allows for easy installation and maintenance.
Key Features:
- 5/8" inlet and 3/4" outlet
- Multi-jet design for accurate flow measurement
- Durable construction for long-lasting performance
Applications:
- Industrial water systems
- Commercial water monitoring
- Irrigation systems
Our HVAC supply store offers the best prices and fast shipping on the Dwyer Instruments WMT2-A-C-02 water meter. Trust us for all your industrial supply needs!
SERIES WM2 & WMT2 MULTI-JET WATER METER
Economical, Brass Body, Dry Dial
The Series WM2 Multi-Jet Water Meter is a series of mechanical, water totalizing meters that display the total water usage in gallons or m³. They are available in a range of body sizes and include NPT or BSPT couplings.
The Series WMT2 Multi-Jet Water Meter with Pulsed Output is a series of mechanical, water totalizing meters that display the total water usage in gallons or m³ and provide a reed switch output proportional to flow rate. They are available in a range of body sizes and include NPT or BSPT couplings.
Not for potable water use, brass contains lead in excess of low lead limits.
Product Applications
- Irrigation
- Cooling systems
- Filtration systems
- Water monitoring
- Multi-jet design allows for simplicity and accuracy with wide flow ranges, even in low flow applications
- Magnetically driven, hermetically sealed register does not leak or fog and is completely separated from the water
- Designed for long service live and maintenance-free operation, even under harsh conditions
- Integral strainer that protects meter from particulate damage
- Easy installation with included coupling adapters
Specifications
- Series
- WM2 & WMT2 MULTI-JET WATER METER
- Category/Type
- Flow
- Type
- Water Meters
- Series
- WM2 & WMT2 MULTI-JET WATER METER
- Service
- Water.
- Wetted Materials
- Body: Brass; polyethylene; Couplings: Brass; Measuring Chamber: Polyethylene; ABS plastic; ferrite; acetal.
- Flow Range
- See model chart on catalog page.
- Accuracy
- Transitional flow: ±5%; Nominal flow: ±2%.
- Temperature Limit
- 104°F (40°C).
- Pressure Limit
- 232 psi (16 bar).
- Totalizing Display Maximum
- See model chart on catalog page.
- Output Signal
- Pulse output with frequency proportional to flow rate (WMT2 only).
- Pulse Options
- 0.1 gal; 1 gal; 10 gal; 100 gal per pulse (1 L; 10 L; 100 L per pulse) (WMT2 only).
- Electrical Rating
- 0.01 A @ 24 VAC/DC (WMT2 only).
- Electrical Connections
- Color-coded lead wires; 4.5´ (1.5 m) long (WMT2 only).
- Mounting Orientation
- Horizontal with the register face pointing up.
- Weight
- See dimension chart on catalog page.
