Get your Special Pricing!

Brand: Dwyer InstrumentsSKU: WM2-A-C-07

List Price
~~$1,423.00~~

$474.34

Availability: This product is currently available to purchase

Orders over $999 ship FREE*

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

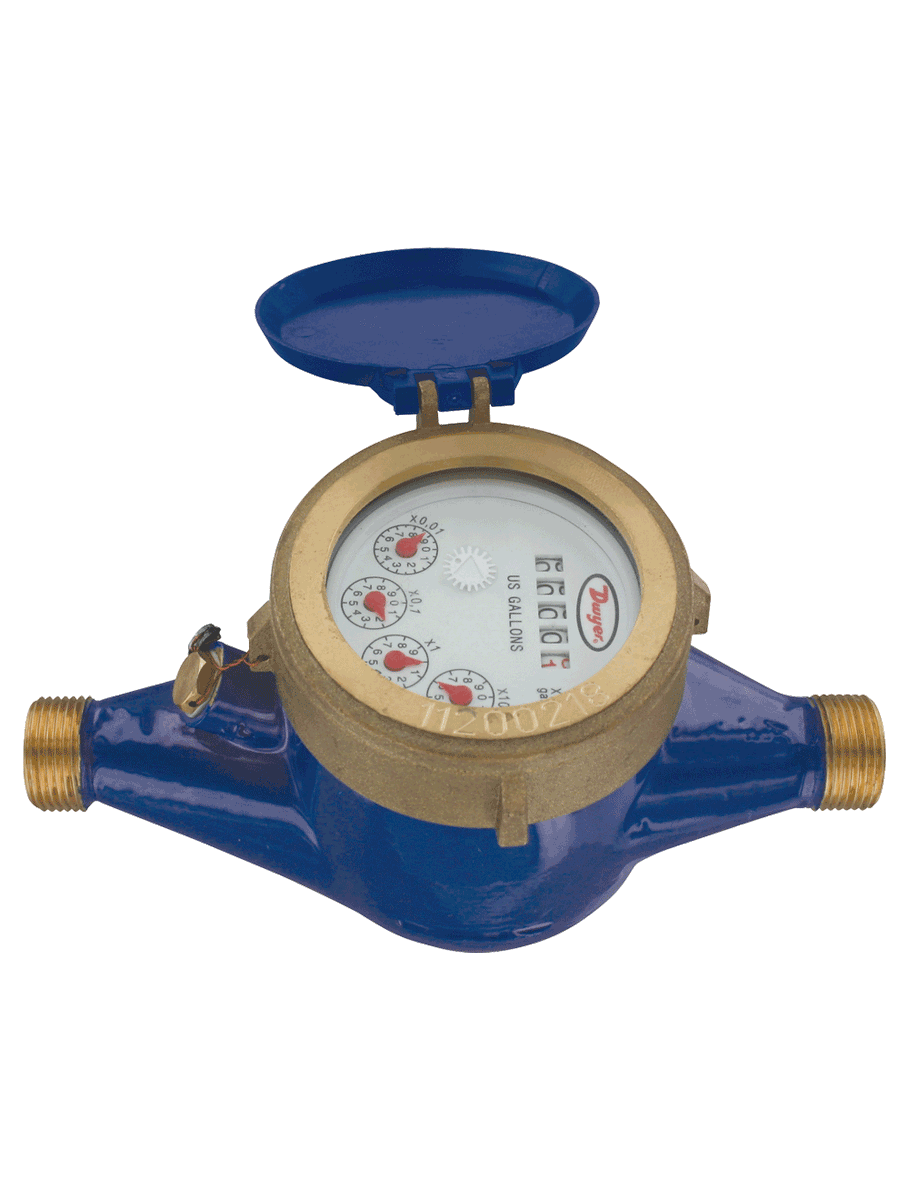

WM2-A-C-07 | 2" brass multi-jet water meter (GPM). | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to WM2-A-C-07

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments WM2-A-C-07 Documents

WM2 Instruction Manual WMT2 Instruction Manual Series WM2 & WMT2 Catalog Page More Info

Overview

Details for WM2-A-C-07

WM2-A-C-07 Dwyer Water Meter: Precision Water Flow Measurement The WM2-A-C-07 Water Meter from Dwyer Instruments is an industrial-grade flow meter designed to provide accurate and reliable water flow measurements. Featuring a 2" NPT connection, this meter is ideal for applications requiring large flow capacities of up to 160 GPM. Crafted from durable materials, the WM2-A-C-07 boasts a robust construction that ensures longevity and resistance to harsh industrial environments. Its precision design minimizes pressure loss, making it an energy-efficient choice for your measurement needs. Key Features: - 2" NPT connection - Flow range: 0.5 to 160 GPM - Accuracy: Â±2% of reading - Repeatability: Â±0.5% of reading - Pressure loss: 0.5 psi at 160 GPM - Operating temperature: 32 to 120Â°F (0 to 49Â°C) Applications: - Industrial water systems - Irrigation systems - Process control - Energy management Choose our HVAC supply store for the best prices and fast shipping on your WM2-A-C-07 Water Meter. Our commitment to customer satisfaction guarantees a hassle-free purchasing experience. Contact us today to learn more about this exceptional water flow measurement solution!

SERIES WM2 & WMT2 MULTI-JET WATER METER

Economical, Brass Body, Dry Dial

The Series WM2 Multi-Jet Water Meter is a series of mechanical, water totalizing meters that display the total water usage in gallons or m³. They are available in a range of body sizes and include NPT or BSPT couplings.

The Series WMT2 Multi-Jet Water Meter with Pulsed Output is a series of mechanical, water totalizing meters that display the total water usage in gallons or m³ and provide a reed switch output proportional to flow rate. They are available in a range of body sizes and include NPT or BSPT couplings.

Not for potable water use, brass contains lead in excess of low lead limits.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Irrigation
Cooling systems
Filtration systems
Water monitoring

Multi-jet design allows for simplicity and accuracy with wide flow ranges, even in low flow applications
Magnetically driven, hermetically sealed register does not leak or fog and is completely separated from the water
Designed for long service live and maintenance-free operation, even under harsh conditions
Integral strainer that protects meter from particulate damage
Easy installation with included coupling adapters

Specifications

Series: WM2 & WMT2 MULTI-JET WATER METER
Category/Type: Flow
Type: Water Meters
Series: WM2 & WMT2 MULTI-JET WATER METER
Service: Water.
Wetted Materials: Body: Brass; polyethylene; Couplings: Brass; Measuring Chamber: Polyethylene; ABS plastic; ferrite; acetal.
Flow Range: See model chart on catalog page.
Accuracy: Transitional flow: ±5%; Nominal flow: ±2%.
Temperature Limit: 104°F (40°C).
Pressure Limit: 232 psi (16 bar).
Totalizing Display Maximum: See model chart on catalog page.
Output Signal: Pulse output with frequency proportional to flow rate (WMT2 only).
Pulse Options: 0.1 gal; 1 gal; 10 gal; 100 gal per pulse (1 L; 10 L; 100 L per pulse) (WMT2 only).
Electrical Rating: 0.01 A @ 24 VAC/DC (WMT2 only).
Electrical Connections: Color-coded lead wires; 4.5´ (1.5 m) long (WMT2 only).
Mounting Orientation: Horizontal with the register face pointing up.
Weight: See dimension chart on catalog page.
