VU443A1008/B | TWO-POSITION ACTUATOR FOR VU53 N.C. VALVE BODIES, 120V 60HZ | Resideo

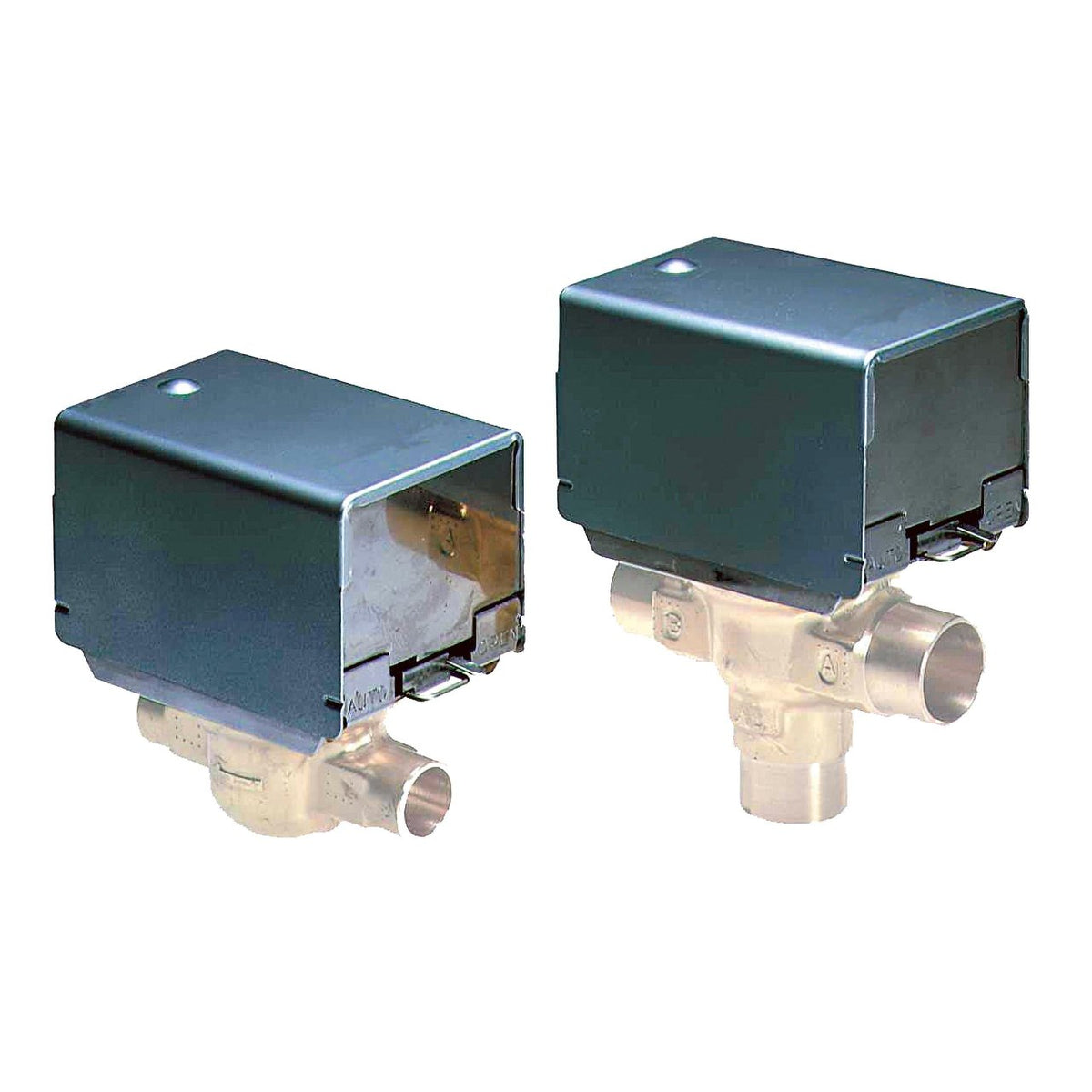

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VU443A1008/B
Documents and manuals
Resideo VU443A1008/B Documents
Overview
Details for VU443A1008/B
Resideo VU443A1008/B Valve Actuator: Precision Control for Industrial Systems
The Resideo VU443A1008/B Valve Actuator delivers exceptional performance and reliability for industrial applications. This 120V, 60Hz actuator is designed to provide precise control for valves with a 6-inch stroke.
Featuring a rugged construction, the actuator withstands demanding operating conditions, ensuring longevity and durability. Its advanced design minimizes noise and vibration, making it suitable for use in various industrial environments.
The VU443A1008/B Actuator is compatible with various valve systems, making it versatile for different applications. Its compact size and ease of installation simplify integration into existing or new systems.
Benefits:
- Precise valve control for enhanced system performance
- Durable design for reliable operation in demanding environments
- Compatibility with various valve systems for versatile applications
- Compact size and easy installation for quick and efficient integration
- Quiet operation minimizes noise and vibration
Applications:
- Industrial process control systems
- Automated valve actuation in manufacturing and production facilities
- HVAC systems for temperature regulation
- Water treatment and distribution systems
Shop now at our HVAC supply store for the best prices and fast shipping on the Resideo VU443A1008/B Valve Actuator. Upgrade your industrial systems with precision control and exceptional performance!
Specifications
- Application
- HVAC
- Dimensions (in.)
- 2 3/8 in. high, 3 1/2 in. wide, 2 3/8 in. wide
- Dimensions (mm)
- 62 mm high, 88 mm wide, 60 mm deep
- Used With
- 2-way NC VU valve body (VU53)
- Materials
- Stainless Case, Aluminum Cover
- Comments
- For controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors
- Item Type
- Product
- Frequency
- 60 Hz
- Approvals, Canadian Standards Association
- Certified C/US File No. LR1322
- Electrical Connections
- Leads
- Supply Voltage
- 120V
- Power Consumption
- Driving-- 6 Watts
- Ambient Temperature Range (C)
- 1 C to 52 C ambient at 93 C Fluid
- Ambient Temperature Range (F)
- 34 F to 125 F ambient at 200 F Fluid
- Electrical Connections (in.)
- 6 in.
- Electrical Connections (mm)
- 0.15 m
- Internal Auxiliary Switch
- 0
- Fluid Temperature (C)
- 94 C
- Fluid Temperature (F)
- 200 F
- Actuator Type
- Valve
- Control Signal
- Two position; SPST
- Fail Safe Mode
- Spring Return
- Stroke (in.)
- 22 deg.
- Timing, Nominal
- Driving @ 60 Hz (sec)-- 15 sec maximum
- Spring Return Timing
- Nominal-- 4 sec
- Maximum Differential Pressure Ratings (Close-off) (psi)
- Depends on Cv rating of valve
- Maximum Differential Pressure Ratings (Close-off) (kPa)
- Depends on Cv rating of valve
- Manual operation
- Lever
