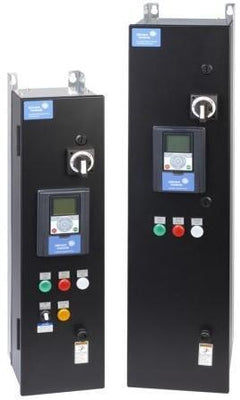

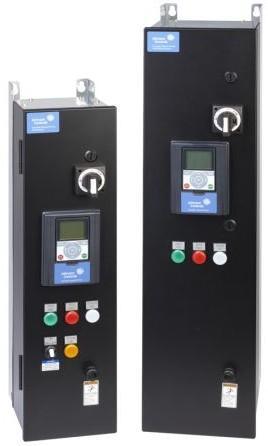

VS031410B-00000 | VSD II 20HP/15KW; 480V; VSD SERIES II; 20HP (15 KW); 480VAC; NEMA TYPE 1; BACNET & N2 | Johnson Controls

Johnson Controls VS031410B-00000 20HP 480V NEMA1 VFD The Johnson Controls VS031410B-00000 20HP 480V NEMA1 VFD is a variable frequency drive (VFD) designed for industrial applications. It offers precise control over motor speed and torque, improving efficiency and extending motor life. This VFD features a compact and rugged design, suitable for harsh industrial environments. It supports a wide range of motor speeds, allowing for precise process control and optimization. The NEMA1 enclosure provides protection from dust, dirt, and other contaminants. The VS031410B-00000 is equipped with advanced control algorithms for smooth and efficient operation. It supports various communication protocols, enabling easy integration with control systems and monitoring devices. Applications: * Industrial machinery * Conveyors * Fans and pumps * Process control systems * Material handling equipment With its high performance, reliability, and versatility, the Johnson Controls VS031410B-00000 20HP 480V NEMA1 VFD is an excellent choice for demanding industrial applications. Shop now at our HVAC supply store for the best prices and fast shipping!

Description

The Johnson Controls® VSD Series II Variable Speed Open Drives, powered by Eaton® technology, are specifically engineered for HVAC, pump, and fluid control applications. The ultra-efficient DC capacitor and power structure allow the drives to consume less energy, which lowers greenhouse gases.

The input/output (I/O) configuration is designed with wiring ergonomics in mind by including removable terminal blocks. The main, easily removable control board that is used for all drive frames has six digital IN, two analog IN, one analog OUT, three relay OUT, and two expansion slots for I/O or communication boards. In addition, the control board has built-in RS-485 and Ethernet communication.

These drives continue the tradition of robust performance and raise the bar on features and functionality, which ensures the best solution at the right price.

VSD Series II Variable Speed Open Drives are selected using VSD Series II code numbers and standard Johnson Controls order entry tools.

Features

• Patented Active Energy Control Algorithm—Achieves an additional 2% to 8% energy savings when compared to competitive products.
• HAND/OFF/AUTO and DRIVE/BYPASS Selector on Keypad—Simplifies control.
• Copy/Paste Function—Allows the transfer of parameter settings from one drive to the next.
• Versatile Keypad—Displays up to nine monitored parameters simultaneously.
• EMI/RFI Filters Standard on All Drives (Frame 4 through Frame 9)—Meet EMC Category 2 requirements.
• Motor Overload, Underload, and Stall Protections—Protect against premature motor failure.
• BACnet® MS/TP, BACnet IP, MODBUS®, and N2 Network Protocols—Provide a wide variety of communication protocols to meet the needs of many applications.
