VR30-3 | LAN-C | VARIABLE SPEED | HIGH EFFICIENCY | WET-ROTOR CIRC3" | Taco

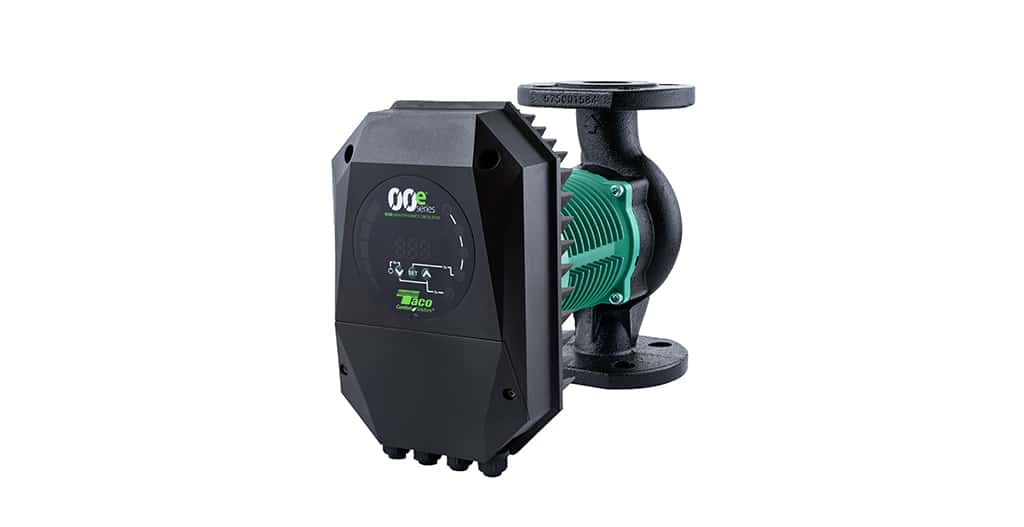

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VR30-3

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Taco VR30-3 Documents

Datasheet Installation Instructions More Info

Overview

Details for VR30-3

The VR30-3 pump from Taco is a 3-inch model with a maximum pressure of 175 pounds per square inch (psi) and a flow rate of 0.054 to 2.175 horsepower (hp). It is a centrifugal pump that uses a rotating impeller to move liquid. The VR30-3 is made of cast iron and has a stainless steel shaft. It is designed for use in a variety of industrial applications, including water supply, irrigation, and chemical processing. It is known for its performance, durability, and reliability. Shop our HVAC supply store for the best prices and fast shipping.

High-Efficiency Meets High Performance

Self-sensing ECM for HVAC and NSF Commercial Hot Applications

The Taco 00e^® VR series are ECM high-efficiency, wet-rotor, self-sensing commercial circulators ideal for HVAC and potable water applications. The wide range of models with Low, Medium, or High head options provide differential head pressures up to 65 ft. and flow ranges up to 320 GPM. BMS communication with Modbus, BACnet, 0-10Vdc, and PWM come standard while high-efficiency ECM technology reduces power consumption up to 85%. The stainless steel models are NSF 61 & 372 domestic and commercial hot rated.

Performance Data

Flow Range: 0-320 GPM
Head Range (ft): 0-65′
Max. Operating Pressure: 175 PSI
Water Temp. Range: 36˚ – 230˚F (2.2˚-110˚C)
Ambient Operation Temp. Range: 32˚-104˚F (0˚- 40˚C)
HP: 0.4 – 2.1
Connection Sizes: 1 ½” – 3″

Features

High-efficiency ECM technology uses up to 85% less electricity
Intuitive user interface with real-time feedback
Constant speed, constant pressure, proportional pressure, and activeADAPT®; self-adjusting proportional pressure
BMS communication; Modbus, BACnet, 0-10Vdc, PWM
Parallel pump control; cascading, auto-rotate & main/ standby
Standard #125 ANSI flanges (Companion flange kit sold separately)
Insulation shell included
Stainless steel models NSF 61 & 372 Commercial Hot certified

Applications

Hot water recirculation (DHW)
Chilled water & hot water systems
Primary/secondary hydronic systems
Closed loop hydronic systems
Zoned hydronic systems
Constant flow applications
