VFE-080HB-705N4 | VFE-080HB-705N4; VFE-080HB-705N4 | Johnson Controls

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VFE-080HB-705N4

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Johnson Controls VFE-080HB-705N4 Documents

Datasheet More Info

Overview

Details for VFE-080HB-705N4

The VFE-080HB-705N4 from Johnson Controls is a reliable and durable replacement part. This product is designed to meet the highest standards of performance and quality, and is sure to provide years of trouble-free service. With its robust construction and advanced features, the VFE-080HB-705N4 is the perfect choice for demanding applications.Contact our HVAC supply store for the best prices and fast shipping on the VFE-080HB-705N4 and all your other industrial supply needs!

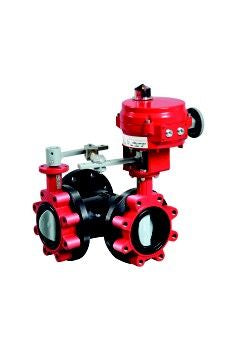

8" 3-Way Butterfly Valve
Ductile Iron Nylon 11 Coated Disc
Chilled Water Hot Water Up to 50% Glycol / -40..250°F
CV90=3316 CV60=1081
24 VAC
Proportional [0..10 VDC]
Feedback [0(2)..10 VDC]
Non-Spring Return - Style E
2000 in-lb Torque
Screw Terminals
2 x SPDT
ANSI 125/150 Flange
60 sec Runtime
Cast Iron Body
Close-Off 175 psi
NEMA 4X
