VFCII-142-EC | Flowmeter | range 1-10 GPM water. | Dwyer Instruments

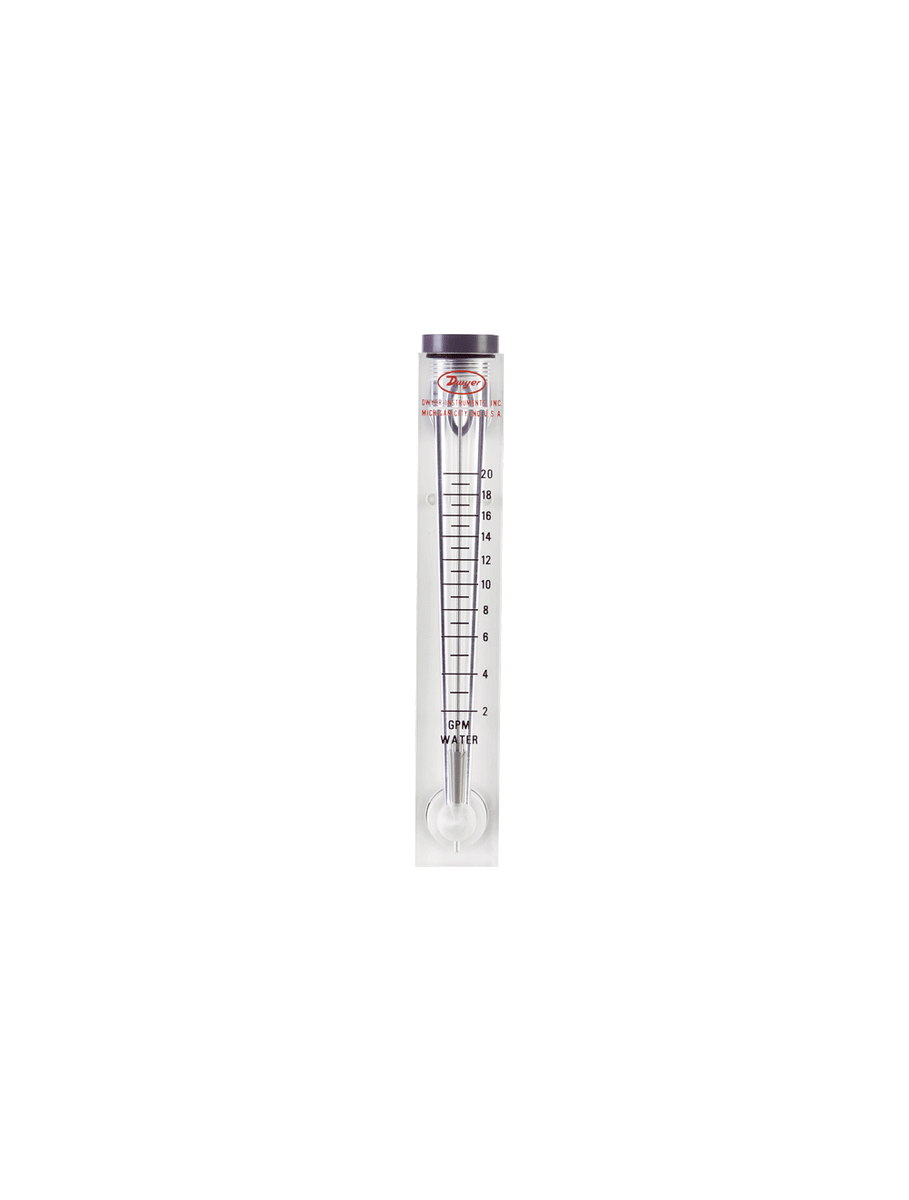

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VFCII-142-EC

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments VFCII-142-EC Documents

Instruction Manual Series VFC/VFCII Catalog Page More Info

Overview

Details for VFCII-142-EC

The Dwyer VFCII-142-EC Flow Meter is a highly accurate and versatile instrument designed for measuring gas flow rates between 1-10 GPM of H2O. With its rugged construction and durable materials, this flow meter withstands the demanding conditions of industrial environments. The VFCII-142-EC features a 5-inch display, providing clear readings of flow rates and total flow volume. Its built-in alarm and data logging capabilities enhance operational efficiency by allowing users to monitor flow parameters and detect any deviations. Additionally, the VFCII-142-EC is versatile, accommodating various pipe sizes ranging from 1/4 to 2 inches. Our shop, our HVAC supply store, offers competitive prices and prompt shipping, making the Dwyer VFCII-142-EC Flow Meter an excellent choice for industrial engineers and maintenance professionals seeking a reliable and efficient flow measurement solution.

Series VFC & VFCII Visi-Float® Acrylic Flowmeter

Used to Indicate Air or Water Flow, End Connections

The Series VFC Visi-Float® Flowmeter is a direct reading, precision machined, clear acrylic body flowmeter suitable for both gas and liquid applications. This Series consists of two 5" (127 mm) scale flowmeters, the VFC and VFC II. The VFC features PVC 1" female NPT connections and the VFC II units are equipped with acetal thermoplastic 1" male NPT fittings.

NIST CALIBRATION available in Product Configurator.

Product Applications

Medical equipment
Laboratory equipment
Air samplers
Gas analyzers
Pollution monitors
Chemical injectors
Cabinet purging
Remediation
Osmosis skids

Bodies are cut and precision machined from solid, clear acrylic blocks allowing for complete visual inspection
White background allows for better visibility of the float increasing reading accuracy
Direct reading scales are hot stamped into the plastic eliminating the need for troublesome conversions and increasing product operating life
Precision machined tapered bore enables high repeatability
Low installation costs with back or end connection options

Specifications

Series: VFC & VFCII Visi-Float® Acrylic Flowmeter
Category/Type: Flow
Type: Flowmeters
Series: VFC & VFCII Visi-Float® Acrylic Flowmeter
Service: Compatible gases and liquids.
Wetted Materials: Body: Acrylic plastic; O-ring: Buna-N (fluoroelastomer available);Metal parts: SS; Float: SS; Fittings: VFC: PVC; VFCII: Acetal thermoplastic.
Temperature & Pressure Limits: 100 psig (6.9 bar) @ 120°F (48°C);
Accuracy: 2% of FS.
Process Connection: VFC: 1" female NPT back connections. End connections optional. VFCII: 1" male NPT back connections. End connections optional.
Scale Length: 5" typical length.
Mounting Orientation: Mount in vertical position.
Weight: 24 to 25 oz (.68 to .71 kg).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU(RoHS II).
