VFC-143 | 2/20GPM Wtr Flow Meter;5"Scale | Dwyer Instruments

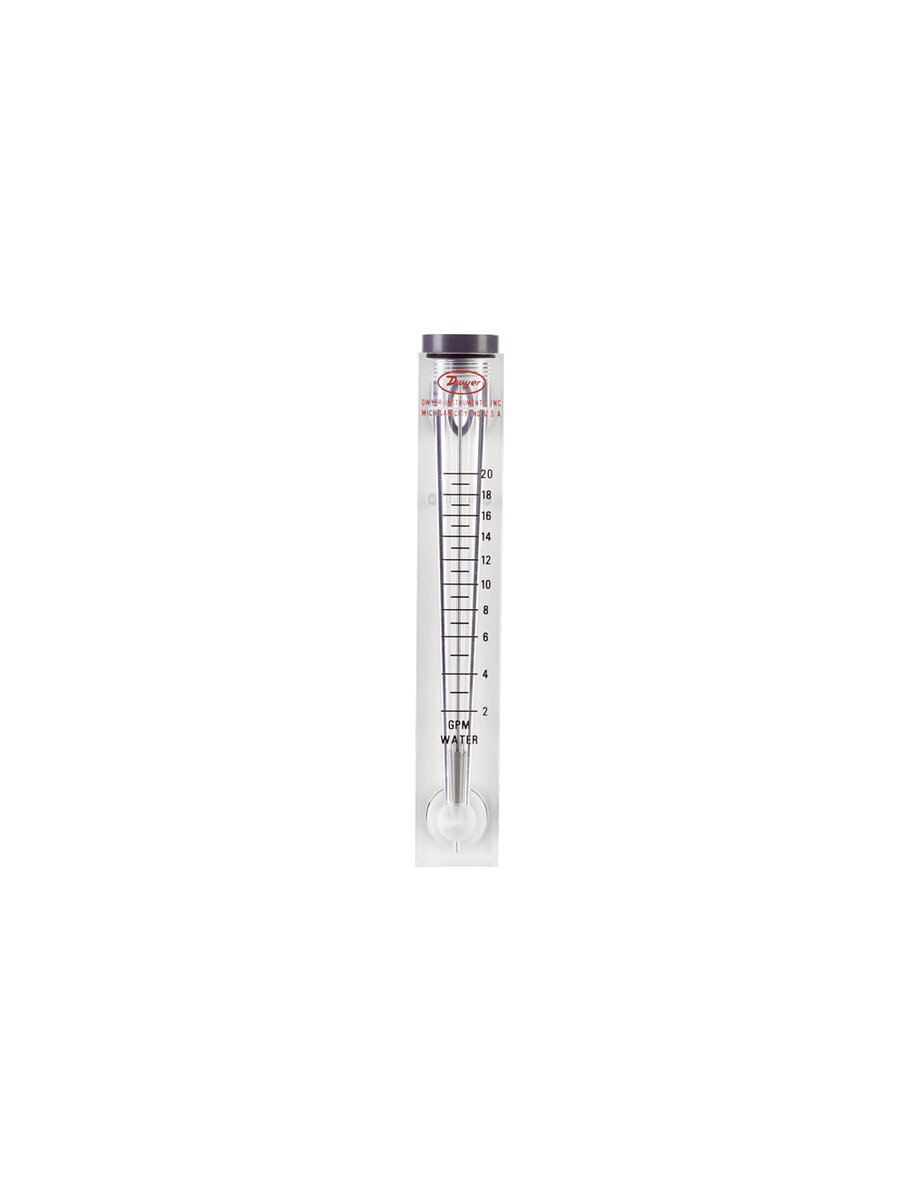

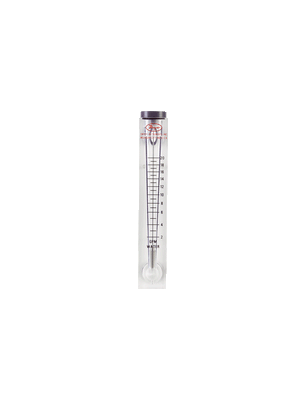

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VFC-143

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments VFC-143 Documents

Instruction Manual Series VFC/VFCII Catalog Page More Info

Overview

Details for VFC-143

VFC-143 Water Flow Meter: Precise Measurement for Industrial ApplicationsThe VFC-143 Water Flow Meter from Dwyer Instruments is a highly accurate instrument designed for measuring water flow rates with precision. Its 2/20GPM flow range and 5" scale provide reliable readings for various industrial applications.Rugged and Durable Construction: The VFC-143 Flow Meter features a durable construction that withstands demanding conditions. Its sturdy materials ensure longevity and reliability in challenging environments.Easy-to-Read Display: Equipped with a clear and visible 5" scale, the VFC-143 offers easy and precise flow rate readings. This allows for quick and accurate monitoring of water flow.Versatile Applications: The VFC-143 Water Flow Meter is a versatile tool suitable for a wide range of industrial applications, including monitoring water usage, optimizing flow processes, and maintaining equipment. It is commonly used in industries such as manufacturing, processing, agriculture, and water treatment.Technical Specifications:Flow Range: 2/20GPMAccuracy: Â±2% of full scaleResolution: 0.1GPMOperating Temperature: 32Â°F to 120Â°F (0Â°C to 49Â°C)Pressure Rating: 150 psi maximumConnection: 1/2" NPT maleour HVAC supply store: Your Trusted Supplier for Industrial Productsour HVAC supply store is your go-to destination for high-quality industrial products, including the VFC-143 Water Flow Meter. We offer competitive prices, fast shipping, and exceptional customer support. Contact us today to learn more or place your order.

Series VFC & VFCII Visi-Float® Acrylic Flowmeter

Used to Indicate Air or Water Flow, End Connections

The Series VFC Visi-Float® Flowmeter is a direct reading, precision machined, clear acrylic body flowmeter suitable for both gas and liquid applications. This Series consists of two 5" (127 mm) scale flowmeters, the VFC and VFC II. The VFC features PVC 1" female NPT connections and the VFC II units are equipped with acetal thermoplastic 1" male NPT fittings.

NIST CALIBRATION available in Product Configurator.

Product Applications

Medical equipment
Laboratory equipment
Air samplers
Gas analyzers
Pollution monitors
Chemical injectors
Cabinet purging
Remediation
Osmosis skids

Bodies are cut and precision machined from solid, clear acrylic blocks allowing for complete visual inspection
White background allows for better visibility of the float increasing reading accuracy
Direct reading scales are hot stamped into the plastic eliminating the need for troublesome conversions and increasing product operating life
Precision machined tapered bore enables high repeatability
Low installation costs with back or end connection options

Specifications

Series: VFC & VFCII Visi-Float® Acrylic Flowmeter
Category/Type: Flow
Type: Flowmeters
Series: VFC & VFCII Visi-Float® Acrylic Flowmeter
Service: Compatible gases and liquids.
Wetted Materials: Body: Acrylic plastic; O-ring: Buna-N (fluoroelastomer available);Metal parts: SS; Float: SS; Fittings: VFC: PVC; VFCII: Acetal thermoplastic.
Temperature & Pressure Limits: 100 psig (6.9 bar) @ 120°F (48°C);
Accuracy: 2% of FS.
Process Connection: VFC: 1" female NPT back connections. End connections optional. VFCII: 1" male NPT back connections. End connections optional.
Scale Length: 5" typical length.
Mounting Orientation: Mount in vertical position.
Weight: 24 to 25 oz (.68 to .71 kg).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU(RoHS II).
