VFC-142-EC | Flowmeter | range 1-10 GPM water. | Dwyer Instruments

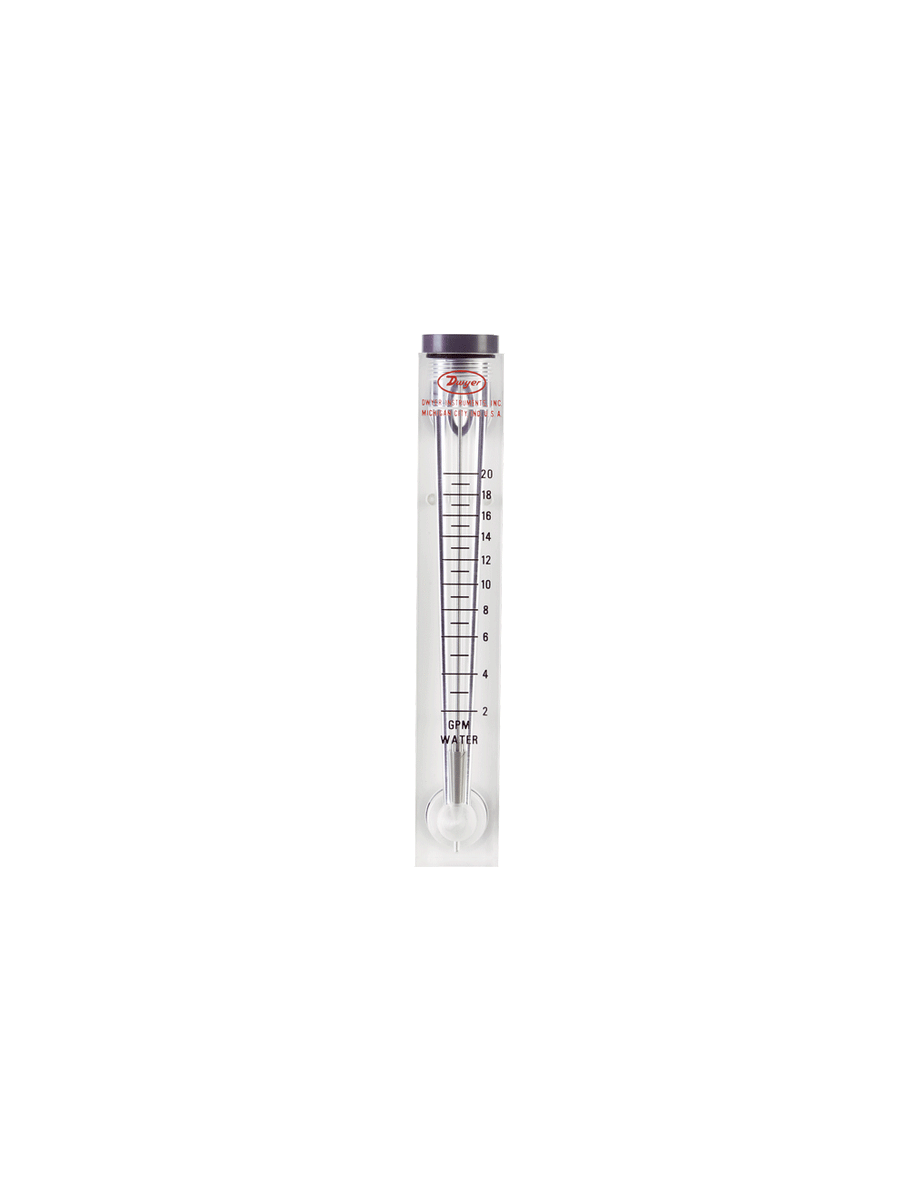

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VFC-142-EC

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments VFC-142-EC Documents

Instruction Manual Series VFC/VFCII Catalog Page More Info

Overview

Details for VFC-142-EC

Dwyer Instruments VFC-142-EC Flow Meter: Accurate Measurement for Industrial Applications Dwyer Instruments' VFC-142-EC Flow Meter offers precise flow measurement for industrial applications, ranging from 1 to 10 gallons per minute. It features end connections for easy installation and reliable performance. Crafted with robust construction, this flow meter ensures durability in demanding environments. Its compact design makes it ideal for space-constrained setups. With advanced technology, the VFC-142-EC provides highly accurate readings, ensuring dependable and efficient flow measurement. Applications: - Monitoring liquid flow rates in process lines - Controlling flow rates in water treatment systems - Measuring fuel consumption in machinery - Precision measurement in hydraulic systems Specifications: - SKU: VFC-142-EC - Flow Range: 1-10 GPM - End Connections: Included - Brand: Dwyer Instruments Choose our HVAC supply store for the best prices and fast shipping on your Dwyer Instruments VFC-142-EC Flow Meter and other industrial products. Contact us today for more information and expert assistance.

Series VFC & VFCII Visi-Float® Acrylic Flowmeter

Used to Indicate Air or Water Flow, End Connections

The Series VFC Visi-Float® Flowmeter is a direct reading, precision machined, clear acrylic body flowmeter suitable for both gas and liquid applications. This Series consists of two 5" (127 mm) scale flowmeters, the VFC and VFC II. The VFC features PVC 1" female NPT connections and the VFC II units are equipped with acetal thermoplastic 1" male NPT fittings.

NIST CALIBRATION available in Product Configurator.

Product Applications

Medical equipment
Laboratory equipment
Air samplers
Gas analyzers
Pollution monitors
Chemical injectors
Cabinet purging
Remediation
Osmosis skids

Bodies are cut and precision machined from solid, clear acrylic blocks allowing for complete visual inspection
White background allows for better visibility of the float increasing reading accuracy
Direct reading scales are hot stamped into the plastic eliminating the need for troublesome conversions and increasing product operating life
Precision machined tapered bore enables high repeatability
Low installation costs with back or end connection options

Specifications

Series: VFC & VFCII Visi-Float® Acrylic Flowmeter
Category/Type: Flow
Type: Flowmeters
Series: VFC & VFCII Visi-Float® Acrylic Flowmeter
Service: Compatible gases and liquids.
Wetted Materials: Body: Acrylic plastic; O-ring: Buna-N (fluoroelastomer available);Metal parts: SS; Float: SS; Fittings: VFC: PVC; VFCII: Acetal thermoplastic.
Temperature & Pressure Limits: 100 psig (6.9 bar) @ 120°F (48°C);
Accuracy: 2% of FS.
Process Connection: VFC: 1" female NPT back connections. End connections optional. VFCII: 1" male NPT back connections. End connections optional.
Scale Length: 5" typical length.
Mounting Orientation: Mount in vertical position.
Weight: 24 to 25 oz (.68 to .71 kg).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU(RoHS II).
