VFC-142 | Flowmeter | range 1-10 GPM water. | Dwyer Instruments

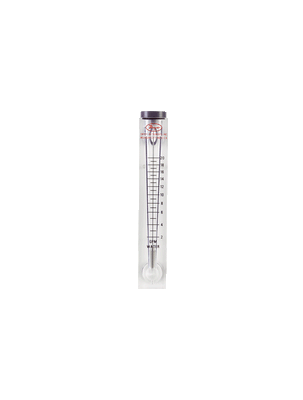

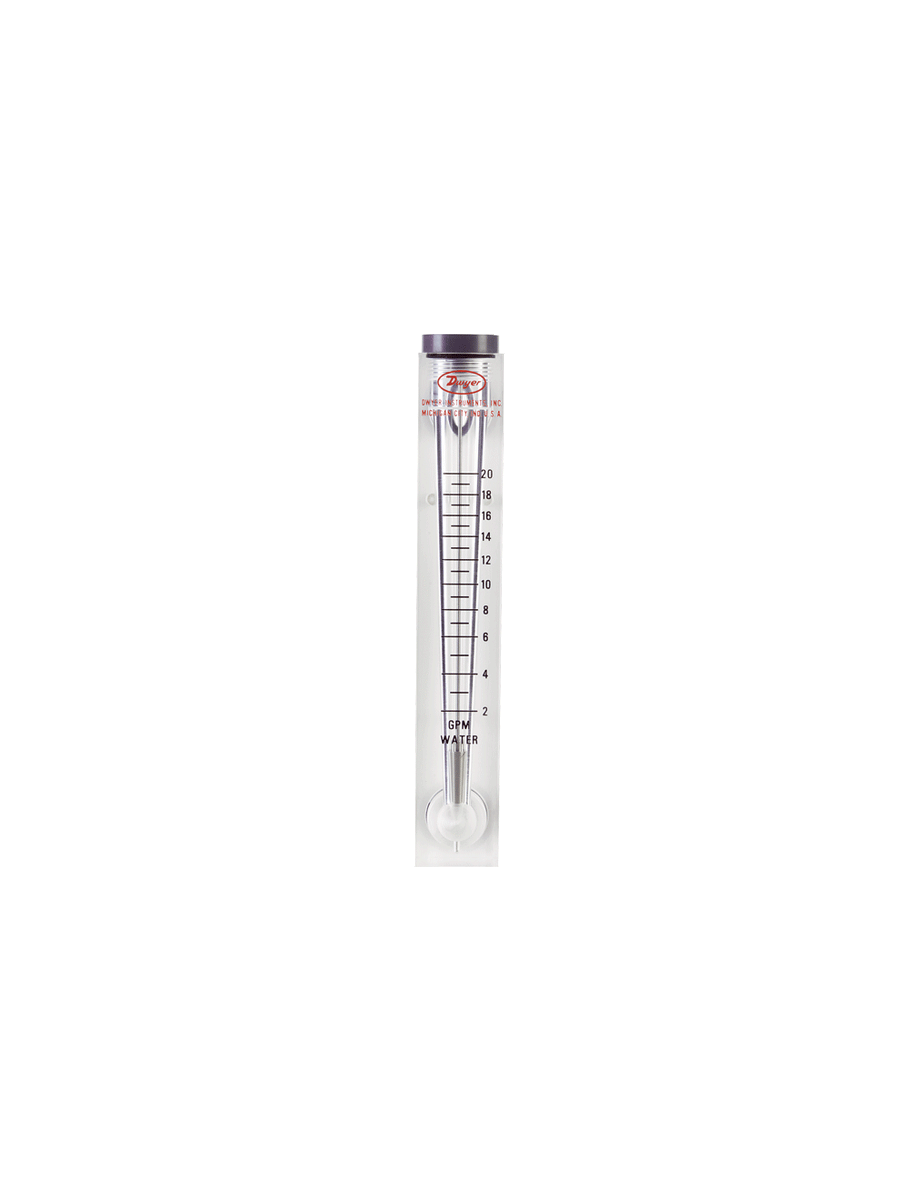

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VFC-142

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments VFC-142 Documents

Instruction Manual Series VFC/VFCII Catalog Page More Info

Overview

Details for VFC-142

Dwyer VFC-142 Water Flow Meter: Precise Measurement for Industrial Applications The Dwyer VFC-142 is a precision water flow meter designed for accurate and reliable measurement in industrial settings. With a measuring range of 1-10 GPM, this versatile meter is ideal for monitoring water flow rates in various applications, including cooling towers, irrigation systems, and water treatment plants. Featuring a robust construction and durable materials, the VFC-142 is built to withstand harsh industrial environments. Its compact design allows for easy installation in tight spaces, while its clear display provides real-time flow rate readings. The meter's accuracy and reliability ensure precise measurement and reliable performance. The Dwyer VFC-142 water flow meter is an essential tool for industrial engineers and maintenance professionals seeking precise and efficient water flow monitoring solutions. Its ease of use and durability make it an invaluable asset for optimizing water usage and maintaining system efficiency. Our HVAC supply store offers the Dwyer VFC-142 water flow meter at the best prices with fast shipping. Trust our commitment to quality products and exceptional customer service for all your industrial supply needs.

Series VFC & VFCII Visi-Float® Acrylic Flowmeter

Used to Indicate Air or Water Flow, End Connections

The Series VFC Visi-Float® Flowmeter is a direct reading, precision machined, clear acrylic body flowmeter suitable for both gas and liquid applications. This Series consists of two 5" (127 mm) scale flowmeters, the VFC and VFC II. The VFC features PVC 1" female NPT connections and the VFC II units are equipped with acetal thermoplastic 1" male NPT fittings.

NIST CALIBRATION available in Product Configurator.

Product Applications

Medical equipment
Laboratory equipment
Air samplers
Gas analyzers
Pollution monitors
Chemical injectors
Cabinet purging
Remediation
Osmosis skids

Bodies are cut and precision machined from solid, clear acrylic blocks allowing for complete visual inspection
White background allows for better visibility of the float increasing reading accuracy
Direct reading scales are hot stamped into the plastic eliminating the need for troublesome conversions and increasing product operating life
Precision machined tapered bore enables high repeatability
Low installation costs with back or end connection options

Specifications

Series: VFC & VFCII Visi-Float® Acrylic Flowmeter
Category/Type: Flow
Type: Flowmeters
Series: VFC & VFCII Visi-Float® Acrylic Flowmeter
Service: Compatible gases and liquids.
Wetted Materials: Body: Acrylic plastic; O-ring: Buna-N (fluoroelastomer available);Metal parts: SS; Float: SS; Fittings: VFC: PVC; VFCII: Acetal thermoplastic.
Temperature & Pressure Limits: 100 psig (6.9 bar) @ 120°F (48°C);
Accuracy: 2% of FS.
Process Connection: VFC: 1" female NPT back connections. End connections optional. VFCII: 1" male NPT back connections. End connections optional.
Scale Length: 5" typical length.
Mounting Orientation: Mount in vertical position.
Weight: 24 to 25 oz (.68 to .71 kg).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU(RoHS II).
