VFC-141-EC | Flowmeter | range .5-5 GPM water. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VFC-141-EC

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments VFC-141-EC Documents

Instruction Manual Series VFC/VFCII Catalog Page More Info

Overview

Details for VFC-141-EC

Dwyer Instruments VFC-141-EC Water Flow Meter: Precision Flow Measurement for Industrial Applications The Dwyer Instruments VFC-141-EC Water Flow Meter is a highly accurate and reliable flow measurement solution designed for industrial applications. With its advanced design and durable construction, it provides precise and consistent flow readings in various water systems. Key Features: - Flow Range: Measures water flow rates from 0.5 to 5 gallons per minute (GPM). - End Connection: Features 3/4" NPT end connections for easy installation in existing plumbing systems. - Construction: Rugged and corrosion-resistant construction ensures durability in harsh industrial environments. Benefits: - Accurate Measurement: Delivers highly accurate flow readings, allowing for precise monitoring and control of water flow. - Compact Design: Its compact size makes it suitable for installation in tight spaces or on equipment with limited mounting options. - Easy Installation: The VFC-141-EC's end connections simplify installation, reducing downtime during setup. Applications: - Industrial Water Systems: Monitoring and controlling water flow in industrial processes such as cooling systems, irrigation, or wastewater treatment. - HVAC Systems: Measuring water flow in heating, ventilation, and air conditioning systems for efficient energy management. - Equipment Monitoring: Tracking water consumption for specific equipment or machinery to optimize usage and identify potential leaks. Trust our HVAC supply store for the Best Prices and Fast Shipping on Dwyer Instruments VFC-141-EC Water Flow Meters.

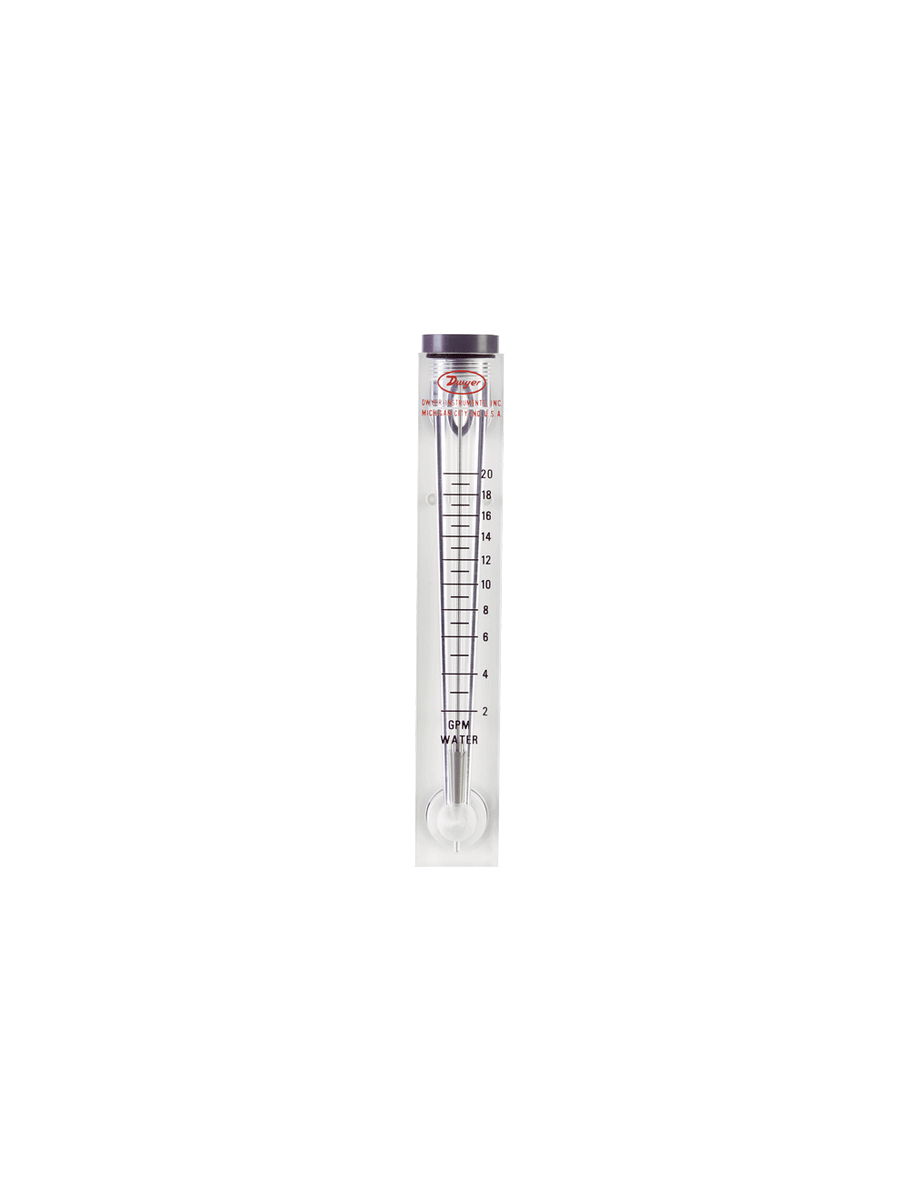

Series VFC & VFCII Visi-Float® Acrylic Flowmeter

Used to Indicate Air or Water Flow, End Connections

The Series VFC Visi-Float® Flowmeter is a direct reading, precision machined, clear acrylic body flowmeter suitable for both gas and liquid applications. This Series consists of two 5" (127 mm) scale flowmeters, the VFC and VFC II. The VFC features PVC 1" female NPT connections and the VFC II units are equipped with acetal thermoplastic 1" male NPT fittings.

NIST CALIBRATION available in Product Configurator.

Product Applications

Medical equipment
Laboratory equipment
Air samplers
Gas analyzers
Pollution monitors
Chemical injectors
Cabinet purging
Remediation
Osmosis skids

Bodies are cut and precision machined from solid, clear acrylic blocks allowing for complete visual inspection
White background allows for better visibility of the float increasing reading accuracy
Direct reading scales are hot stamped into the plastic eliminating the need for troublesome conversions and increasing product operating life
Precision machined tapered bore enables high repeatability
Low installation costs with back or end connection options

Specifications

Series: VFC & VFCII Visi-Float® Acrylic Flowmeter
Category/Type: Flow
Type: Flowmeters
Series: VFC & VFCII Visi-Float® Acrylic Flowmeter
Service: Compatible gases and liquids.
Wetted Materials: Body: Acrylic plastic; O-ring: Buna-N (fluoroelastomer available);Metal parts: SS; Float: SS; Fittings: VFC: PVC; VFCII: Acetal thermoplastic.
Temperature & Pressure Limits: 100 psig (6.9 bar) @ 120°F (48°C);
Accuracy: 2% of FS.
Process Connection: VFC: 1" female NPT back connections. End connections optional. VFCII: 1" male NPT back connections. End connections optional.
Scale Length: 5" typical length.
Mounting Orientation: Mount in vertical position.
Weight: 24 to 25 oz (.68 to .71 kg).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU(RoHS II).
