VFA-44-BV | Flowmeter | range 8-40 GPH water. | Dwyer Instruments

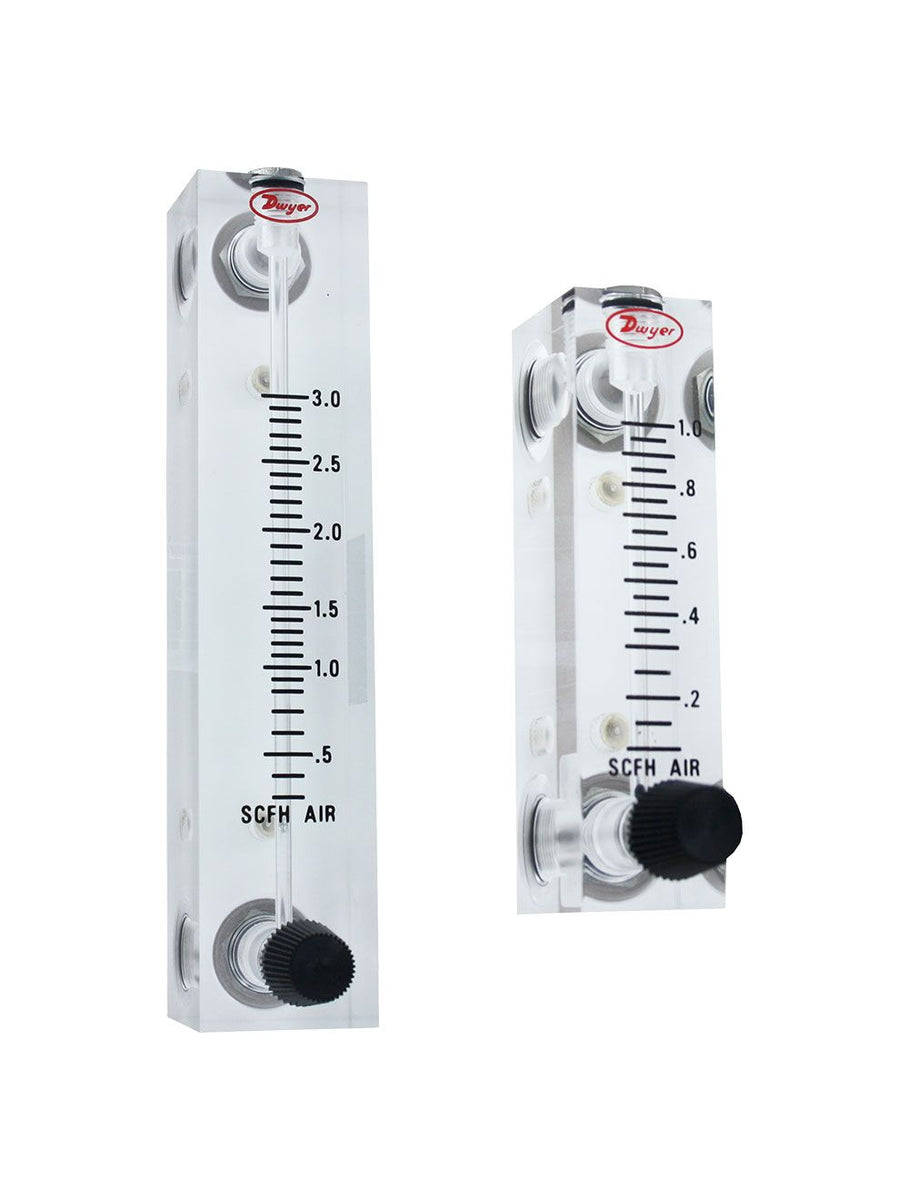

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VFA-44-BV

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments VFA-44-BV Documents

VF Instruction Manual RKA Instruction Manual Series VF Catalog Page VF More Info

Overview

Details for VFA-44-BV

Dwyer Instruments VFA-44-BV Flow Meter: Precision Measurement for Industrial Applications The VFA-44-BV flow meter from Dwyer Instruments is designed for precise measurement of flow rates in industrial applications. With a measuring range of 8-40 GPH, this versatile flow meter is ideal for measuring the flow of liquids and gases in various systems. Its durable brass valve construction ensures reliability and long-lasting performance in demanding environments. Key Features: - Measurement range: 8-40 GPH - Brass valve for durability and corrosion resistance - Compact and lightweight design for easy installation - Easy-to-read scale for accurate measurements Benefits: - Accurate measurement of flow rates for precise monitoring and control - Reliable performance in harsh industrial conditions - Compact size for easy integration into existing systems - Simple installation and operation for reduced downtime Applications: The VFA-44-BV flow meter is widely used in industrial applications such as: - Process control - HVAC systems - Fluid monitoring - Chemical processing Shop our HVAC supply store today for the best prices and fast shipping on Dwyer Instruments VFA-44-BV Flow Meters. Enhance your industrial operations with precision flow measurement solutions!

Series VF Visi-Float® Acrylic Flowmeter

Hot-Stamped Scales, Multi-Angle Views of Flow

The Series VF Visi-Float® Flowmeters are a line of direct reading, precision machined, clear acrylic body flowmeters suitable for both gas and liquid applications. The fabrication of the Visi-Float® flowmeters is backed by over 60 years of experience in acrylic instrument machining. This Series consists of 2" (51 mm) and 4" (102 mm) scales with optional precision metering valves.

NIST CALIBRATION available in Product Configurator.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Medical equipment
Laboratory equipment
Air samplers
Gas analyzers
Pollution monitors
Chemical injectors
Cabinet purging

Appealing design allows for complete visual inspection with bodies that are cut and precision machined from solid, clear acrylic blocks
Increased reading accuracy with clear visibility of the float on a smooth white background
Eliminates the need for troublesome conversions and increases product operating life with direct reading scales that are hot stamped into the plastic
High repeatability from precision machined tapered bores
Low installation costs with back or end connection options with metal mounting inserts that can be supported directly by system piping

Specifications

Series: VF Visi-Float® Acrylic Flowmeter
Category/Type: Flow
Type: Flowmeters
Series: VF Visi-Float® Acrylic Flowmeter
Service: Compatible gases and liquids.
Wetted Materials: Body: Acrylic plastic; O-ring: Buna-N (fluoroelastomer available); Metal parts: Nickel plated brass standard; SS optional; Float: SS; black glass;aluminum; K monel depending on range.
Temperature & Pressure Limits: Without Valve: 100 psig (6.9 bar) @ 150°F (65°C); 150 psig (10 bar) @ 100°F (38°C); With Valve: 100 psig (6.9 bar) @ 120°F (48°C).
Accuracy: VFA = 5% of FS; VFB = 3% of FS.
Process Connection: 1/8" female NPT. VFB ranges 85 and 86 have 1/4" NPT back connections or 3/8" NPT end connections. These ranges not available with brass valves.
Scale Length: VFA 2" typical length; VFB 4" typical length.
Mounting Orientation: Mount in vertical position.
Weight: VFA: 4.0 to 4.8 oz (.11 to .14 kg); VFB: 7.2 to 8.8 oz (.20 to .25 kg).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU(RoHS II).
