VFA-41-SSV | Flowmeter | range .6-5 GPH water. | Dwyer Instruments

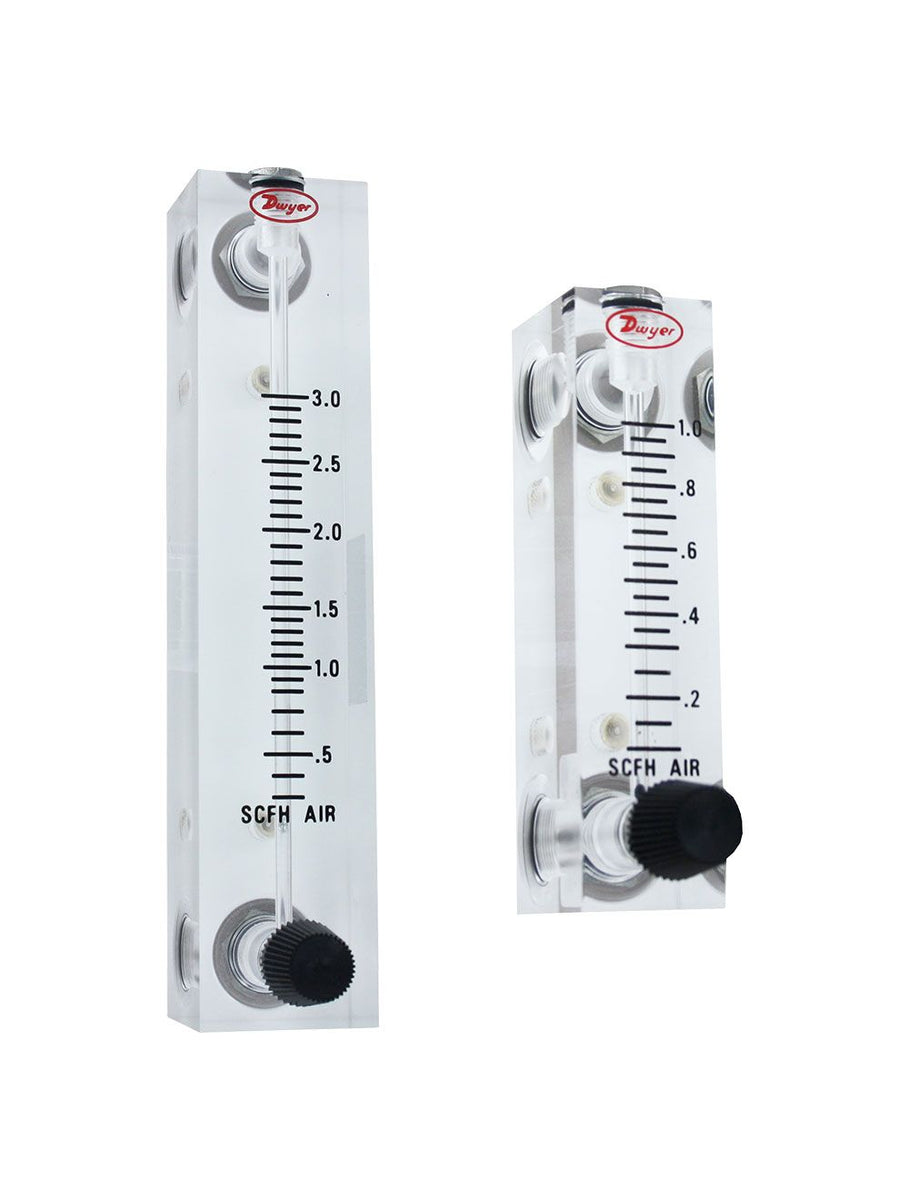

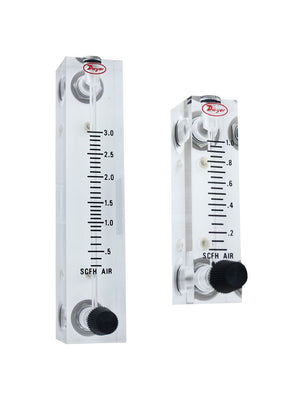

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VFA-41-SSV

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments VFA-41-SSV Documents

VF Instruction Manual RKA Instruction Manual Series VF Catalog Page VF More Info

Overview

Details for VFA-41-SSV

Dwyer Instruments VFA-41-SSV: Precise Flow Measurement with Stainless Steel Valve Control and monitor fluid flow with accuracy using Dwyer Instruments' VFA-41-SSV flowmeter. This versatile device is designed to provide precise readings within the range of 0.6 to 5 gallons per hour (gph). The integral stainless steel shut-off valve allows for convenient flow regulation, ensuring maximum control over fluid movement. Crafted from durable materials, the VFA-41-SSV is engineered for longevity and reliability. Its rugged construction withstands the demands of industrial environments, while its corrosion-resistant stainless steel components ensure compatibility with various fluids. Engineered with precision, this flowmeter features a clear and easy-to-read scale that displays real-time flow rates. The wide 1.5-inch diameter scale provides excellent visibility, allowing for quick and accurate readings. With its versatility, the VFA-41-SSV finds applications in diverse industries, including food and beverage, chemical processing, and manufacturing. It is ideal for controlling the flow of fluids such as water, oil, and solvents. Our HVAC supply store offers the best prices and fast shipping for your industrial needs. Choose the VFA-41-SSV flowmeter by Dwyer Instruments for precise flow control and monitoring in your operations. Upgrade your equipment today and experience the precision and reliability of Dwyer Instruments' measurement solutions!

Series VF Visi-Float® Acrylic Flowmeter

Hot-Stamped Scales, Multi-Angle Views of Flow

The Series VF Visi-Float® Flowmeters are a line of direct reading, precision machined, clear acrylic body flowmeters suitable for both gas and liquid applications. The fabrication of the Visi-Float® flowmeters is backed by over 60 years of experience in acrylic instrument machining. This Series consists of 2" (51 mm) and 4" (102 mm) scales with optional precision metering valves.

NIST CALIBRATION available in Product Configurator.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Medical equipment
Laboratory equipment
Air samplers
Gas analyzers
Pollution monitors
Chemical injectors
Cabinet purging

Appealing design allows for complete visual inspection with bodies that are cut and precision machined from solid, clear acrylic blocks
Increased reading accuracy with clear visibility of the float on a smooth white background
Eliminates the need for troublesome conversions and increases product operating life with direct reading scales that are hot stamped into the plastic
High repeatability from precision machined tapered bores
Low installation costs with back or end connection options with metal mounting inserts that can be supported directly by system piping

Specifications

Series: VF Visi-Float® Acrylic Flowmeter
Category/Type: Flow
Type: Flowmeters
Series: VF Visi-Float® Acrylic Flowmeter
Service: Compatible gases and liquids.
Wetted Materials: Body: Acrylic plastic; O-ring: Buna-N (fluoroelastomer available); Metal parts: Nickel plated brass standard; SS optional; Float: SS; black glass;aluminum; K monel depending on range.
Temperature & Pressure Limits: Without Valve: 100 psig (6.9 bar) @ 150°F (65°C); 150 psig (10 bar) @ 100°F (38°C); With Valve: 100 psig (6.9 bar) @ 120°F (48°C).
Accuracy: VFA = 5% of FS; VFB = 3% of FS.
Process Connection: 1/8" female NPT. VFB ranges 85 and 86 have 1/4" NPT back connections or 3/8" NPT end connections. These ranges not available with brass valves.
Scale Length: VFA 2" typical length; VFB 4" typical length.
Mounting Orientation: Mount in vertical position.
Weight: VFA: 4.0 to 4.8 oz (.11 to .14 kg); VFB: 7.2 to 8.8 oz (.20 to .25 kg).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU(RoHS II).
