VFA-21-SSV | Flowmeter | range .06-0.5 LPM air. | Dwyer Instruments

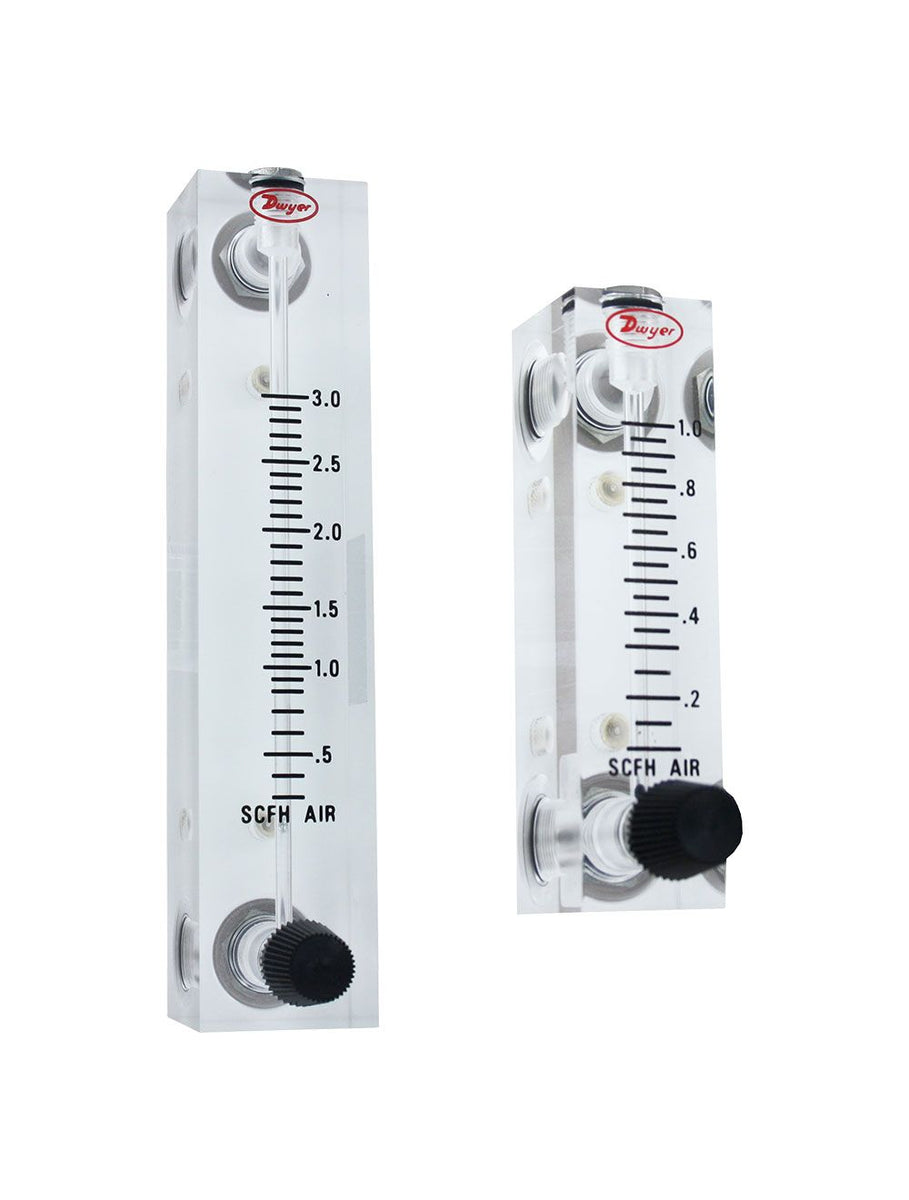

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VFA-21-SSV

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments VFA-21-SSV Documents

VF Instruction Manual RKA Instruction Manual Series VF Catalog Page VF More Info

Overview

Details for VFA-21-SSV

Dwyer Instruments VFA-21-SSV Flowmeter: Precise Air Measurement for Industrial Applications The Dwyer Instruments VFA-21-SSV is a high-precision air flowmeter designed to provide accurate and reliable flow measurements in various industrial settings. With its versatile capabilities and robust construction, this flowmeter is an essential tool for industrial engineers and maintenance professionals seeking precise air flow monitoring solutions. Key Features: - Flow Range: 0.06 to 0.5 LPM (0.02 to 0.1 SCFM) - High Accuracy: Â±2% of full scale - Stainless Steel Valve: Ensures durability and corrosion resistance - 2" Flowmeter Body: Provides clear and easy flow visualization - Compact Design: Allows for easy integration into existing systems Benefits: - Precise Air Flow Measurement: Enables accurate monitoring and control of air flow rates in critical industrial processes. - Enhanced Efficiency: Optimizes system performance by ensuring precise air flow for equipment operation and energy conservation. - Robust Construction: Durable materials and rugged design withstand the demands of industrial environments. - Versatile Applications: Ideal for various industrial settings, including HVAC systems, medical equipment, and manufacturing processes. Shop now at our HVAC supply store for the best prices and fast shipping on the Dwyer Instruments VFA-21-SSV Flowmeter. Trust our HVAC supply store for all your industrial supply needs!

Series VF Visi-Float® Acrylic Flowmeter

Hot-Stamped Scales, Multi-Angle Views of Flow

The Series VF Visi-Float® Flowmeters are a line of direct reading, precision machined, clear acrylic body flowmeters suitable for both gas and liquid applications. The fabrication of the Visi-Float® flowmeters is backed by over 60 years of experience in acrylic instrument machining. This Series consists of 2" (51 mm) and 4" (102 mm) scales with optional precision metering valves.

NIST CALIBRATION available in Product Configurator.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Medical equipment
Laboratory equipment
Air samplers
Gas analyzers
Pollution monitors
Chemical injectors
Cabinet purging

Appealing design allows for complete visual inspection with bodies that are cut and precision machined from solid, clear acrylic blocks
Increased reading accuracy with clear visibility of the float on a smooth white background
Eliminates the need for troublesome conversions and increases product operating life with direct reading scales that are hot stamped into the plastic
High repeatability from precision machined tapered bores
Low installation costs with back or end connection options with metal mounting inserts that can be supported directly by system piping

Specifications

Series: VF Visi-Float® Acrylic Flowmeter
Category/Type: Flow
Type: Flowmeters
Series: VF Visi-Float® Acrylic Flowmeter
Service: Compatible gases and liquids.
Wetted Materials: Body: Acrylic plastic; O-ring: Buna-N (fluoroelastomer available); Metal parts: Nickel plated brass standard; SS optional; Float: SS; black glass;aluminum; K monel depending on range.
Temperature & Pressure Limits: Without Valve: 100 psig (6.9 bar) @ 150°F (65°C); 150 psig (10 bar) @ 100°F (38°C); With Valve: 100 psig (6.9 bar) @ 120°F (48°C).
Accuracy: VFA = 5% of FS; VFB = 3% of FS.
Process Connection: 1/8" female NPT. VFB ranges 85 and 86 have 1/4" NPT back connections or 3/8" NPT end connections. These ranges not available with brass valves.
Scale Length: VFA 2" typical length; VFB 4" typical length.
Mounting Orientation: Mount in vertical position.
Weight: VFA: 4.0 to 4.8 oz (.11 to .14 kg); VFB: 7.2 to 8.8 oz (.20 to .25 kg).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU(RoHS II).
