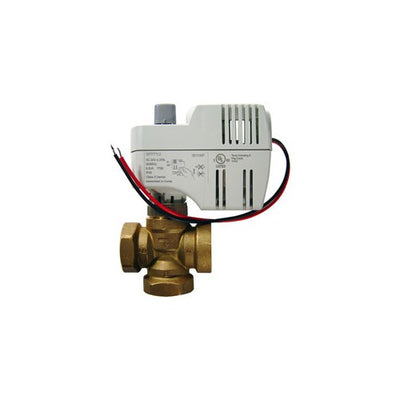

VEZ-4402CMBM | Zone Valve | 0.5" - 3 Way | 4 Cv | Spring Return | 24V | On/Off | KMC Controls

1/2" 3W DIV 4.0Cv 24V S/R This 1/2-inch 3-way Normally Open/Normally Closed solenoid valve is designed for use with 24V AC/DC power. It features a 4.0 Cv orifice size and is suitable for use with gases and liquids. The valve is constructed of brass and has a stainless steel trim. It is rated for a maximum pressure of 150 PSI and a maximum temperature of 180 degrees Fahrenheit. The valve is equipped with a manual override lever and has a 1/2-inch NPT inlet and outlet.

These three-way, diverting, globe zone valves are available in 1/2″ through 1″ line sizes. They are designed to regulate hot or chilled water in VAV terminal unit reheat coils, fan coil units, and induction units. For limited pressures, the valves can also be used in mixing applications. The compact size allows easy installation in small enclosures.The actuator determines the fail position. Actuators have position indication and manual override. Replacement actuators can be installed on the valve bodies without tools.Features include:

• Choice of tri-state/floating or proportional fail-in-place or two-position spring-return fail-safe
• Compact size
• Spring-return fail-safe actuators feature easy manual override, visual position indication, UL listing for plenum installations, and heat-resistant lead wires
• Non-fail-safe actuators feature manual override (with 3 mm hex wrench), visual position indication, and are CE compliant and UL listed
