VEB-4602EBCL | CCV | 0.5" - 3 Way | 1 Cv | Electronic Fail-Safe | 24V | Modulating | KMC Controls

1/2" NPT 3 Way 1 CV 24V Prop S/R Ball Vl The KMC Controls VEB-4602EBCL is a 1/2" NPT 3-way 1 CV 24V Prop S/R Ball Valve. It is designed for use in a variety of industrial applications, including fluid power, process control, and HVAC. The valve is made of brass and has a stainless steel ball. It is rated for a maximum pressure of 150 psi and a maximum temperature of 180°F. The VEB-4602EBCL is a high-quality ball valve that is built to last. It is a reliable and cost-effective solution for a variety of industrial applications. Benefits: * Made of brass for durability * Stainless steel ball for long life * Rated for a maximum pressure of 150 psi * Rated for a maximum temperature of 180°F * Versatile and can be used for various industrial applications Shop now at our HVAC supply store for the best prices and fast shipping on the KMC Controls VEB-4602EBCL 1/2" NPT 3-way 1 CV 24V Prop S/R Ball Valve!

VEB-46 (formerly VEP-43) series, 3-way, mixing or diverting, NPT control ball valves are designed for the control of hot or chilled water in HVAC applications. Valves range in size from 1/2 to 3 inches and most feature an optimizing insert, which reduces and characterizes the ball opening for lower Cv ratings similar to globe valves.

The body design also provides a standard “T” pattern to simplify installation. They include a field-repairable blowout-proof stem and leak-proof shut-off. The reduced torque seals and O-rings eliminate the need for high torque actuators and are designed to work with KMC’s low-torque, MEP-4xxxV series actuators on all valve sizes.

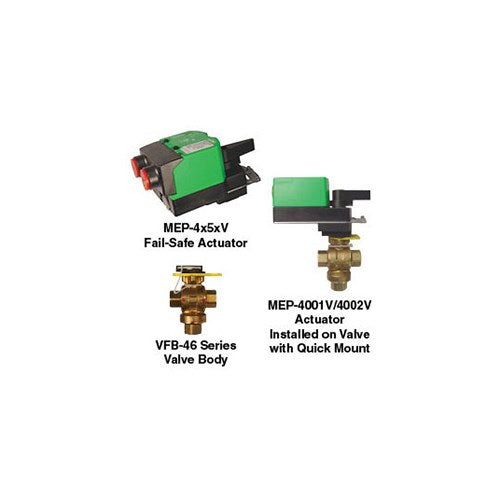

Valve assemblies have brackets with a patented, quick-mounting mechanism that creates a universal connection to VSI, Griswold, and other valve bodies. Complete valve assemblies are available with MEP-4002V/4252V/4552V actuators. Order other actuators and valve bodies separately.

See also the MEP-4000/4800 and MEP-4200/4500/4900 series for more information about the actuators. For equivalent two-way valves, see the VEB-43 series.
