VA9104-IGA-3S | ELECTRIC VALVE ACTUATOR; NSR; FLOATING CTL; NO SW; W/TERMINAL BLOCK | Johnson Controls

Johnson Controls VA9104-IGA-3S 24V Non-Spring Return (NSR) Actuator with Time OutThe Johnson Controls VA9104-IGA-3S is a 24V non-spring return (NSR) actuator designed for use in HVAC systems. This actuator provides 35 in-lb of torque and features a time out function that automatically shuts off the actuator after a set period of time. The VA9104-IGA-3S is ideal for use with dampers, valves, and other control devices.Key Features:* 24V NSR actuator* 35 in-lb of torque* Time out function* Ideal for use with dampers, valves, and other control devicesShop our HVAC supply store today for the best prices and fast shipping on the Johnson Controls VA9104-IGA-3S 24V NSR Actuator with Time Out!

Description

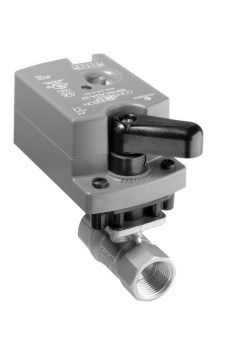

The VA9104 Series Actuators are direct-mount, non-spring return electric valve actuators that operate on AC 24 V or 100 to 240 V power. Use these synchronous motors or stepper motors (for line voltage models) driven actuators to provide accurate positioning on Johnson Controls® VG1000 Series DN15, DN20, and DN25 (1/2, 3/4, and 1 in.) ball valves in HVAC applications.

The VA9104 Series Electric Non-Spring Return Actuators provide a running torque of 35 lb·in (4 N·m). The nominal travel time is 60 seconds at 60 Hz for 90° of rotation.

Refer to the VA9104 Series Electric Non-Spring Return Valve Actuators Product Bulletin (LIT-12011050) for important product application information.

Features

• 35 dBA Maximum Audible Noise Rating
• Synchronous Drive
• 100,000 Cycle Rating
• Direct Mounting with Single Screw
• Manual Override
• Plenum Cable or Screw Terminal Electrical Connections
• 3/8 in. Flexible Metal Conduit Connector on VA9104-xxA-2S Models
• Available Weather Shield for Field Mounting
• Optional M9000-561 Thermal Barrier
• 5-Year Warranty
