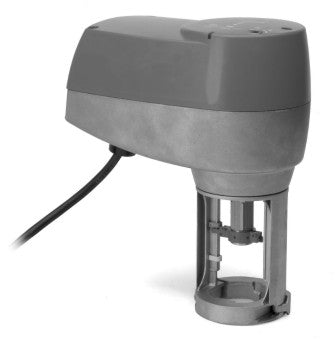

VA7820-HGC-2 | O TO 10 VDC PROP.CONTR.; O TO 10 VDC PROP.CONTR. 2 | Johnson Controls

Protect and Control with the VA7820-HGC-2: Johnson Controls' Reliable 24V Proportional ActuatorThe VA7820-HGC-2 from Johnson Controls is a 24V proportional actuator designed to excel in industrial and HVAC applications. With its 0-10V DC input signal range and two-position switch, it precisely controls dampers and valves. Its compact size and durable construction make it ideal for retrofitting existing systems or integrating into new designs. Features and Benefits: Precise and Responsive: 0-10V DC input ensures accurate positioning and control of dampers or valves. Versatile Functionality: Two-position switch provides additional control options for various applications. Durable and Long-Lasting: Robust construction withstands the rigors of industrial environments, ensuring reliability and longevity. Compact and Convenient: Its small size allows for easy installation in confined spaces, making it perfect for retrofits or tight installations. Applications: Heating, Ventilation, and Air Conditioning (HVAC) systems Industrial automation and process control Damper and valve positioning Choose Johnson Controls VA7820-HGC-2 for precise control, durability, and versatility in your industrial or HVAC applications. Shop at our HVAC supply store today and benefit from competitive pricing and fast shipping!

Description

The VA7800 Series of electric valve actuators control VG7000 Series Bronze Globe Valves in HVAC systems. The VA7800 Series produces a minimum linear output force of 180 lb (800 N) and is ordered field mounted or factory coupled to 1 in. and 2 in. VG7000 Series Bronze Globe Valves with brass trim and to 1/2 in. through 2 in. VG7000 Series Bronze Globe Valves with stainless steel trim. All actuators are direct mount and available in both Spring Return and Non-Spring Return models. Spring-return models ship from the factory set for DC 0 to 10 V Proportional Control. With a change of DIP switch settings, this model can be field configured to On/Off or Floating Control. In addition to these settings, optional auxiliary switches are also available. Non-spring-return models are available in AC 24 V On/Off (Floating) Control, or DC 0 to 10 V Proportional Control. Models are available with or without optional auxiliary switches. Refer to the VA7800 Series Electric Valve Actuators Product Bulletin (LIT-12011474) for important product application information.

• Valve Actuator
• Spring Return
• 180 lb-in
• Spring Return
• Proportional
• Retracted Valve Stem
• 0-10 VDC Feedback
• 2 x SPDT
