V8-WP | Vane operated flow switch with weatherproof enclosure (phenylpolioxide). | Dwyer Instruments

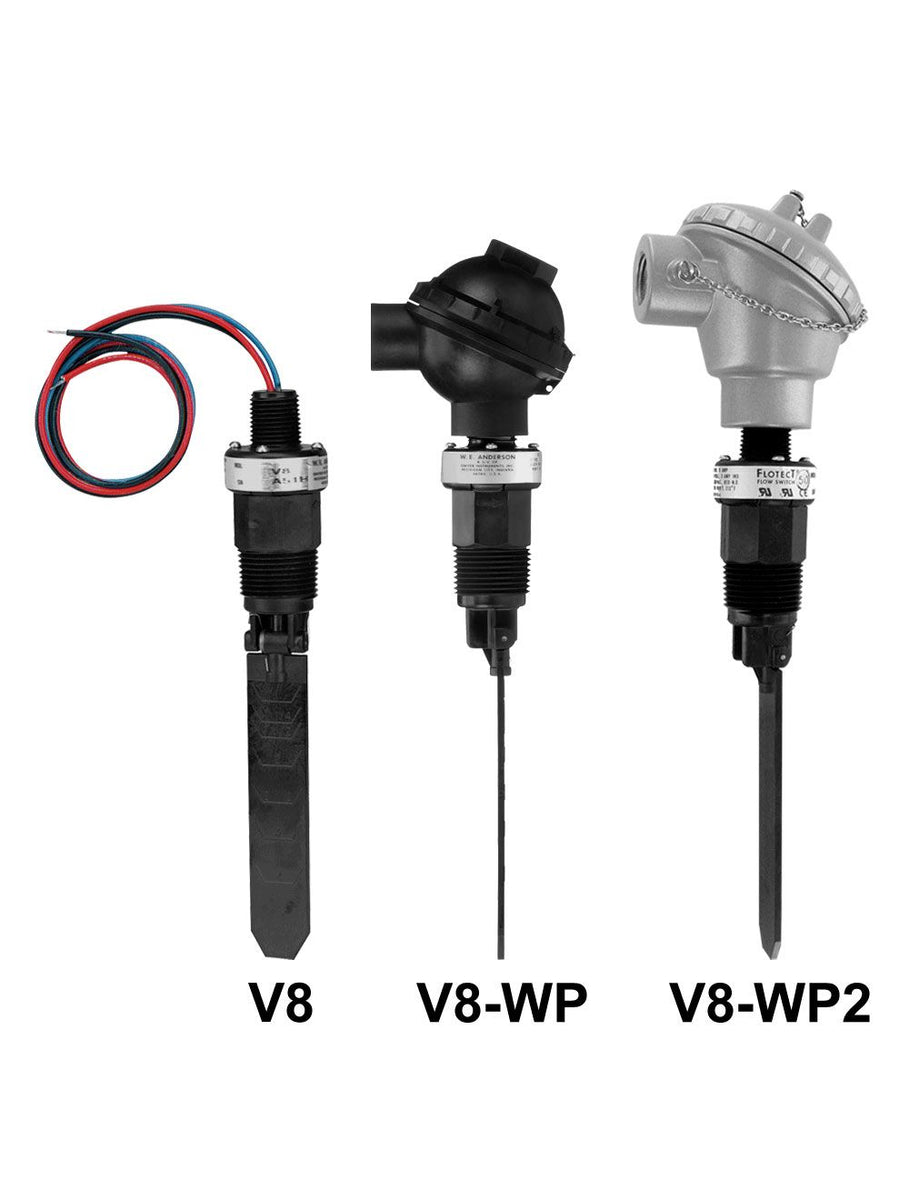

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to V8-WP

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments V8-WP Documents

Instruction Manual Series V8 Catalog Page More Info

Overview

Details for V8-WP

The Dwyer Instruments V8-WP is a 1" Weatherproof Vane-Operated Flow Switch designed for use in harsh industrial environments. Its rugged construction ensures reliable performance even in the most demanding conditions. Key Features: - Weatherproof enclosure for outdoor use - Vane-operated design for precise flow detection - Adjustable set point for customized flow monitoring - Suitable for use with air or gas media Benefits: - Protects equipment from damage due to excessive flow - Ensures efficient operation of systems by monitoring flow rates - Easy to install and maintain - Versatile design for various industrial applications Applications: - Monitoring airflow in ventilation systems - Detecting overpressure or underpressure in industrial processes - Protecting equipment from dry running or overcooling - Ensuring proper fluid levels in tanks or reservoirs Our HVAC supply store offers the Dwyer Instruments V8-WP at competitive prices with fast shipping. Trust us for all your industrial supply needs!

SERIES V8 FLOTECT® VANE OPERATED FLOW SWITCH

Field Adjustable – 1 to 6 Inch Pipe, Leak Proof Body, Chemical Resistance

The Series V8 Flotect® Vane Operated Flow Switches are ideal for protecting unattended equipment from damage or loss of production. This Series is available for installation in a 1 to 6" pipe with operating pressures are up to 150 psig (10 bar) and temperatures to 212°F (100°C).

Product Applications

Chemical processing
Air conditioning
Refrigeration
Heating systems
Cooling lines
Machinery
Liquid transfer systems
Water treatment
Food processing
Machine tools

Suitable for mounting in a protected environment with UL recognition as an industrial motor controller per UL standard 508
Increased product life with a free-swinging vane which attracts a magnet within the solid metal switch body, actuating a snap switch by means of a simple lever arm with no bellows, springs, or seals to fail
Excellent chemical resistance and leak proof body and vane constructed of tough durable polyphenylene sulfide
So

Specifications

Series: V8 FLOTECT® VANE OPERATED FLOW SWITCH
Category/Type: Flow
Type: Flow Switches
Series: V8 FLOTECT® VANE OPERATED FLOW SWITCH
Service: Compatible gases or liquids.
Wetted Materials: Vane and Body: Polyphenylene Sulfide (PPS); Pin and spring: 316 SS or Inconel®; Magnet: Ceramic 8.
Temperature Limit: 212°F (100°C).
Pressure Limit: 150 psig (10 bar).
Enclosure Rating: General purpose; WP/WP2 option is weatherproof.
Switch Type: SPDT snap switch; MV option: SPDT gold contact snap switch.
Electrical Rating: 5 A @ 125/250 VAC; 5 A resistive; 3 A inductive @ 30 VDC. MV option: 1 A @ 125 VAC; 1 A resistive; 0.5 A inductive @ 30 VDC.
Electrical Connections: 18 AWG 18" (460 mm) long.
Conduit Connection: 1/2" male NPT; 1/2" female NPT on WP and WP2.
Process Connection: 1" male NPT.
Mounting Orientation: Actuation/deactuation flow rates are based on horizontal pipe run and are nominal values. Unit cannot be used with vertical down flow.
Set Point Adjustment: Vane is trimmable.
Weight: 4.5 oz (0.13 kg).
Agency Approvals: CE; cURus.
