V7-WBS-30N | Flotect® vane operated flow switch | weatherproof | brass body | 1" NPT | trimmable vane. | Dwyer Instruments

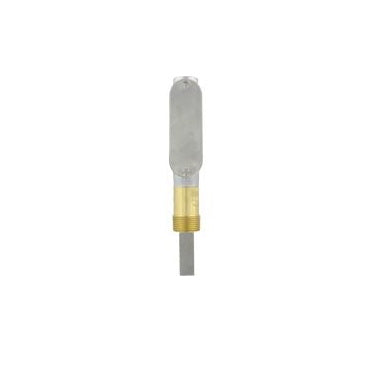

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to V7-WBS-30N

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments V7-WBS-30N Documents

V7 Series V7 Catalog Page More Info

Overview

Details for V7-WBS-30N

Dwyer Instruments V7-WBS-30N Flow Switch The Dwyer Instruments V7-WBS-30N is a reliable flow switch designed to monitor and control fluid flow in industrial applications. With its sturdy construction and precise operation, the V7-WBS-30N ensures efficient and dependable flow monitoring. Key Features: * High Pressure Capacity: Withstands pressures up to 250 PSI, making it suitable for various industrial systems. * SPDT Switch Output: Provides a single-pole double-throw switch output for versatile control options. * Adjustable Flow Range: Allows for customization of the flow rate to meet specific application requirements. * Compact Design: Its compact size enables easy installation in space-constrained areas. Applications: The Dwyer Instruments V7-WBS-30N Flow Switch is commonly used in industrial settings to: * Monitor and control fluid flow in pipelines and systems * Prevent damage to equipment by detecting loss of flow * Automate processes based on flow conditions Trust our HVAC supply store for Superior Products and Services: At our HVAC supply store, we understand the critical importance of reliable flow monitoring solutions. That's why we offer the Dwyer Instruments V7-WBS-30N Flow Switch at the most competitive prices. With fast shipping and exceptional customer support, we are your trusted partner for all your industrial supply needs. Contact us today to experience the our HVAC supply store difference!

SERIES V7 FLOTECT® VANE OPERATED FLOW SWITCH

Magnetic Linkage, UL Approved

The Series V7 Flotect® Flow Switch is an inexpensive range switch for use with compatible liquids to start or stop electronic operated equipment when flow or no-flow conditions occur. Design is standard weatherproof, meeting NEMA 4X.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Proof of boiler flow
Shuts down burner when air flow through heating coil fails
Protects pumps, motors and other equipment against low or no flow
Stops liquid cooled engines, machines and processing when coolant flow isinterrupted

Superior performance with magnetically-actuated switching design
Increased product life due to free-swinging vane, which attracts a magnet within the solid metal switch body to actuate a snap switch by means of a simple lever arm with no bellows, springs, or seals to fail
Meets application requirements with durable leak proof body machined from bar stock
Long operating life with robust vane design which is rigid and field trimmable for set point adjustment

Specifications

Series: V7 FLOTECT® VANE OPERATED FLOW SWITCH
Category/Type: Flow
Type: Flow Switches
Series: V7 FLOTECT® VANE OPERATED FLOW SWITCH
Service: Liquids compatible with wetted materials that are non-coating and noncrystallizing.
Wetted Materials: Vane: 301 SS; Process connection: Brass or 316 SS; Magnet: Ceramic; Other: 301; 302 SS.
Upper Body Material: Die cast aluminum.
Temperature Limits: -40 to 250°F (-40 to 121°C).
Pressure Limits: 250 psi (17.2 bar).
Enclosure Rating: Weatherproof; meets NEMA 4X (IP66).
Switch Type: SPDT snap switch.
Electrical Rating: 10 A @ 125; 250; 480 VAC; 1/8 hp @ 125 VAC; 1/4 hp @ 250 VAC.
Electrical Connections: 3 screw type; common; normally open and normally closed.
Conduit Connection: 1/2" NPSM.
Process Connection: 1" male NPT. Contact factory for optional tees.
Pipe Size: 1" to 4".
Mounting Orientation: Horizontal or vertical (actuation flow rates are based on horizontal pipe runs in the vertical position). Will not work in vertical pipe with down flow.
Set Point Adjustment: Vane is trimmable; see set point chart on Catalog page.
Weight: 1 lb 2 oz (500 g).
Agency Approvals: CE; UL.
