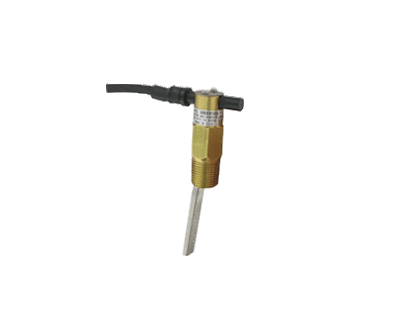

V10 | Mini-size flow switch | brass | normally open or closed. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to V10

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments V10 Documents

Instruction Manual Series V10 Catalog Page More Info

Overview

Details for V10

Dwyer Instruments V10 1/2" Mini Brass Flotect Flow Switch The Dwyer Instruments V10 is a compact and versatile flow switch designed to detect liquid flow rates. Its brass construction provides durability and corrosion resistance, while its compact size makes it suitable for various industrial applications. Key Features: - Brass construction for durability and corrosion resistance - Adjustable flow rate settings for customization - Compact size for easy installation - Mounts in any position for flexibility - CSA approved for safety and reliability Benefits: - Accurately detects liquid flow rates - Ideal for use with water, oil, and other compatible liquids - Suitable for various industrial applications - Easy to install and maintain - CSA approved for reliability and safety Applications: - Monitoring flow rates in cooling systems - Protecting pumps from dry running - Automating processes based on flow conditions - Ideal for use in chemical, food processing, and manufacturing industries Shop our HVAC supply store for the best prices and fast shipping on the Dwyer Instruments V10 1/2" Mini Brass Flotect Flow Switch. We offer a wide selection of industrial products and exceptional customer service to meet your needs.

SERIES V10 FLOTECT® MINI-SIZE FLOW SWITCH

Proof of Flow or No Flow in 1/2" to 2" Pipe, Cost Effective, Leak Proof Body, Weatherproof

The Series V10 Flotect® Mini-Size Flow Switches is designed to provide inexpensive, reliable monitoring of the presence or absence of flow in a system. This series is available for field installation in pipelines from 1/2 to 2" diameter and available in brass or 303 SS body.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Proving flow in boilers, hot water heaters, and chillers
Protects pumps, motors and other equipment against low or no flow
Automatically starts auxiliary pumps and engines

Superior performance with rugged magnetically-actuated switching design and hermetically sealed reed switch
Application flexibility with simple field switch adjustment allowing to toggle between normally open (NO) or normally closed (NC) with no change in the electrical connection
Save time and money on maintenance with electrical assembly that can be easily replaced without removing the unit from installation so that the process does not have to be shut down
Solves application needs with full size, field-trimmable stainless steel vane provided with removable template calibrated for brass or ductile iron reducing tees with forged steel straight tee/bushing combinations

Specifications

Series: V10 FLOTECT® MINI-SIZE FLOW SWITCH
Category/Type: Flow
Type: Flow Switches
Series: V10 FLOTECT® MINI-SIZE FLOW SWITCH
Service: Compatible gases or liquids.
Wetted Material: Vane: 301 SS; Body: Brass or 303 SS; Pin and Magnet: Ceramic 8.
Temperature Limit: 200°F (93°C).
Pressure Limit: Brass body: 1000 psig (69 bar); 303 SS body: 2000 psig (138 bar).
Enclosure Rating: Weatherproof; meets NEMA 4X (IP66).
Switch Type: SPST hermetically sealed reed switch. Field adjustable for normally open or normally closed.
Electrical Rating: 0.5 A @ 120 VAC; 1.5 A @ 24 VDC res.; 0.001 A @ 200 VDC res.
Electrical Connections: 18 AWG; 19" (483 mm) long; PVC jacket. Rated 221°F (105°C).
Process Connection: 1/2" male NPT standard. Contact factory for other options.
Mounting Orientation: Switch can be installed in any position but the actuation/deactuation flow rates are based on horizontal pipe runs and are nominal values.
Set Point Adjustment: Vane is trimmable.
Weight: 5.5 oz (0.16 kg).
Agency Approvals: CE; CSA; UR.
Switch Enclosure: Nylon.
