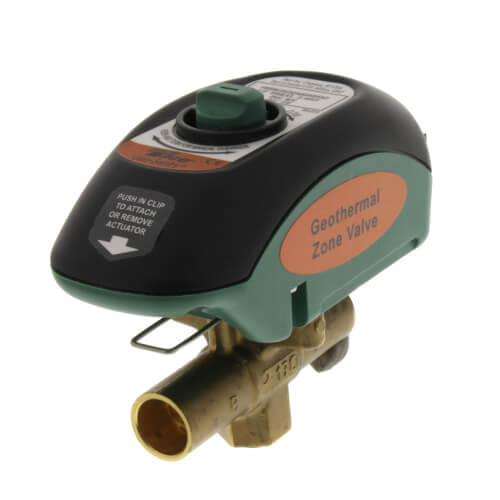

V050C2G2ZA024Q4A2 | 1/2" Geo-Sentry GeoThermal Zone Valve - Sweat, Normally Closed | Taco

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to V050C2G2ZA024Q4A2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Taco V050C2G2ZA024Q4A2 Documents

Datasheet Installation Instructions More Info

Overview

Details for V050C2G2ZA024Q4A2

1/2"swt N/C 24v Zone Valve[SKU: V050C2G2ZA024Q4A2] This Taco zone valve is a 1/2" sweat N/C 24v zone valve designed for use in hydronic heating and cooling systems. It features a normally closed (N/C) operation, meaning that it will only open when energized. The valve has a maximum working pressure of 150 PSI and a maximum temperature of 230Â°F. It is made of brass for durability and corrosion resistance. The valve is actuated by a 24v AC or DC signal. It has a manual override lever for convenient operation without power. The valve is also equipped with a flow indicator to show the direction of flow. This zone valve is ideal for use in residential and commercial applications. It is commonly used to control the flow of water to individual zones in a hydronic heating or cooling system. The valve can be used to isolate zones that are not in use, which can improve the efficiency of the system. Shop now for the best prices and fast shipping on this and other products at our HVAC supply store!

Zone Sentry Zone Valves

Taco Zone Sentry ^® Zone Valves provide on-off, normally open or normally closed control in closed hydronic systems. (See Geo-Sentry for open system application.) The valves can be used in a wide variety of heating and condensing cooling applications, primarily designed for use with baseboard, fan coils, radiators, convectors, air handlers, heat pumps and radiant applications.

Performance Data

Max. Operating Pressure: 300 PSI
Max. Shutoff Pressure: 125 PSI
Max. Ambient Temp.: 135˚F
Fluid Temp. Range: 20-220˚F (-7˚-104˚C)

Features

Up to 93% less energy usage
Universal Installation Orientation
Usable on Condensing Chilled Water Installations
12 valves on one 40VA transformer
Multi-Function LED
Quick Connect Wiring
Push button actuator replacement
Easy wire quick connections Manual override button
Positional indicator

Applications

Zone Sentry

Hydronic Heating and Cooling

Geo-Sentry^®

Open or Closed Loop Geothermal Systems with Water Source Heat Pumps

Potable Water Zone Sentry

Combination Domestic Water and Hydronic Heating System
Water Shut Off to a Potable System

The Taco Geo-Sentry Zone Valve enhances the overall performance of any geothermal system.The unique patented technology in the Geo-Sentryutilizes a microcircuit based logic to controla gear driven electronic actuator which drives a ball valve based body design. All this adds up toa geothermal zone valve that leads the industry in energy efficiency, flow capacity (Cv), shutoffpressure rating, ease of installation, diagnostic capability and the number of valves (12) that canbe used on a standard 40VA transformer.
